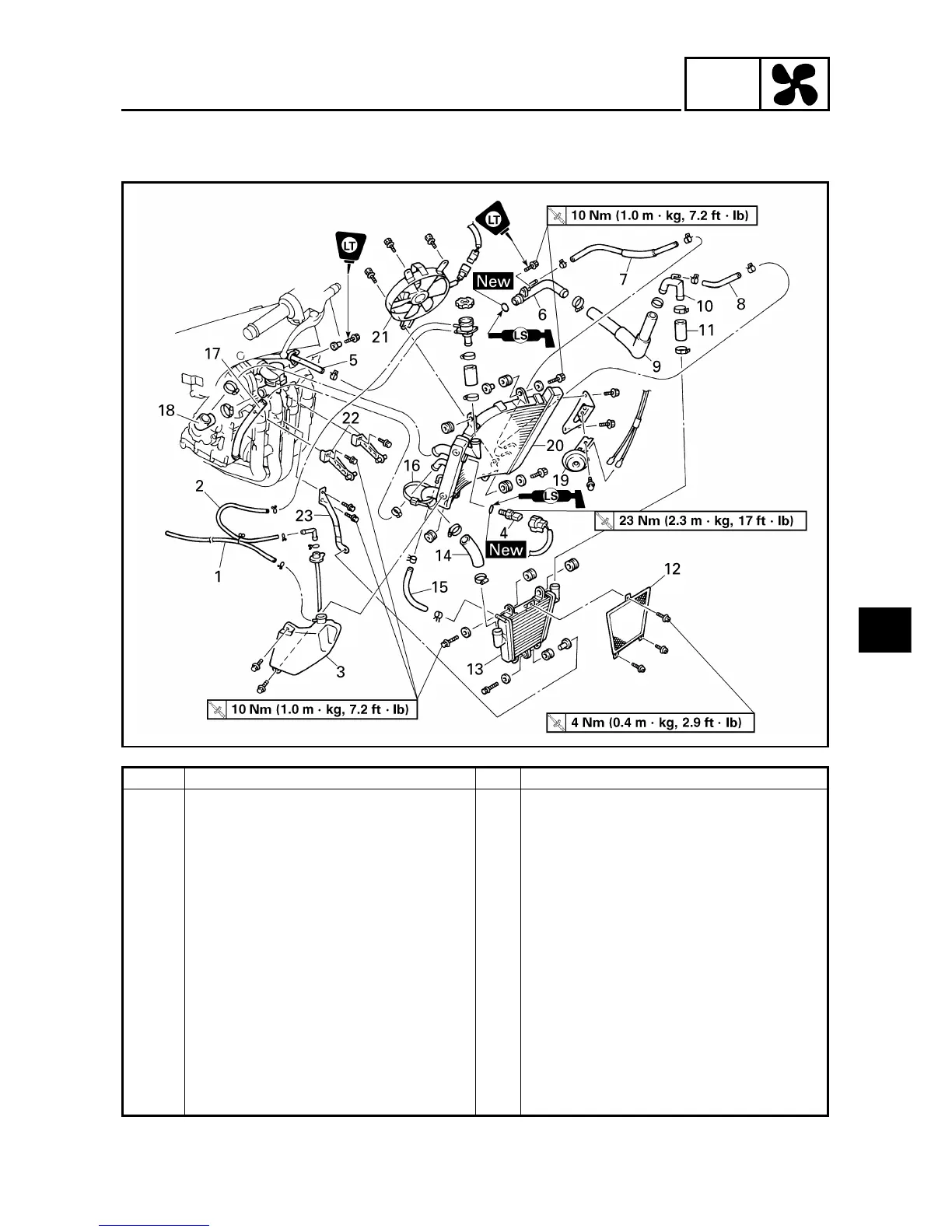

5 - 2
COOL
RADIATOR AND THERMOSTAT
Order
Job/Part
Q’ty
Remarks
11
Radiator outlet hose
1
12
Lower radiator guard
1
13
Lower radiator
1
14
Lower radiator breather hose
1
15
Radiator joint hose
1
16
Plastic band
1
17
Oil cooler outlet hose
1
Disconnect.
18
Radiator inlet hose
1
19
Horn
1
20
Upper radiator
1
21
Radiator fan
1
22
Upper radiator bracket
2
23
Lower radiator bracket
1
For installation, reverse the removal
procedure.
