SPEC
K Pickup coil lead
L Stator coil lead
M Speed sensor lead
N Sidestand switch lead
O Oil level switch lead
P Coolant reservoir breather hose
Q Wire harness
R Wire harness lead (to fall detection
switch coupler)
S Wire harness lead (to fuse box)
T Starter motor lead
U Neutral switch lead
V Ground lead
W Coolant temperature sensor coupler
X Throttle cable
Ã… Route the wire harness in front of the ignition coils.
ı Be sure that there is no slack in the tail/brake light lead
and rear turn signal leads below the rear fender panel.
Ç Align the portions of the wire harness, ground lead and
starter motor lead marked with white tape with the lead
holder.

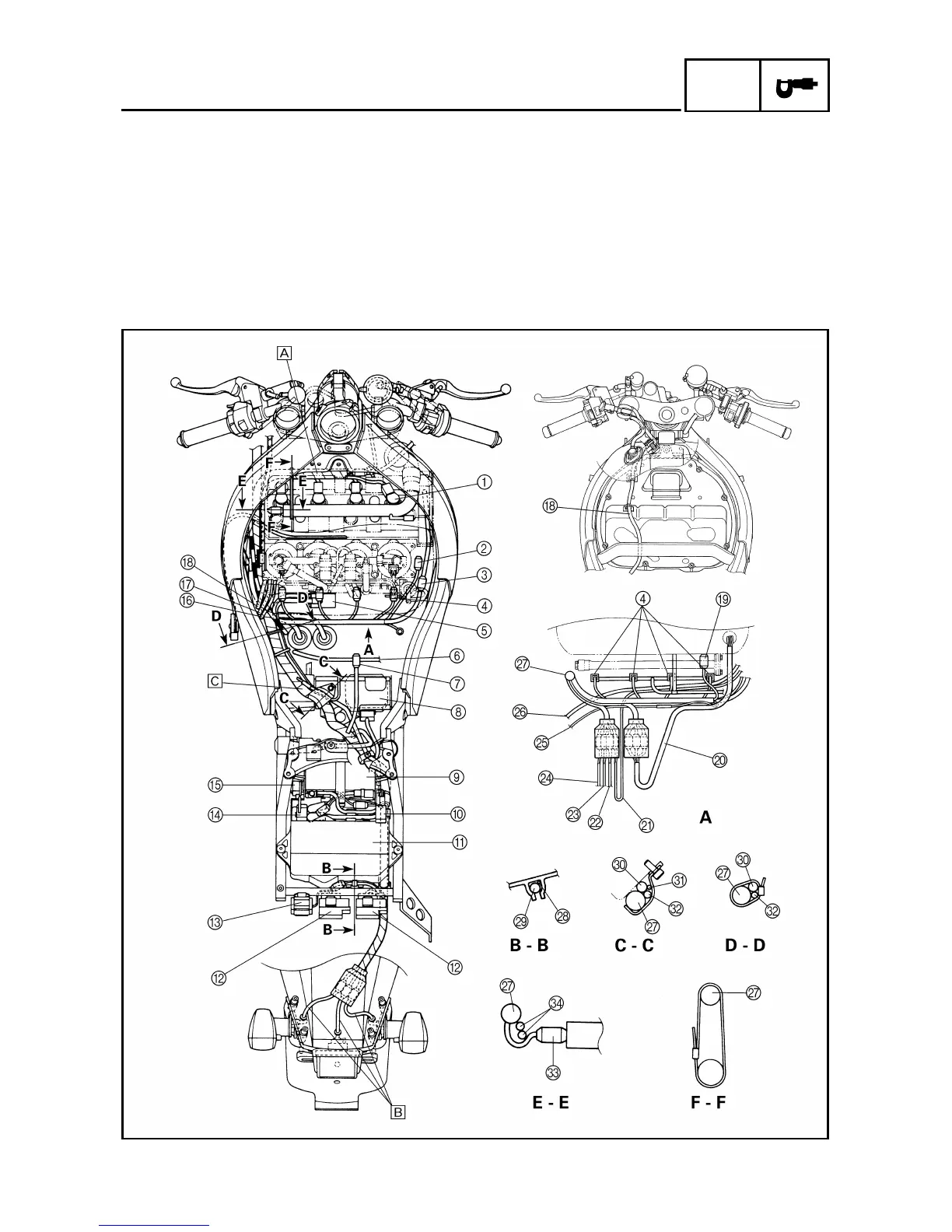

CABLE ROUTING
