YASKAWA E-7 Series User Manual

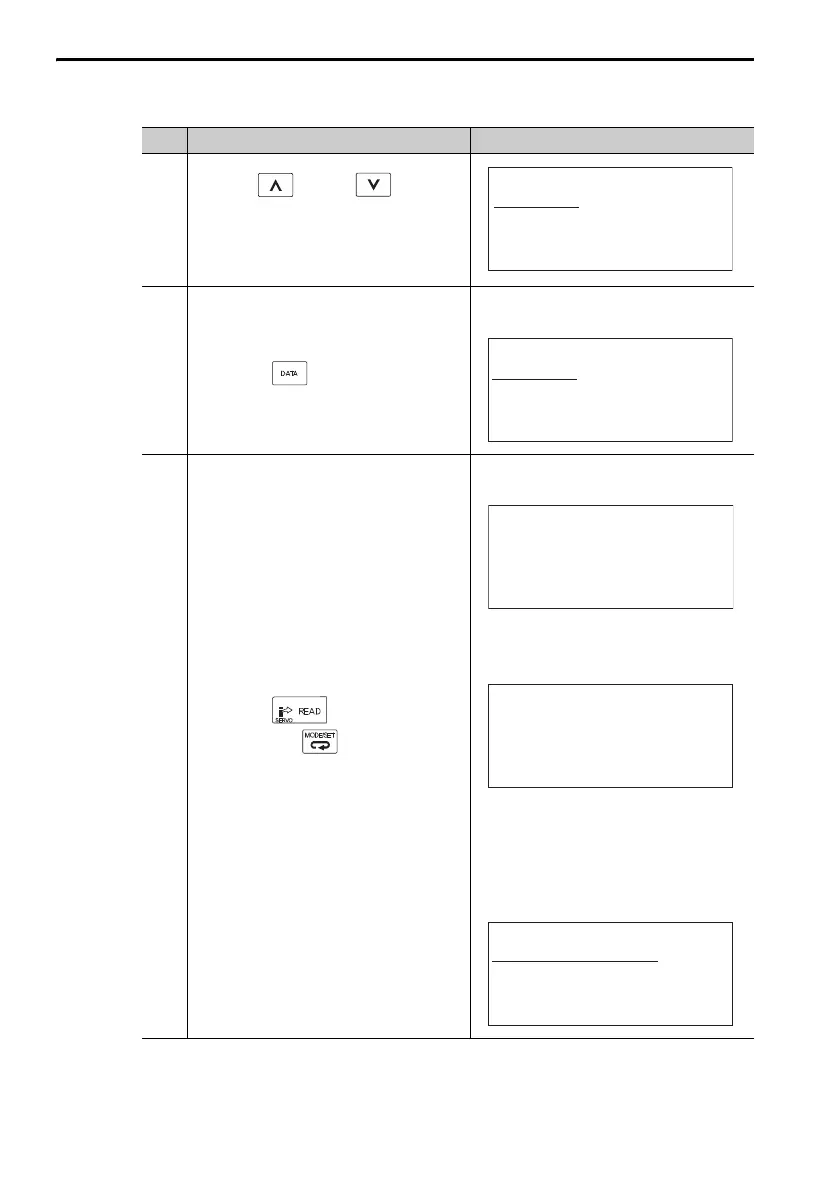

4.2 Operating Procedures in Parameter Copy Mode
4.2.1 Reading Parameters from the SERVOPACK (SERVO→OP)
4-4
3
Use the Key or Key to
select the parameter block (00 to
06) in the Digital Operator in which
to save the parameters from the
SERVOPACK.
4
Press the Key.
The Parameter Read Execution Dis-
play will appear.
5
Press the Key.
Note: Press the Key to cancel
reading the parameters. The
Parameter Block Selection Dis-
play will return.
Reading the parameters from the
SERVOPACK will start.
When the parameters have been
read from the SERVOPACK, Com-
pleted will be displayed.
After Completed is displayed, the
Parameter Block Selection Display
will appear.
The SERVOPACK model number of
the selected block (“SGD7S-R70” in
this example) will be displayed.
Continued on next page.
Continued from previous page.
Step Operation Result
00:
****
01:
****
02:
****
0 3 :
****
1:BB S ERVO
→
OP
00:
****
S tart : [READ]
Return: [MODE]
1:BB S ERVO
→
OP
00:
****
Reading
Parameters ..
1:BB S ERVO
→
OP
<<S ERVO>>
00:
****
Completed
1:BB S ERVO
→
OP
00:S GD7S -R70
01:
****
02:
****
0 3 :
****
1:BB S ERVO
→
OP
