2.1 Parameters
2.1.1 Setting Parameters
2-2
2.1 Parameters
This section describes how to set parameters in the Parameter/Monitor
Mode.
There are two types of notations used for parameters, one for parame-
ters that require selection of a function and one for parameters that
require numeric settings.
Note: This manual does not provide details on parameters. Refer to the manual for your
SERVOPACK.
2.1.1 Setting Parameters

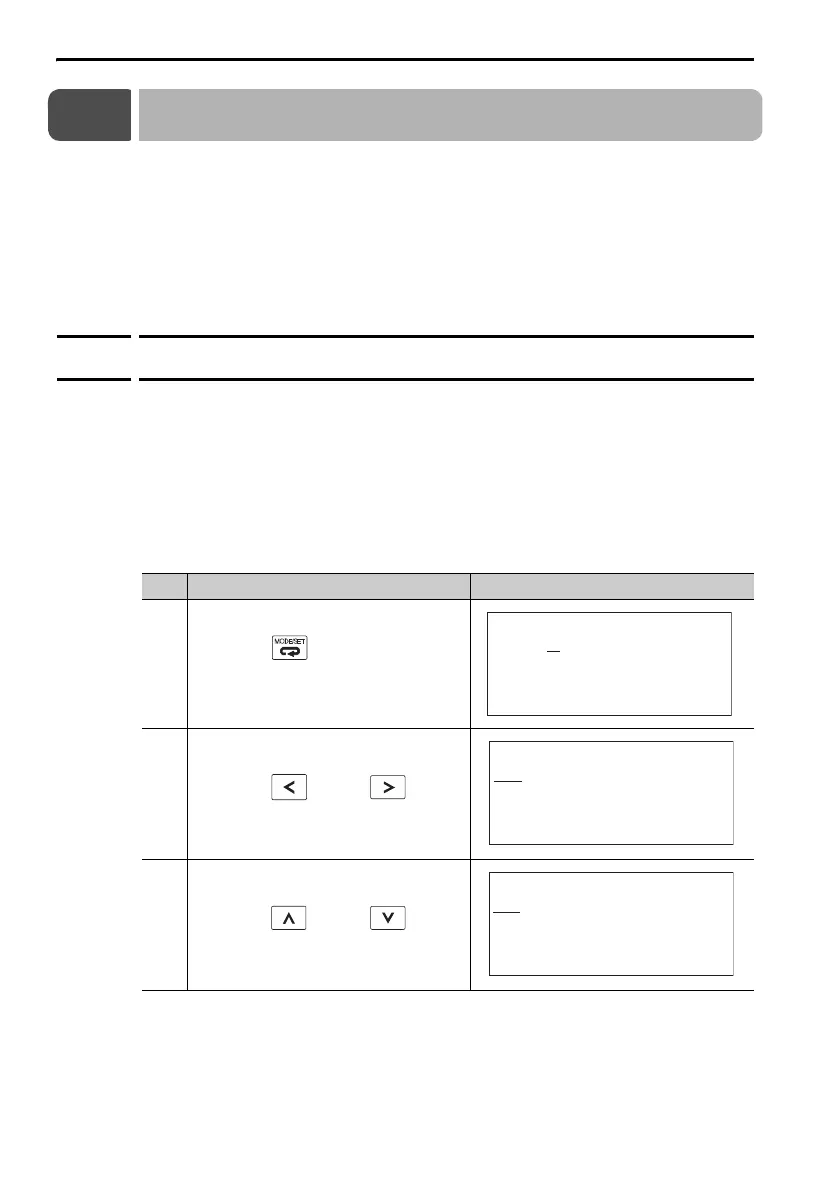

Operation Example 1: Setting a Parameter
That Requires Selection of a Function
Some parameters, such as Pn000 (Basic Function Selections 0) and
Pn001 (Application Function Selections 1) require you to set each digit.
The following example shows how to set Pn000 = n.X (Rotation
Direction Selection) to 1 (reverse rotation).
Step Operation Result
1
Press the Key to display the
Parameter/Monitor Mode Main
Menu.
2
Press the Key or Key to
move the cursor to Un.
3
Press the Key or Key to
change from Un to Pn.
Continued on next page.
1:BB
PRM/MON
Un000=0 00000
Un002=0 00000
Un008=0 0000000000
Un00D=0 0000000000
1:BB
PRM/MON
Un000=0 00000
Un002=0 00000
Un008=0 0000000000
Un00D=0 0000000000
1:BB
PRM/MON
Pn000=n.0000
Un002=0 00000
Un008=0 0000000000
Un00D=0 0000000000
