3.2 Operating Procedures for Utility Functions
3-7
3
Utility Functions
3.2 Operating Procedures for Utility Functions

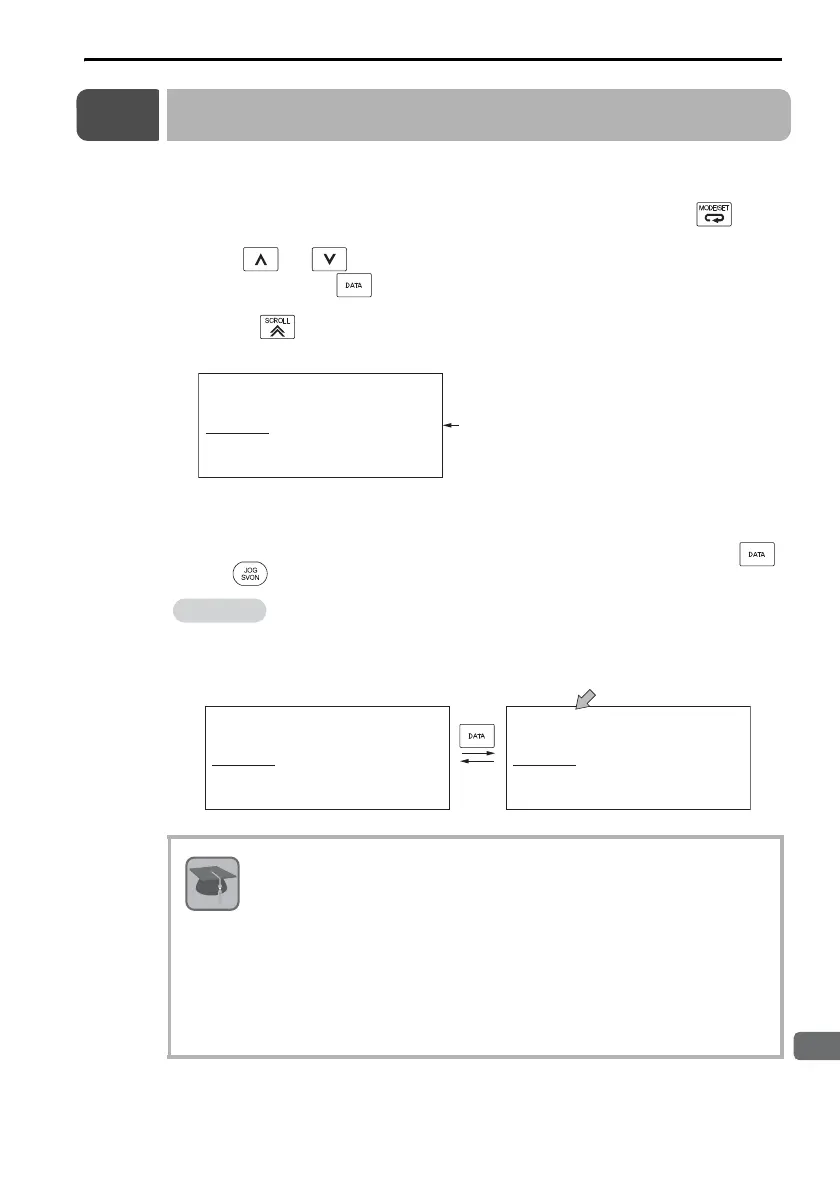

This section provides the operating procedures for the Utility Mode exe-
cution displays that you can select from the Utility Mode Main Menu.
The Utility Mode Main Menu is displayed when you press the Key
in Parameter/Monitor Mode.
Use the or Key to select the utility function you want to exe-
cute and press the Key to change to the execution display for that
function.
Press the Key to scroll four lines at a time. (Three lines will be
skipped and the fourth line will be displayed.)
If you select a utility function that cannot be executed, the status display
will flash NO-OP for approximately one second when you press the
Key or Key.
If you attempt to jog (Fn002) when the parameters are write-
prohibited (i.e., when Fn010 is set to 0001), the display will
change as shown below.
The following term definitions are used in this section.
Servo Ready
• The main circuit power supply is ON.
• There are no alarms.
• There is no hard wire base block (HWBB).
• If an absolute encoder is being used, outputting the position data
from the absolute encoder to the host controller has been com-
pleted when the SEN (Absolute Data Request) input signal turns
ON (high level). However, this condition does not apply to utility
functions for which the host controller is not used.
The selected utility function will ash.
1:BB
FUNCTION
Fn207:V-Monitor
Fn000:Alm His tory
Fn002:JOG
Fn003 :Z-S earch
Utility Mode Main Menu Display
Example
After
approx.
1 second
Flashing
1:BB
FUNCTION
Fn000:Alm His tory
Fn002:JOG
Fn003 :Z-S earch
Fn004:Program JOG
NO-OP
FUNCTION
Fn000:Alm His tory
Fn002:JOG
Fn003 :Z-S earch
Fn004:Program JOG
