Transportation
3
- 16
3.2 Shipping brackets and bolts
The robot is equipped with transport securing devices and shipping bolts to reduce external
forces to a minimum during transport.
• The shipping brackets and bolts are painted yellow.
• The shipping bracket will be fastened by 2 screws M12.

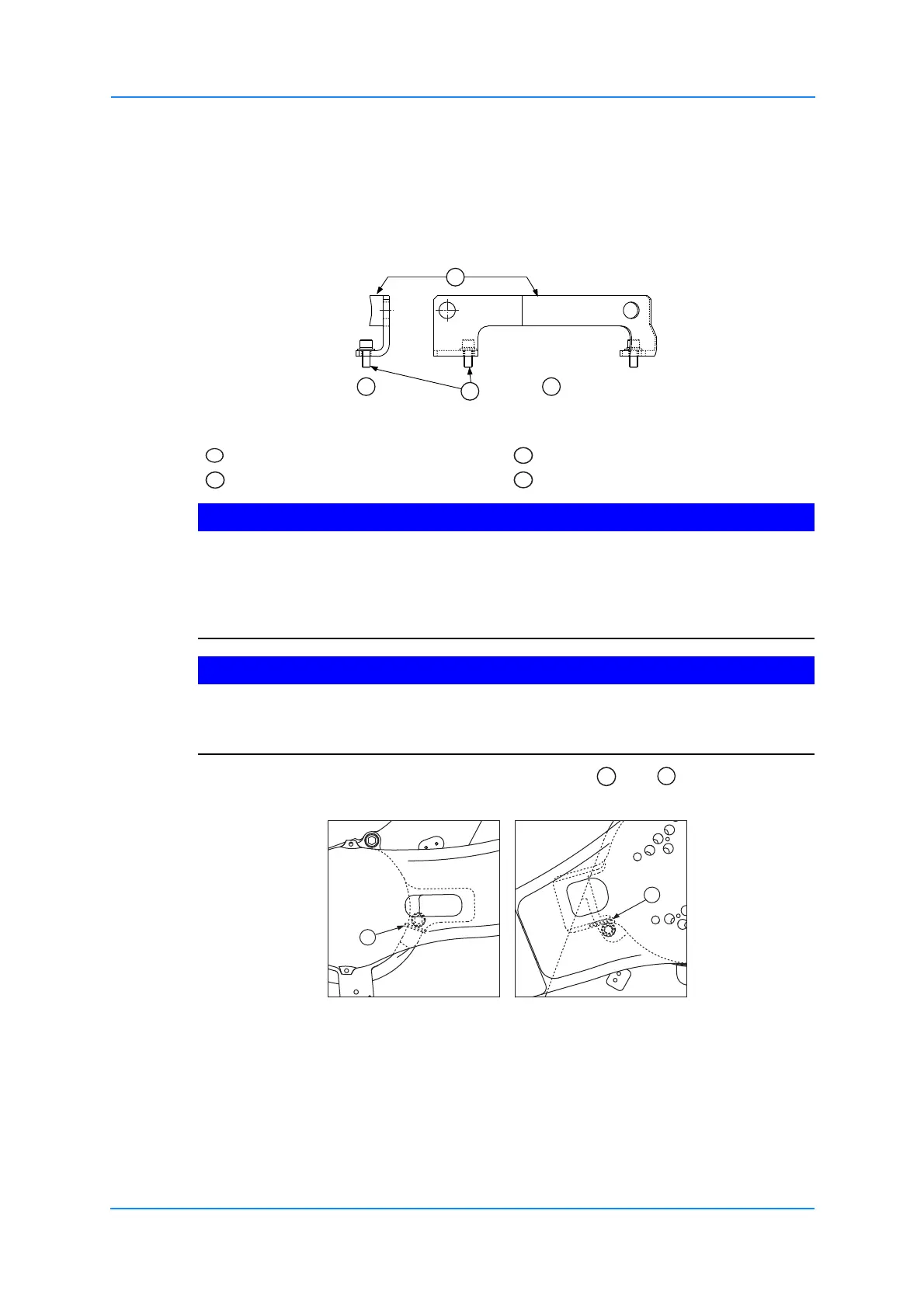

Fig. 3-3: Shipping brackets and bolts
NOTICE
Before turning ON the power, check to be sure that the shipping bolts and brackets are
removed.
After removing the transport securing devices and the shipping bolts, keep them at a safe
place. The transport securing devices and shipping bolts will be required again if the system
is transported again.
NOTICE
Before turning ON the power, check to be sure that the rubber buffer are removed.
After removing the rubber pads, keep them at a safe place. The rubber pads will be required
again if the system is transported again.
For transportation purposes the robot is fitted in the range and with a rubber buffer
(see Fig. 3-4: "Damping material for transport").
Fig. 3-4: Damping material for transport
Shipping brackets 2 screws M12 x 30
Side view Front view
1
3
2
4
B
A
B
