Parts lists
11
- 92
11.6 Gear unit

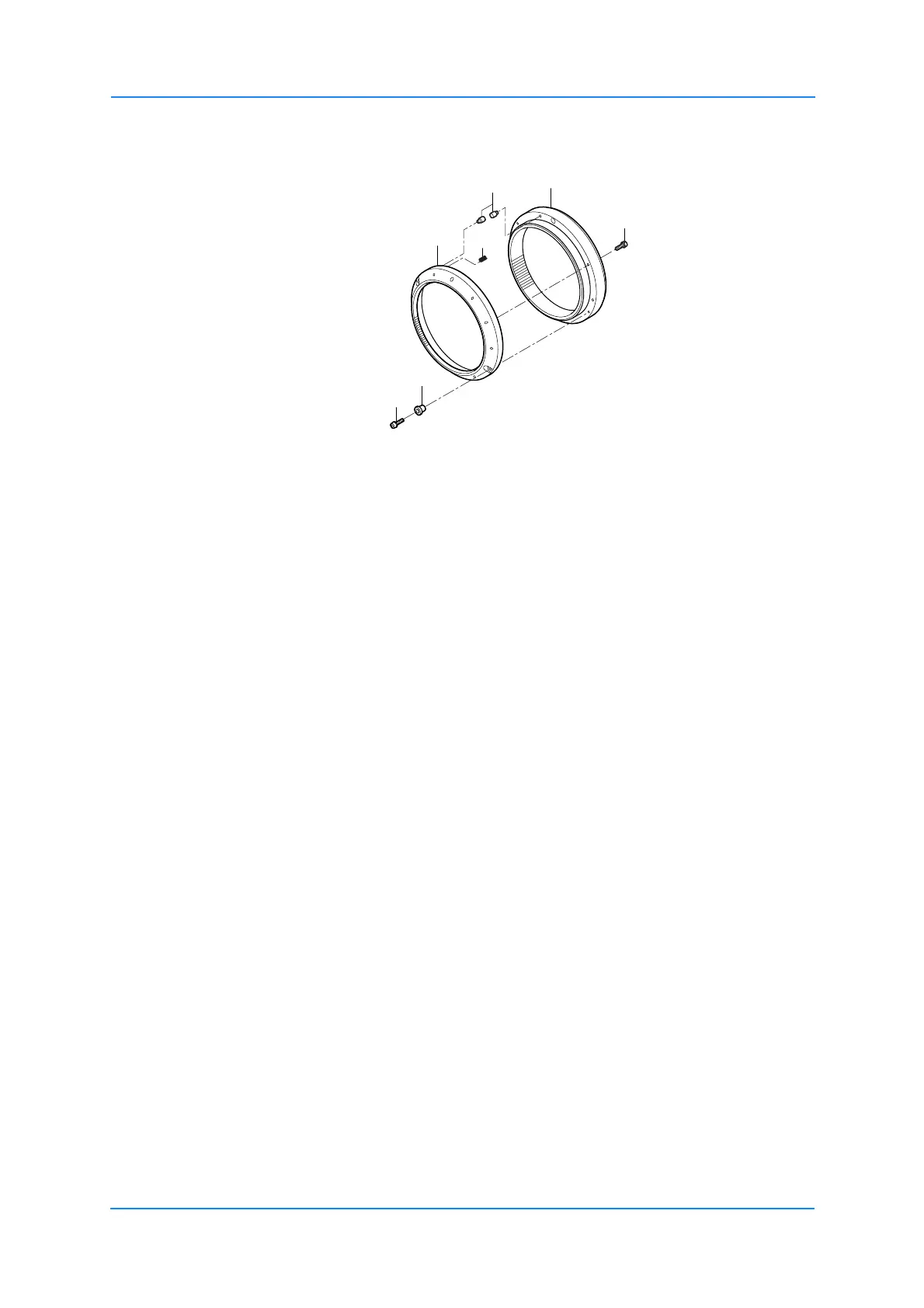

Fig. 11-6: Gear unit
Tab. 11-6: Parts list gear unit
No. DWG no. Designation Pcs
6001 HW1303251-1 Gear box 1
6002 HW1303252-1 Gear box 1
6003 HW1404051-1 Sleeve 2
6004 HW1404050-1 Pin 6
6005 WB5-30 Clamping sleeve 3
6006 M3 x 12 Screw 2
6007 M3 x 10 Screw 2
6006
6003
6002
6001
6004
6005
6007
