11.2 L-axis unit

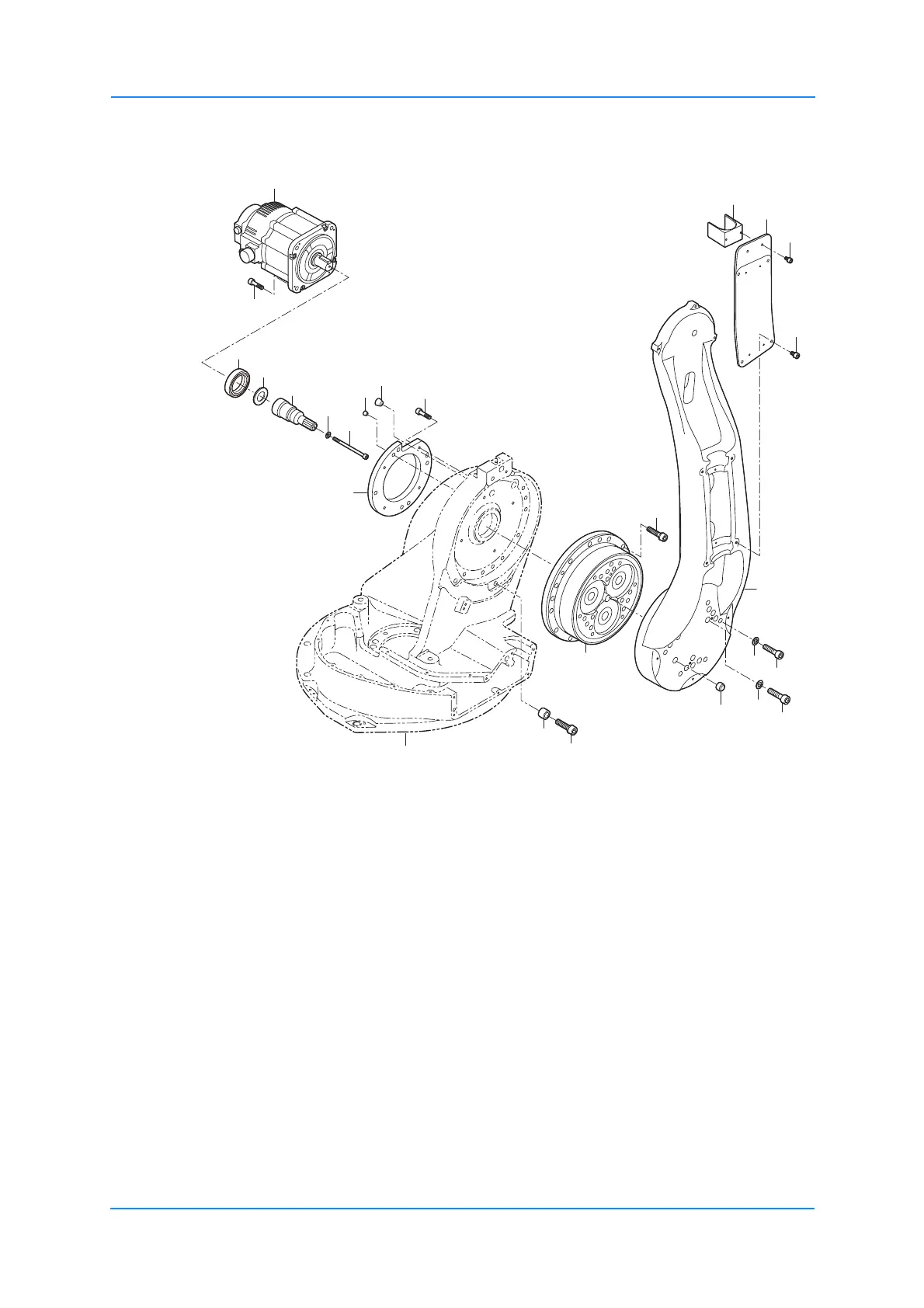

Fig. 11-2: L-axis drive
No. DWG no. Designation Pcs
2001 HW1100696-1 L-arm 1
2002 HW1304336-1 Pinion 1
2003 M6 x 90 Screw 1
2004 2H-6 Washer 1
2005 M12 x 40 Screw 12
2006 2H-12 Washer 12
2007 M10 x 35 Screw 6
2008 2H-10 Washer 6
2009 M12 x 35 Screw 2
2010 HW1405429-1 Washer 2
2011 HW0387753-G Gear box 1
2012 M10 x 40 Screw 16
2013 HW0401506-1 Washer 1
2019
2020
2016
2021
2003
2004
1001
2002
2013
2017
2014
2022
2015
2018
2005
2006
2008
2007
2009
2012
2011
2010
2023
2025
2001
2024
