5.2.2 Connecting the robot control
Attach the robot cables in the following order.
1. Connect the encoder cable (1BC) X11 connection X-1 to the robot controller.
2. Connect the power cable (2BC) X21 connection X-2 to the robot controller.
Make sure that you hear the locking clips snap into place (clicking sound).

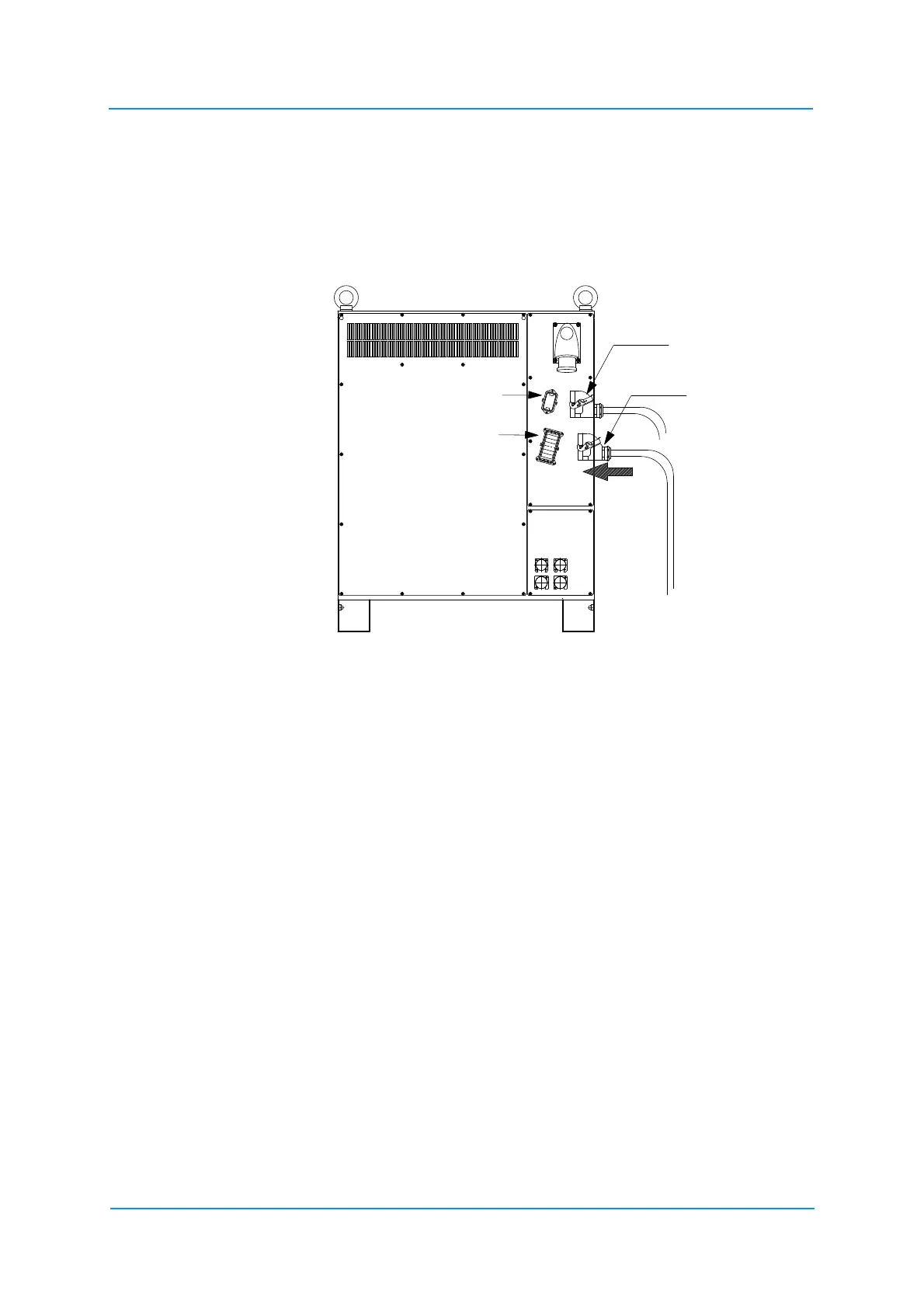

Fig. 5-5: Connection robot control
X 11
X 21
X -1
X -2
