9.3.4 Grease replenishment/exchange for R-axis gear
Fig. 9-12: R-axis gear
9.3.4.8 Refill grease
See figure "R-axis gear diagram".
NOTICE
Follow the instructions in the chapter 9.3 "Instructions on grease replenishment" on page
58.
1. Remove plug from grease exhaust port and grease inlet port.
2. Install lubricating nipple to grease inlet port.
3. Squeeze grease by grease gun in grease inlet port
– Amount of grease: 12 cm³ / approx. 10 g
4. Move R-axis for a few minutes to discharge excess grease.
5. Wipe away excess grease with a cloth. Remove the grease zerk from the grease inlet
port, and reinstall the plug. Before mounting the plug, apply Teroson Plast sealing
compound (material no. 143813) to thread part.

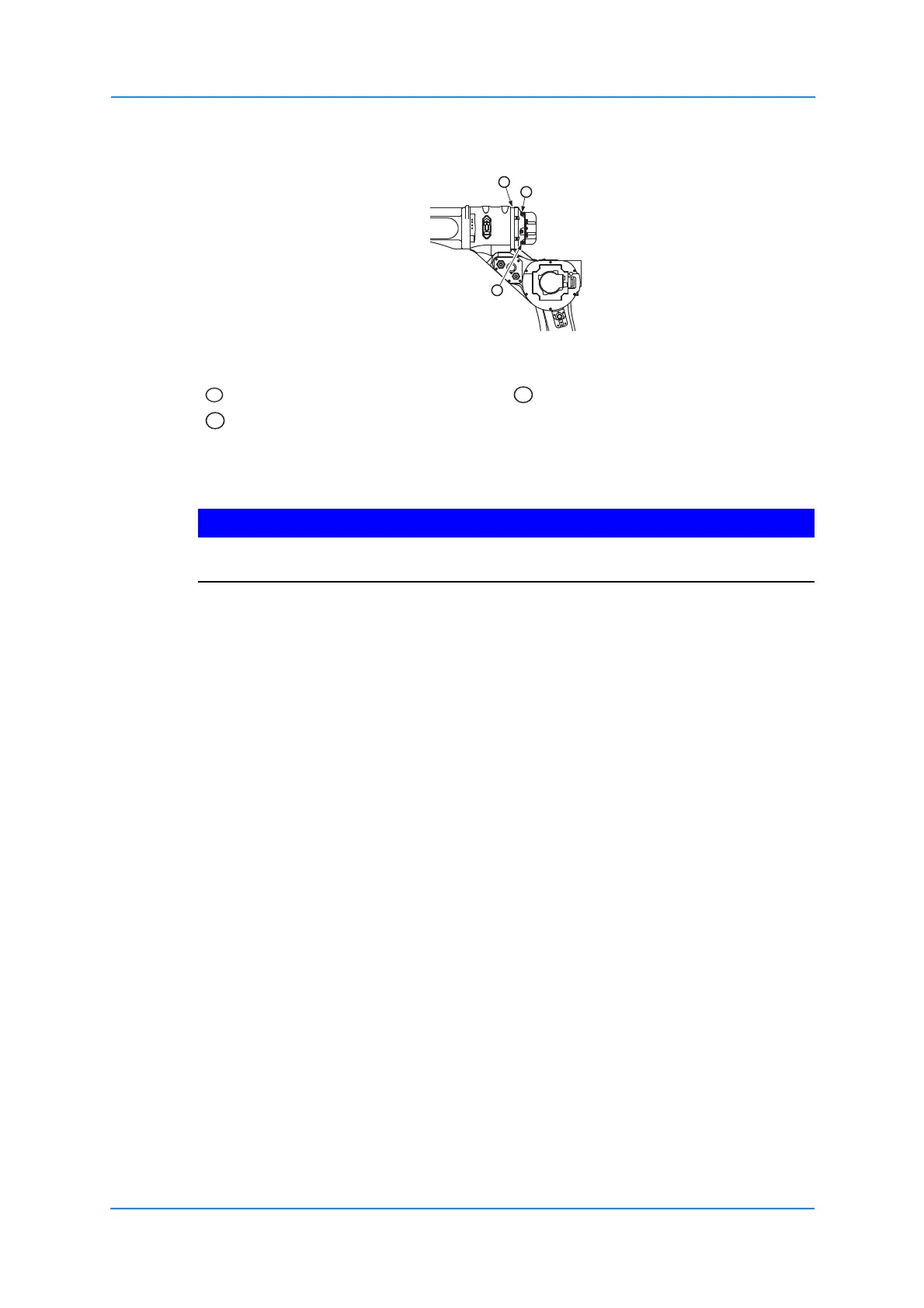

R-axis gear Grease exhaust port (plug)
Grease inlet port (lubricating nipple)
1
3
2
