9-3
IM WT5000-02EN

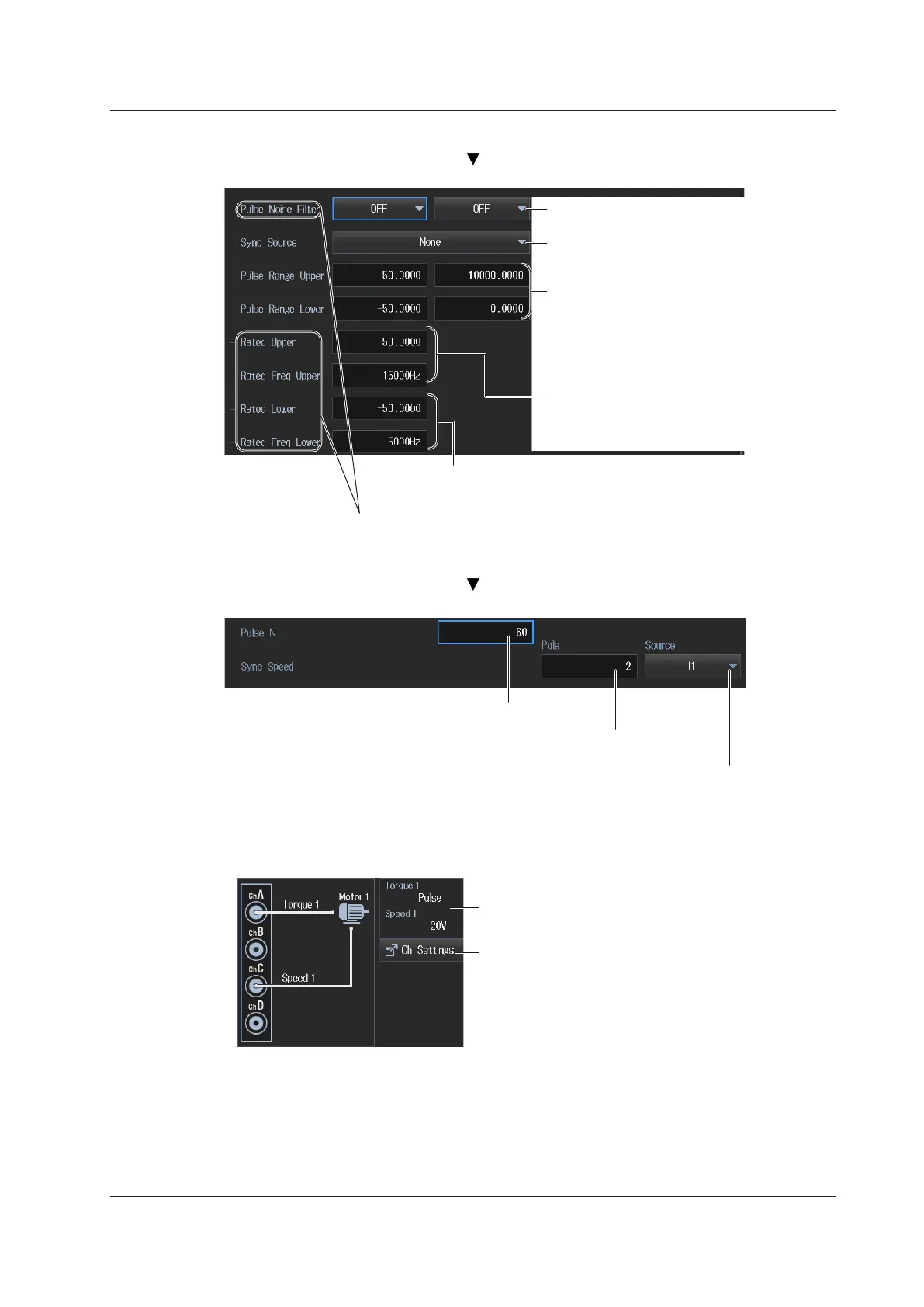

Drag the screen to display the bottom area of the setup screen.
Set the pulse noise filter
(OFF, 1MHz, 100kHz, 10kHz).
(Speed column)(Torque column) (Pm column)
Set the sync source
(U1 to U7, I1 to I7, Ext Clk, Z Phase1 (ch D),
Z Phase3 (ch H), None).
Set the upper and lower limits of the torque or
rotating speed.
Torque: –10000.0000 to 10000.0000 [N•m]
Rotating speed: –99999.9999 to 99999.9999 [rpm]
* You can set the torque when Sense Type is set
to Pulse.
Set the upper limit of the torque signal.
Rated value : –10000.0000 to 10000.0000 [N•m]
Positive rated pulse frequency: 1 to 100000000 [Hz]
Set the lower limit of the torque signal.
Rated value : –10000.0000 to 10000.0000 [N•m]
Negative rated pulse frequency: 1 to 100000000 [Hz]
Drag the screen to display the bottom area of the setup screen.
(Speed column)(Torque column) (Pm column)
Set the number of pulses per revolution of the revolution signal
(1 to 9999).
Set the number of motor poles that will be used to compute
the synchronous speed (1 to 99).
Set the voltage or current whose frequency will be measured to compute
the synchronous speed (U1 to U7, I1 to I7).
You can set these when SenseType is set to Pulse.
Single Motor (Speed:Analog)
4.
Tap Ch Settings. A single motor (revolution signal: analog) setup screen appears.
Ch Settings button
Shows the input ranges of the torque signal and revolution
signal.
The torque signal appears when Sense Type is set to Analog.
9.1 Configuring Motor Evaluation and Auxiliary Input Settings
To Next Page
