ABB ACS310 User Manual

182 Actual signals and parameters
0.0…500.0 Hz Minimum value in Hz.

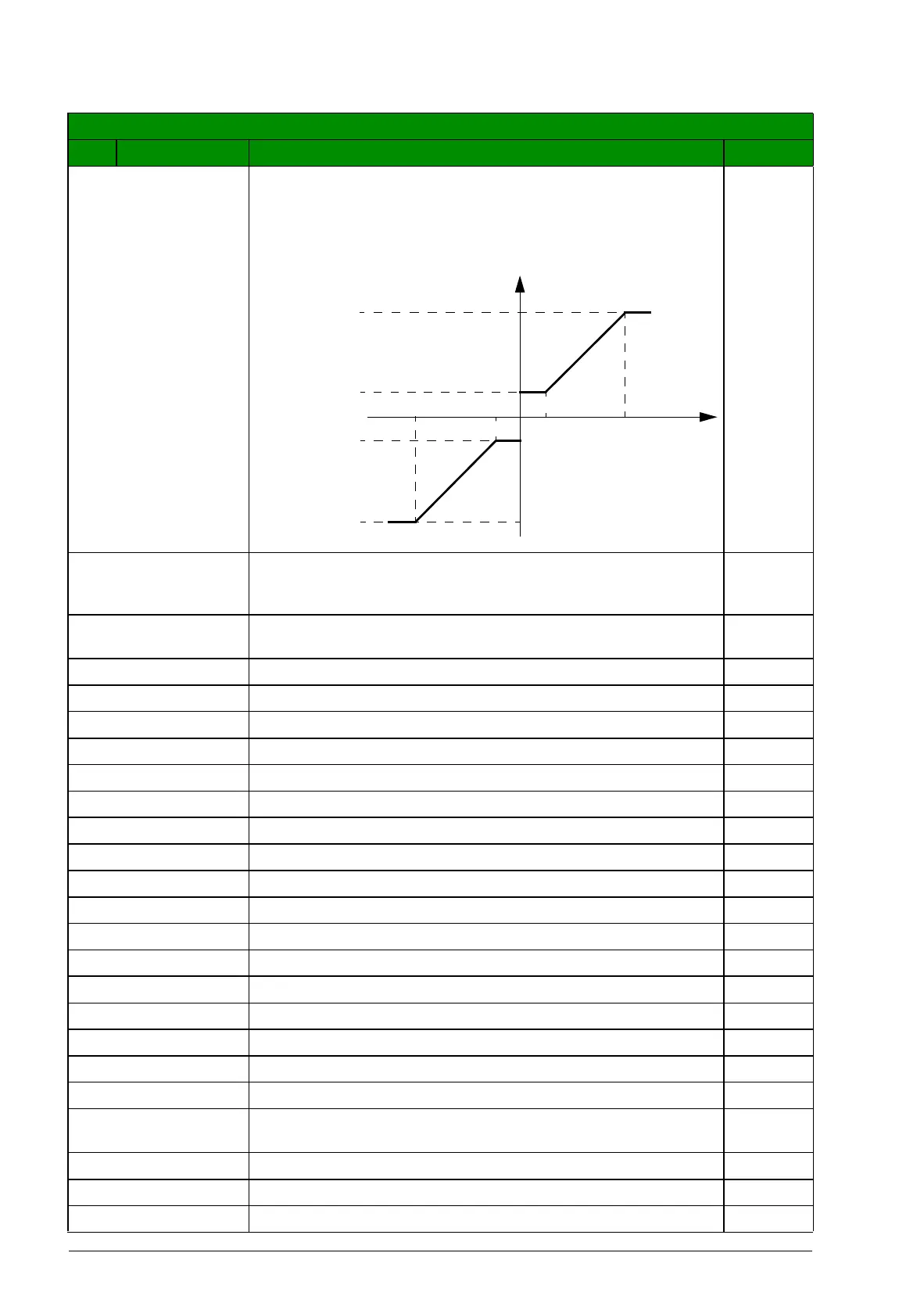

Example: Analog input AI1 is selected as the reference
source (value of parameter 1103 is AI1). The reference
minimum and maximum correspond to the 1301 MINIMUM
AI1 and 1302 MAXIMUM AI1 settings as follows:
1 = 0.1 Hz
1105 REF1 MAX Defines the maximum value for external reference REF1.
Corresponds to the maximum setting of the used source
signal.
E: 50.0 Hz
U: 60.0 Hz
0.0…500.0 Hz Maximum value in Hz. See the example for parameter 110 4
REF1 MIN.
1 = 0.1 Hz
1106 REF2 SELECT Selects the signal source for external reference REF2. AI2
KEYPAD See parameter 1103 REF1 SELECT.0
AI1 See parameter 1103 REF1 SELECT.1
AI2 See parameter 1103 REF1 SELECT.2
AI1/JOYST See parameter 1103 REF1 SELECT.3
AI2/JOYST See parameter 1103 REF1 SELECT.4
DI3U,4D(R) See parameter 1103 REF1 SELECT.5
DI3U,4D See parameter 1103 REF1 SELECT.6
COMM See parameter 1103 REF1 SELECT.8
COMM+AI1 See parameter 1103 REF1 SELECT.9
COMM*AI1 See parameter 1103 REF1 SELECT.10
DI3U,4D(RNC) See parameter 1103 REF1 SELECT.11
DI3U,4D(NC) See parameter 1103 REF1 SELECT.12
AI1+AI2 See parameter 1103 REF1 SELECT.14
AI1*AI2 See parameter 1103 REF1 SELECT.15
AI1-AI2 See parameter 1
103 REF1 SELECT.16
AI1/AI2 See parameter 1103 REF1 SELECT.17
PID1OUT PID controller 1 output. See parameter groups
40 PROCESS PID SET 1 and 41 PROCESS PID SET 2.
19
KEYPAD(RNC) See parameter 1103 REF1 SELECT.20
KEYPAD(NC) See parameter 1103 REF1 SELECT.21
DI4U,5D See parameter 1103 REF1 SELECT.30
All parameters
No. Name/Value Description Def/FbEq
REF (Hz)
REF1 MAX
(1105)
REF1 MIN
(1104)
-REF1 MIN
(1104)
-REF1 MAX
(1105)
AI1 signal (%)
1302 1301
1301 1302
Aotewell Ltd
www.aotewell.com
Industry Automation
HongKong|UK|China
sales@aotewell.com
+86-755-8660-6182

ABB ACS310 Specifications

General

Frequency	50/60 Hz
IP Rating	IP20
Control Method	Scalar control
EMC Filter	Built-in
Supply Voltage	200 to 240 V, 380 to 480 V
