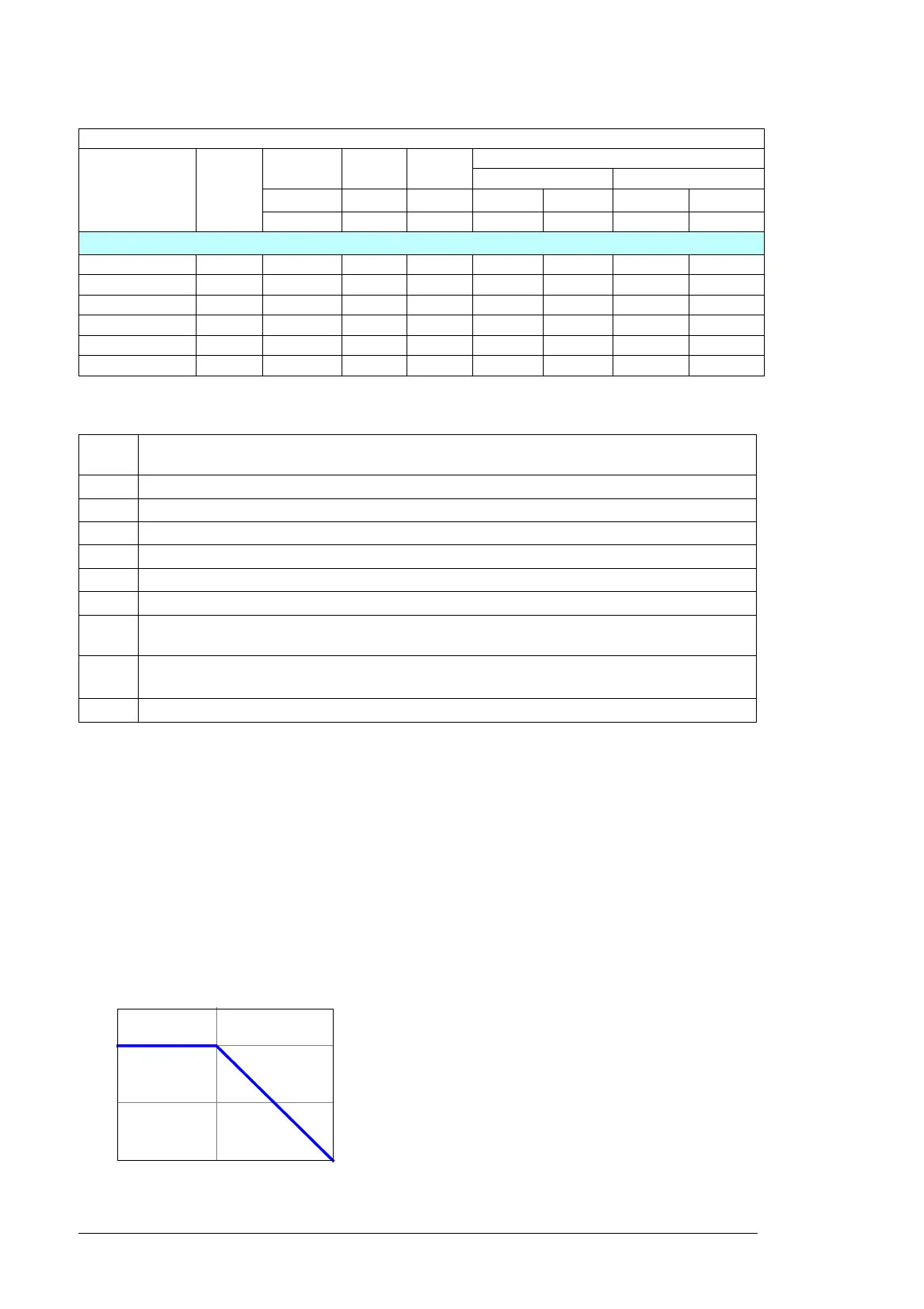

118 Technical data
Definitions
Output derating
Ambient temperature derating
In the temperature range +40…50 °C (+104…122 °F), the rated output current is derated
by 2% for every added 1 °C (3.6 °F). The output current can be calculated by multiplying
the current given in the rating table by the derating factor (k):
NEMA RATINGS
Drive type
ACS580-07-
Frame
size
Input
rating
Max.
current
App.
power
Output ratings
Light-duty use Heavy-duty use
I
1
I
max
S
N
I
Ld
P
Ld
I
Hd
P
Hd
AAkVAAhpAhp
U
N
= 480 V
0495A-4 R10 483 560 343 483 400 361 300
0575A-4 R10 573 730 398 573 450 414 350
0640A-4 R10 623 730 443 623 500 477 400
0715A-4 R11 705 850 495 705 600 566 450
0810A-4 R11 807 1020 561 807 700 625 500
0870A-4 R11 807 1020 603 807 700 625 500
3AXD00000586715
U
N
Nominal voltage of the drive. For the input voltage range, see section Electrical power network
specification on page 125.
I
1
Nominal rms input current
I
2
Nominal output current (available continuously with no over-loading)
S Apparent power (no overload)
P
N
Typical motor power in no-overload use
I
Ld
Continuous rms output current allowing 10% overload for 1 minute every 5 minutes.
P
Ld
Typical motor power in light-overload use
I
max
Maximum output current. Available for two seconds at start, then as long as allowed by drive
temperature.
I
Hd
Continuous rms output current allowing 50% overload for 1 minute every 10 minutes.
*** Continuous rms output current allowing 40% overload for 1 minute every 10 minutes.
P
Hd
Typical motor power in heavy-duty use
Note 1: The ratings apply at an ambient temperature of 40 °C (104 °F).
Note 2: To achieve the rated motor power given in the table, the rated current of the drive must be higher
than or equal to the rated motor current.
The DriveSize dimensioning tool available from ABB is recommended for selecting the drive, motor and gear
combination.
T
1.00
0.90
+40 °C
+104 °F
+50 °C
+122 °F
k
0.80
