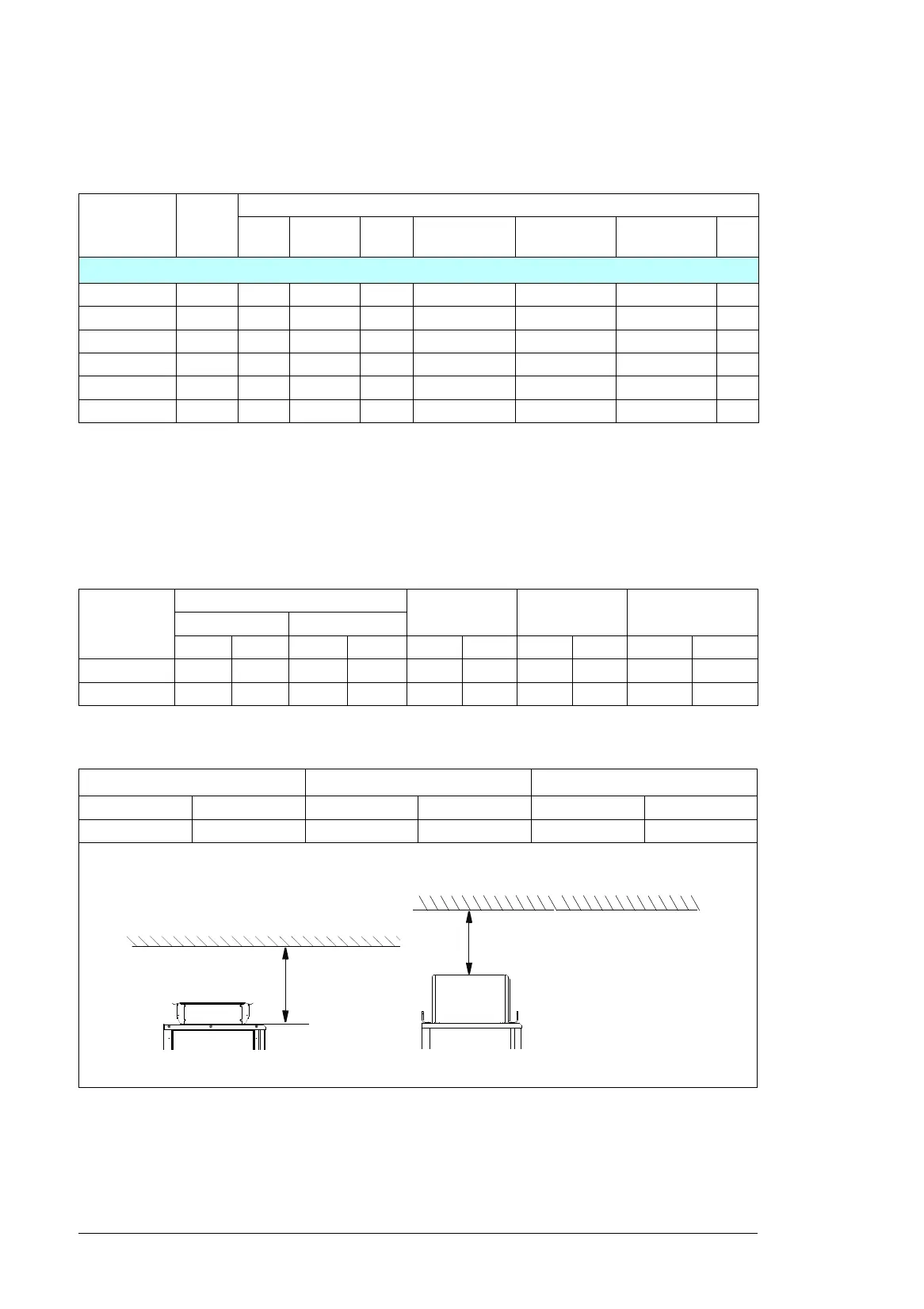

120 Technical data
Fuses (IEC)
The drive is equipped with aR fuses listed below.
Note 1: See also Implementing thermal overload and short-circuit protection on page 58.
Note 2: Fuses with higher current rating than the recommended ones must not be used. Fuses with lower
current rating can be used.
Note 3: Fuses from other manufacturers can be used if they meet the ratings and the melting curve of the fuse
does not exceed the melting curve of the fuse mentioned in the table.
Dimensions and weights
Free space requirements
Drive type
ACS580-07-
Input
current
(A)
Ultrarapid (aR) fuses (one fuse per phase)
A
A
2
s
V Manufacturer Type Type with
option +F289
Size
U
N
= 400 V
0495A-4 495 800 465000 690 Bussmann 170M6412 170M6412 3
0575A-4 575 900 670000 690 Bussmann 170M6413 170M6413 3
0640A-4 640 1000 945000 690 Bussmann 170M6414 170M6414 3
0715A-4 715 1250 1950000 690 Bussmann 170M6416 170M6416 3
0810A-4 810 1250 1950000 690 Bussmann 170M6416 170M6416 3
0870A-4 870 1400 2450000 690 Bussmann 170M6417 170M6417 3
Frame size Height Width Depth Weight
IP42 IP54
mm in. mm in. mm in. mm in. kg lb
R10 2145 84.45 2315 91.14 830 32.68 698 27.48 530 1170
R11 2145 84.45 2315 91.14 830 32.68 698 27.48 580 1280
Front Side
Above
*
mm in. mm in. mm in.
150 5.91 - - 400 15.75
*
measured from the base plate of the cabinet top. Note: 320 mm (12.28 in.) is required for fan replacement
of IP54 cabinets.
> 400 mm (15.75”)
> 320 mm (12.28 in.)
IP42 IP54
