Attachment points

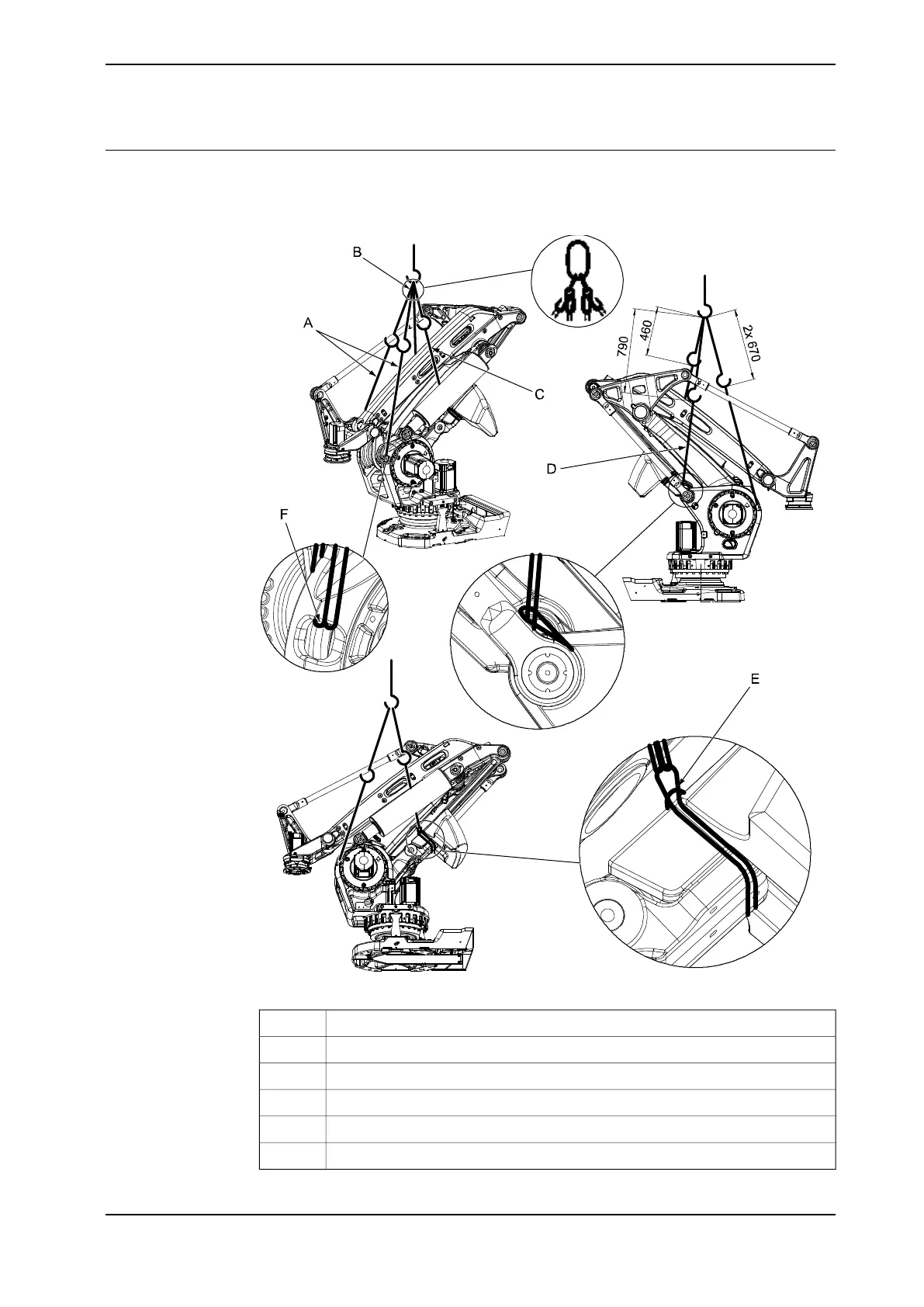

This figure shows how to attach the roundslings to the robot.
The illustration is similar with the label attached to the robot’s frame.
xx1000001091
Roundslings, 2 m (2 pcs). Lifting capacity: 2,000 kg.A
Chain slings with shortener (4 pcs). Lifting capacity: 4,000 kg.B
Roundsling, 1.5 m. Lifting capacity: 2,000 kg.C
Roundsling, 1 m. Lifting capacity: 2,000 kg.D
Roundsling, 1 m. Lifting capacity: 2,000 kg.E
Note! No sharp edges!F
3HAC039838-001 Revision: C 69
© Copyright 2013 ABB. All rights reserved.
2 Installation and commissioning
2.3.2 Lifting robot with roundslings
Continued
