3.3.10 Inspecting, signal lamp (option)

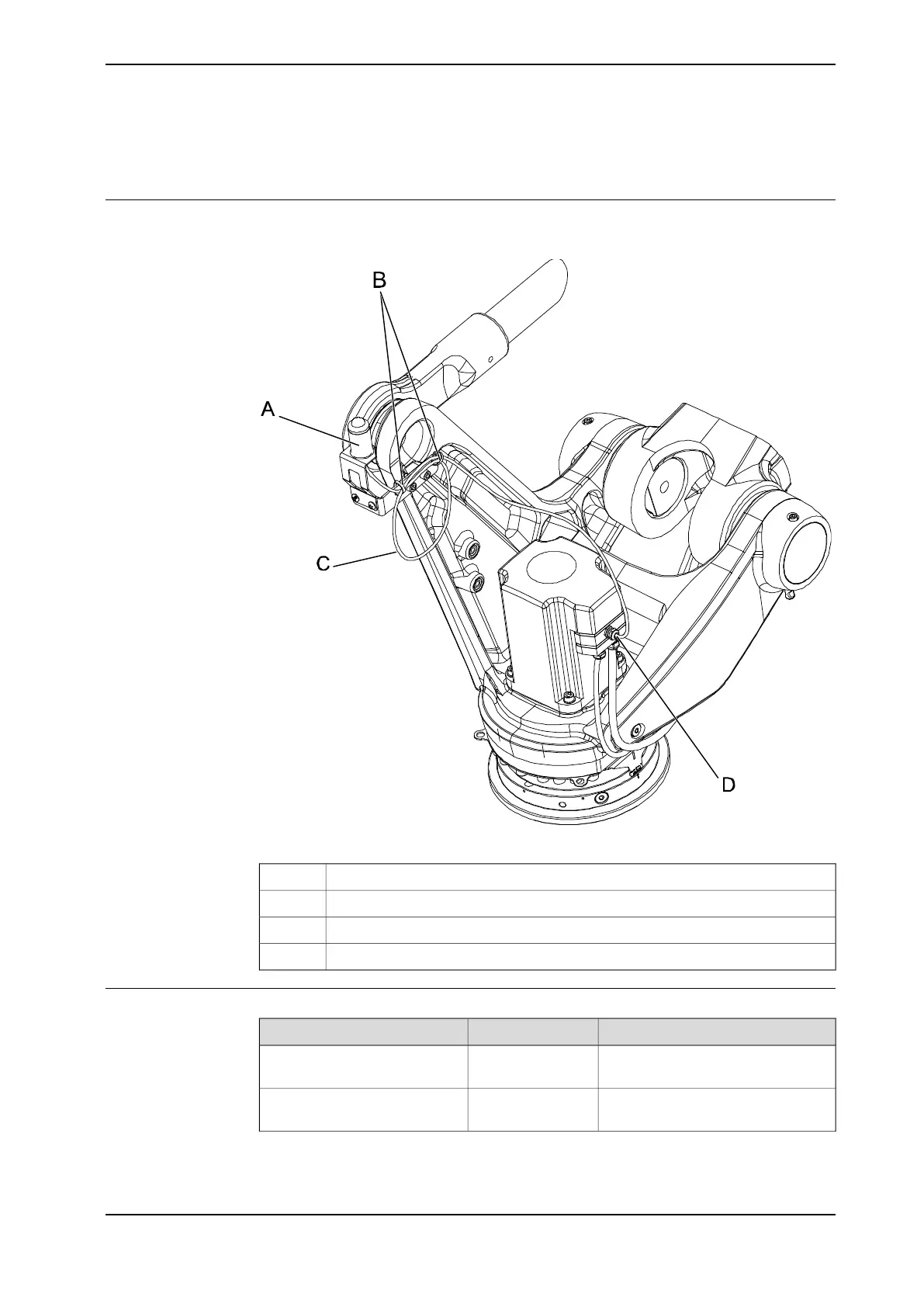

Location of signal lamp
The signal lamp is located as shown in this figure.
xx1000001372
Signal lampA
Cable straps, outdoor (2 pcs)B
CableC
Connection point to cable glandD
Required equipment
NoteArt. no.Equipment, etc.
To be replaced if damage is detected.See Spare parts on
page 355.
Signal lamp kit
Content is defined in section Stand-
ard tools on page 351.
-Standard toolkit
