ABB IRB 760 User Manual

2.3.7 Orienting and securing the robot
General
This section details how to orient and secure the robot to the base plate in order
to run the robot safely.

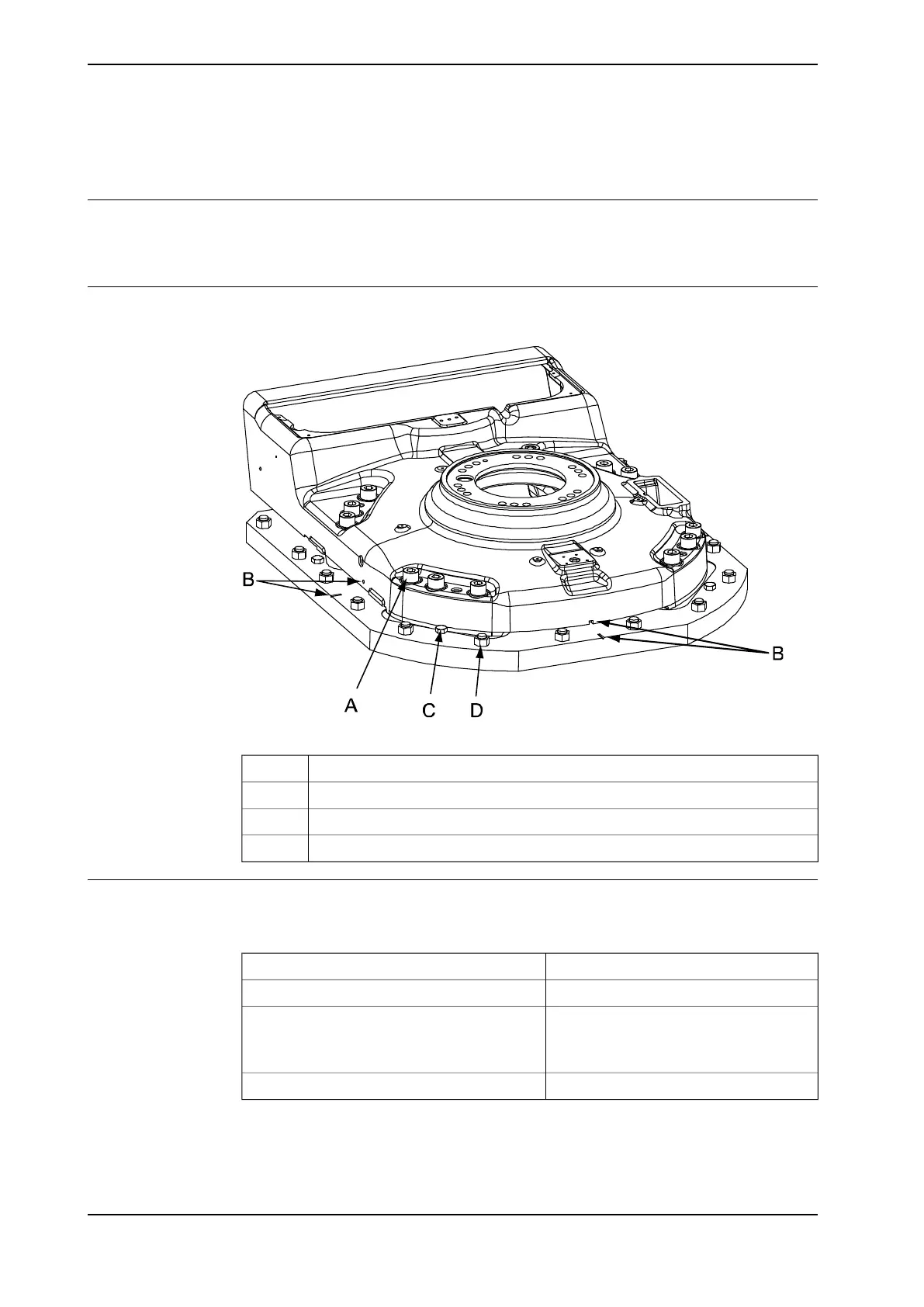

Illustration, robot fitted to base plate
This illustration shows the robot base fitted to the base plate.
xx0100000107
Robot attachment bolts and washers, 12 pcs (M24 x 140)A
Orienting grooves in the robot base and in the base plateB
Levelling screwsC
Base plate attachment screwsD
Attachment screws
The table below specifies the type of securing screws and washers to be used for
securing the robot to the base plate/foundation.
M24 x 140Suitable screws, lightly lubricated:
Quality 8.8Quality:
Thickness: 4 mmSuitable washer:
Outer diameter: 44 mm
Inner diameter: 25 mm
725 NmTightening torque:
Continues on next page
80 3HAC039838-001 Revision: C
© Copyright 2013 ABB. All rights reserved.
2 Installation and commissioning
2.3.7 Orienting and securing the robot
