3.3 Inspection activities
3.3.1 Inspecting, oil level gearbox axis 1
Location of gearbox

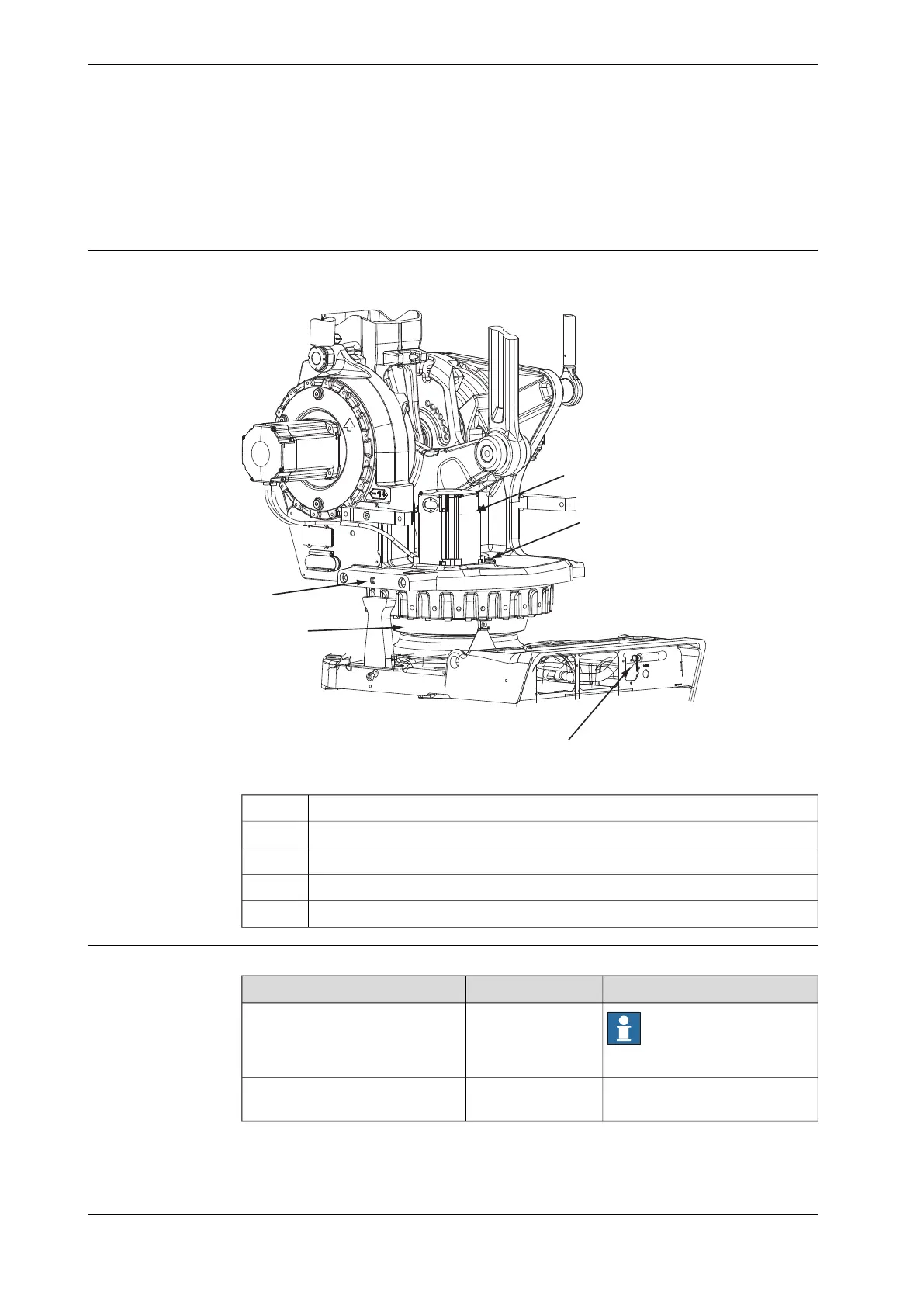

The axis 1 gearbox is located between the frame and base. See oil plugs in figure.
A
B
C
D
E
xx0500002479
Oil plug, inspectionA
Gearbox, axis 1B
Oil plug fillingC
Motor, axis 1D
Drain hose (Behind cover)E
Required equipment
NoteArt. no.Equipment
Note
Do not mix with other oils!
See Type and
amount of oil in
gearboxes on
page 127.
Lubricating oil
Content is defined in section
Standard tools on page 351.
-Standard toolkit
