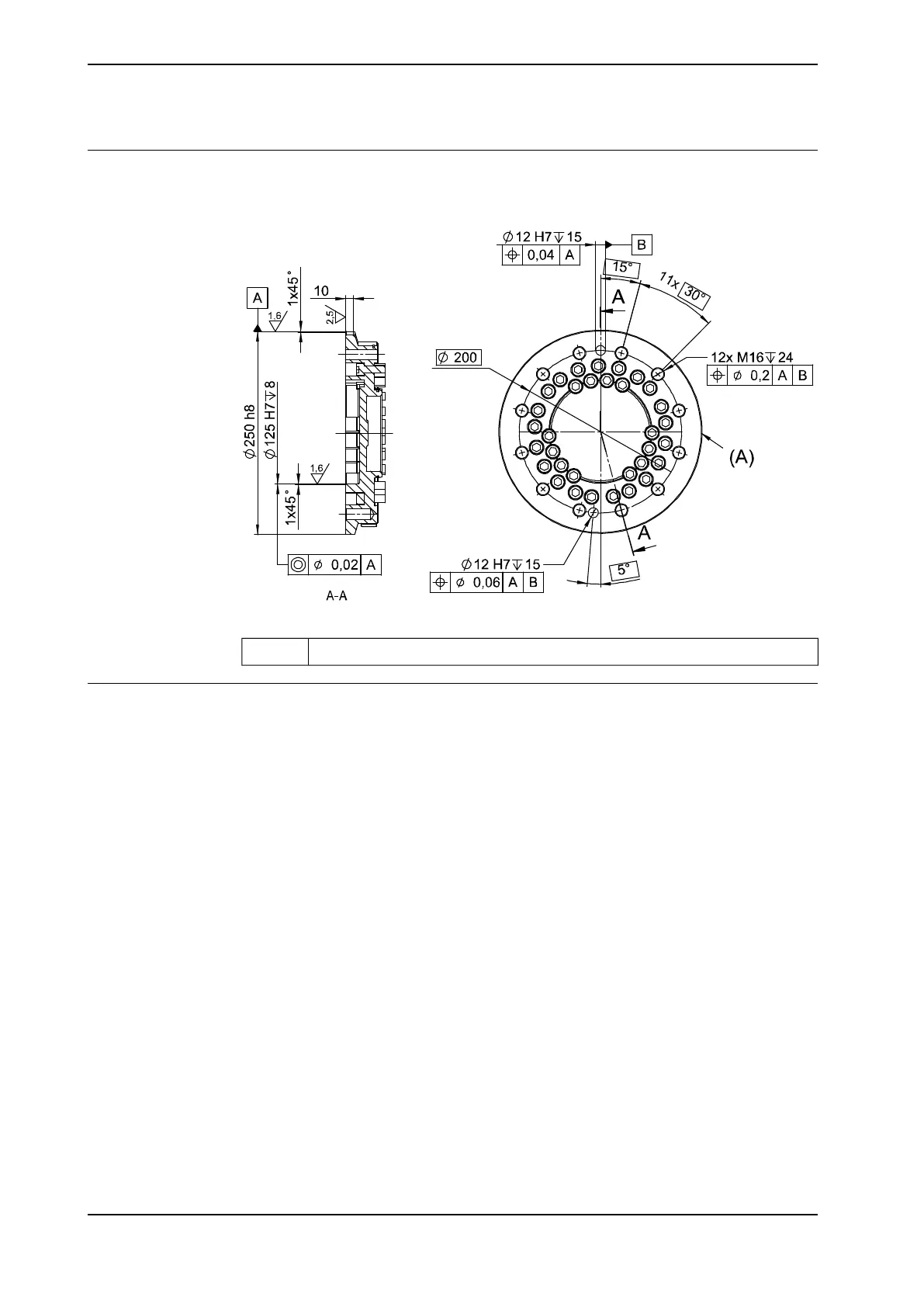

Illustration, fitting on turning disk
The illustration below shows the mounting holes available for fitting equipment on
the turning disk.
xx1000001058
Mounting flangeA
Fastener quality
When fitting tools on the turning disk (see the figures above), only use screws with
quality 12.9. When fitting other equipment to mounting holes standard screws with
quality 8.8 may be used.
86 3HAC039838-001 Revision: C
© Copyright 2013 ABB. All rights reserved.
2 Installation and commissioning
2.3.8 Fitting equipment on robot
Continued
