MOTOR CONTROL AND PROTECTION UNIT M10X USER GUIDE
—
03. Installation and wiring
Dimensions
Basic dimension of M10x
W x H x D=110mm x 140mm x 75mm
Typical installation of M10x
Vertical DIN rail or vertical screw mounting on
horizontal plate
Basic dimension of MD21
W x H x D=91mm x 75mm x 24.3mm
Mounting dimension of MD21
W x H=84mm x 68mm
Basic dimension of MD31
W x H x D=88mm x 50mm x 24.3mm
Mounting dimension of MD31
W x H=84mm x 46mm
For installation details of M10x and
MDx, see installation manual.
MD31
M10x
—

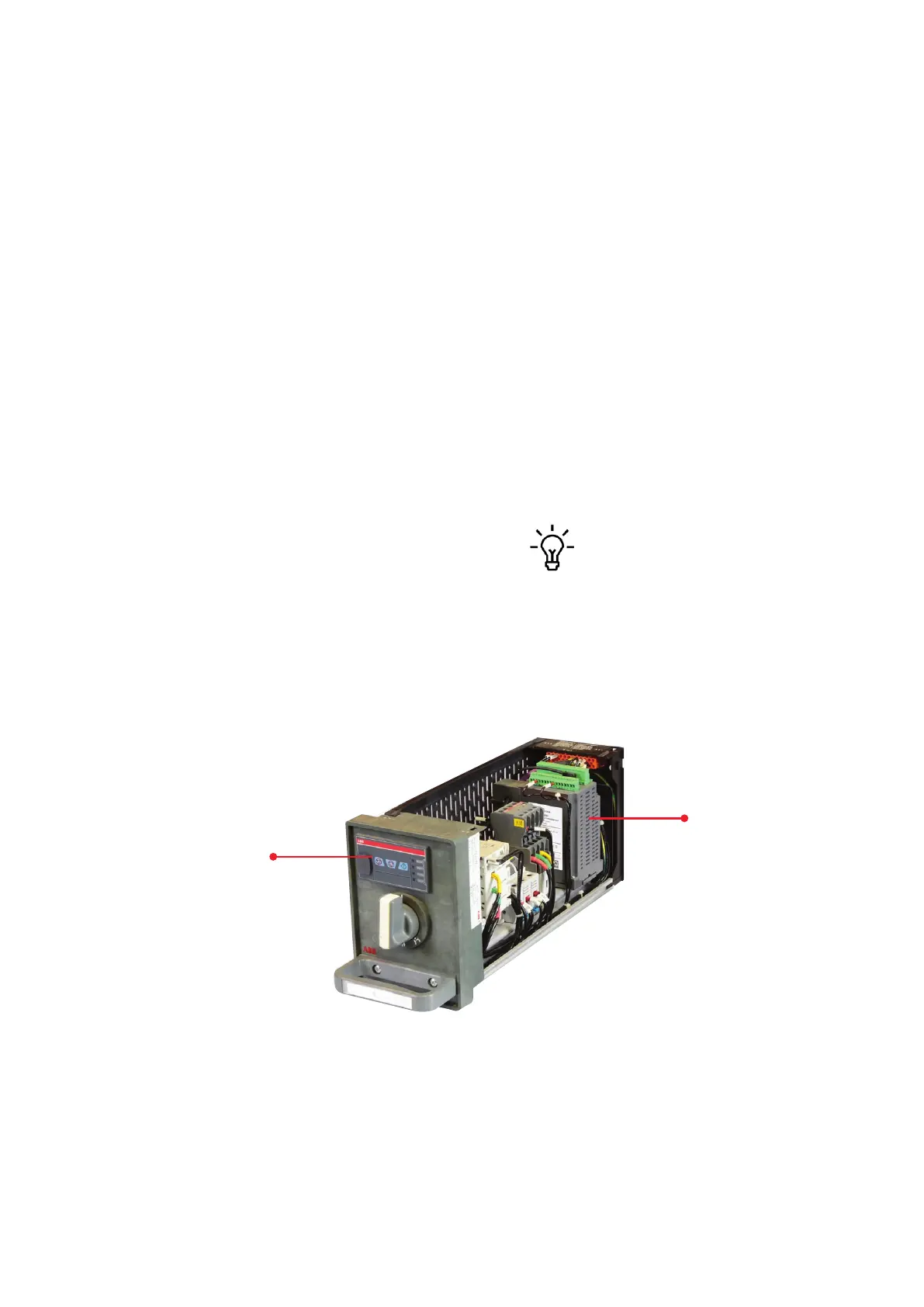

02 M10x in 8E/4 module
Main unit is designed with a mounting rail
fixed to the bottom of the device for easy
vertical DIN rail mounting.
Screws and other mounting accessories also
provide for vertical and horizontal screw
mounting.
