Shield and Ground (X4:12) are
connected internal of M10x.
Shield and Ground (X4:12) are
connected internally in all
M10x types.
—

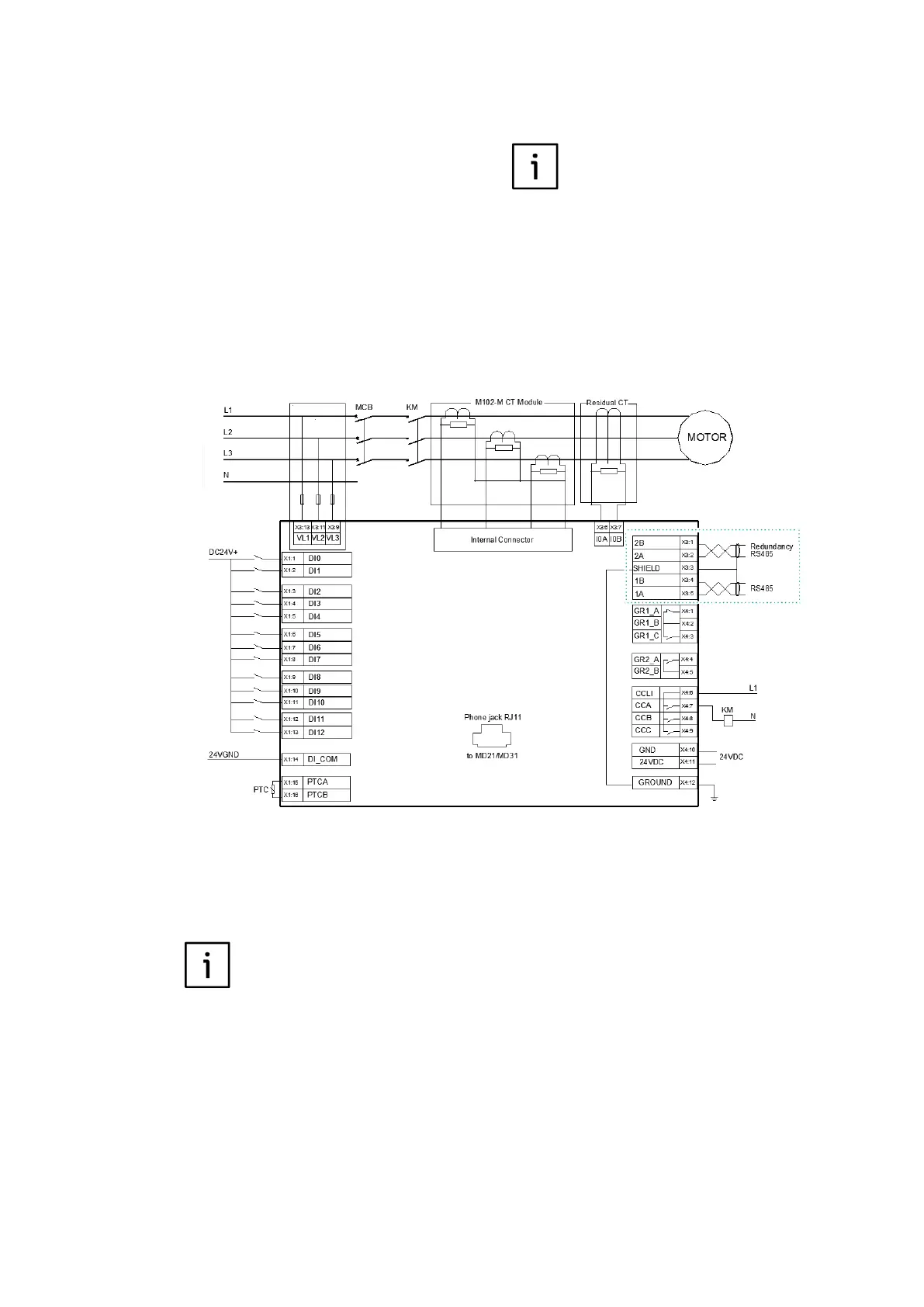

12 Typical wiring diagram for M102-M (24VDC type)
Terminal layout example
The terminal layout of M102-M 24VDC
product type is shown as an example in
Fig 12. The terminal blocks may have dif-
ferent definitions and available terminals
depending on the selected product type.
The details are explained in terminal des-
ignations above.
M10x device is certified to work un-
der EMC environment according to
relevant IEC standards. However a
network exposed to high electro-
magnetic disturbance may still
cause an unstable system and mal-
function devices.
In applications that variable speed drives
are used in a large scale, harmonic filter de-
vices shall be required in system design to
reduce impact to the network.
20 MOTOR CONTROL AND PROTECTION UNIT M10X USER GUIDE
