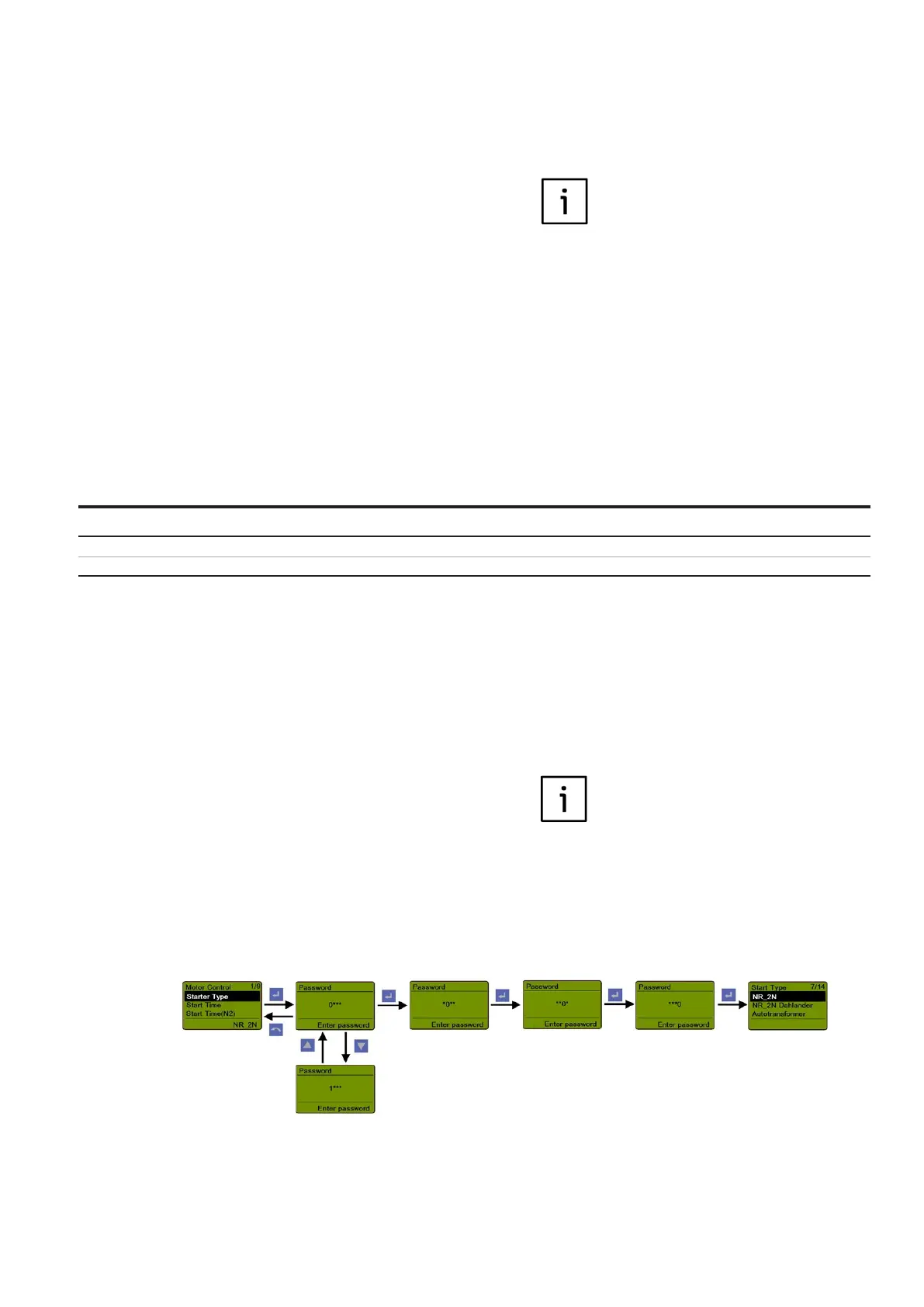

84 M OT O R CO N T R O L A N D P R O T E C T I O N U N I T M 1 0X U S E R G U I D E
Backup and download Backup parameter
Download backup1
—
Backup and download
The backup feature is for reading parameters
from the M10x device and creating a backup file in
the MD panel. The download feature is for
downloading backup files from MD panel to M10x
device.
This feature is easy to operate onsite, and is use-
ful when similar parameters are required for sev-
eral M10x devices.
Backup parameter: Saves current parameter to
backup register in MD21.
Download backup: Downloads the parameter in
backup register into M10x.
1) The download backup option is not
available until the backup parameter
function has been executed.
2) Remember to change slave address
after copying parameters from other
devices to avoid communication
problems.
Test
Select this submenu, M10x will conduct a self-
diagnosis to health check hardware circuits,
firmware programs and operation functions.
Adjusting parameters
Select the item at the last parameter level and
press enter. A password window will appear.
Always change the default password after first
login for secure operation purpose
After changing the parameters, press the back
button to return and confirm before down-
loading the new parameter..
1. Default password is 1111.
2. The slave address can be
revised and downloaded to
M10x via MD21.
—
59 adjusting parameters
