3 Maintenance
3.3.13. Inspection, information labels
3HAC022033-001 Revision: K188
© Copyright 2004-2011 ABB. All rights reserved.
xx0200000101
Required equipment
Inspecting, labels

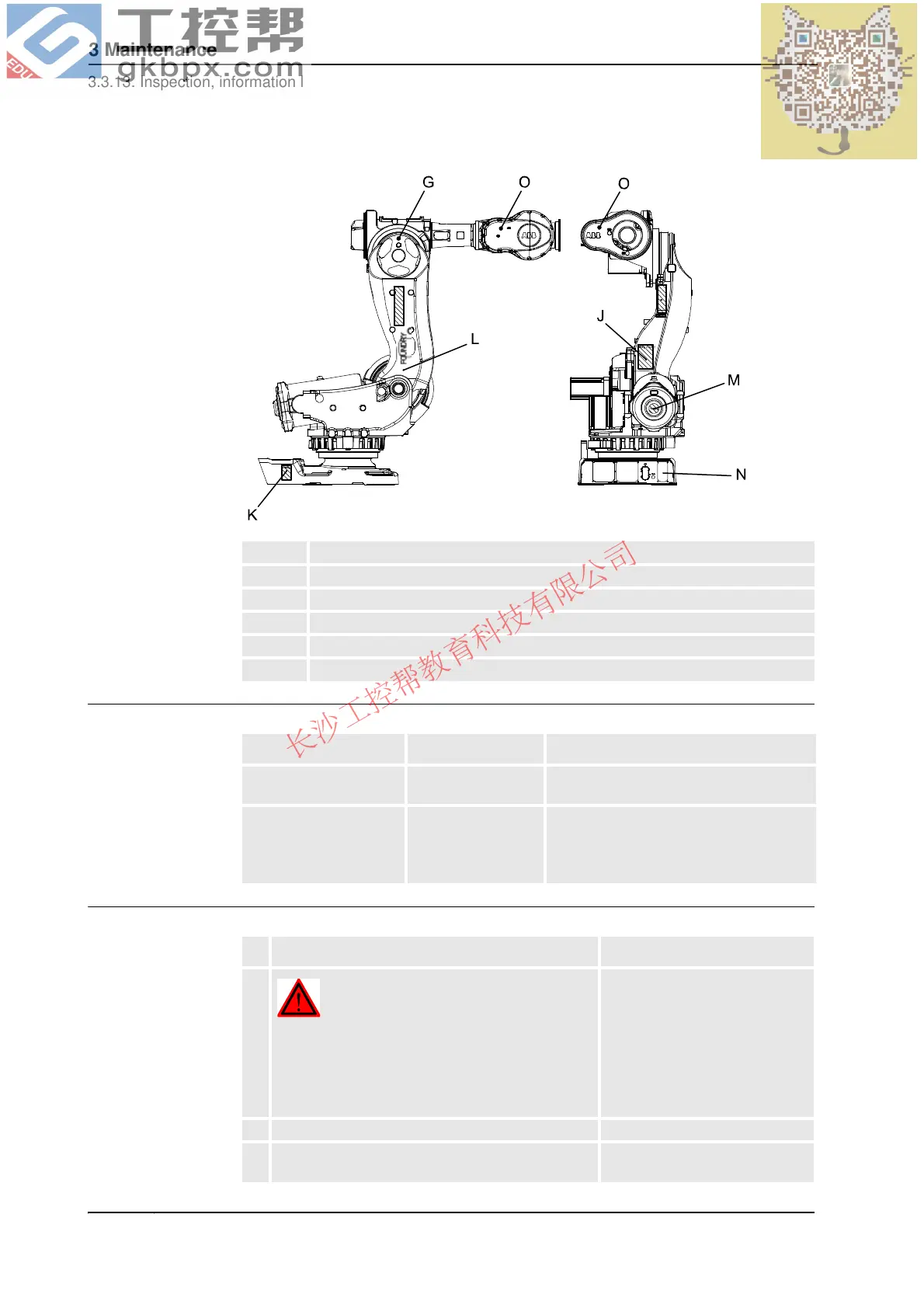

J Instruction label concerning lifting the robot
K Warning label concerning risk of tipping
L Foundry logotype
M Warning label concerning stored energy
N Information label, types of oil in gearboxes of each axis
O Label, type of oil in gearbox
Equipment Art. no. Note
Labels and plate set See the chapter
Spare parts.
Includes all labels specified in previous
figures!
Label set, oil labels See the chapter
Spare parts.
Includes only the oil labels at the
gearboxes and at the robot base.
Are fitted to the robot if the gearboxes
include Kyodo Yushi TMO 150.
Action Note
1.
DANGER!
Turn off all electric power, hydraulic and pneumatic
pressure supplies to the robot!
Turn off all electric power and hydraulic but not the
air pressure to the gearboxes, motors and SMB.
2. Check the labels, located as shown in the figures.
3. Replace any missing or damaged labels. Art. no. is specified in Required
equipment on page 188.
