1SDH002031A1002 ECN000092998 Rev. B SACE Tmax XT2 – XT4 | 130

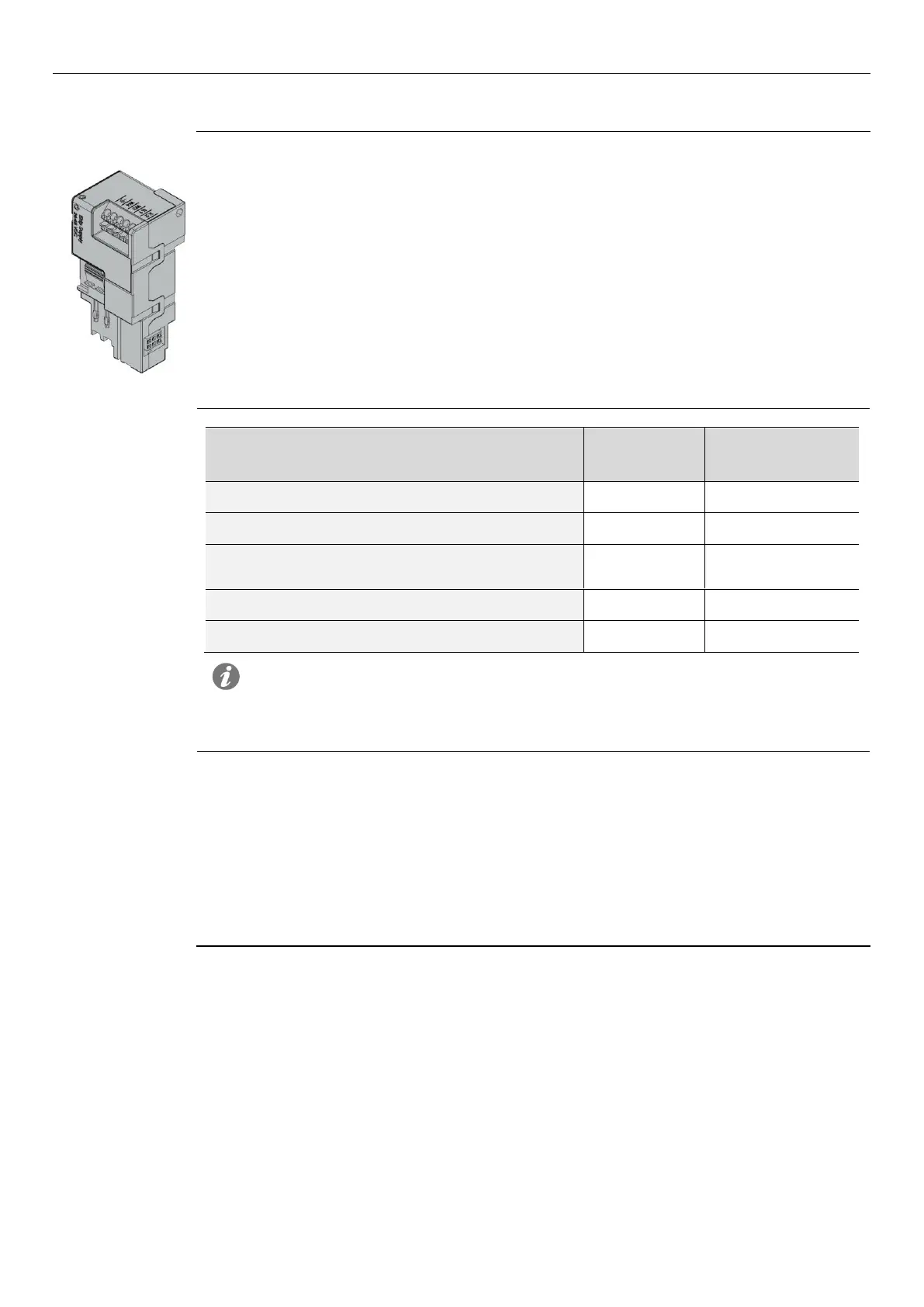

39 - Ekip Supply
Ekip Supply is an accessory supply module, available in two different version depending by
supply voltage type and range.
Performs three functions:
 supplies auxiliary supply to Ekip Touch
 allows connectionto Trip unit and supply of modules mounted on Ekip Cartridge.
 acts as a bridge for the Local Bus between Ekip Touch and the external electronic
accessories (es. Ekip Signalling 10K e Ekip Multimeter)
The module has a power LED to signal the presence of an input supply:
 Off: no power supply
 On (steady beam): powered up
Electrical
specifications
Model
Ekip Supply
24-48VDC
Ekip Supply
110-240 VAC/DC
Supply voltage
21,5 .. 53 VDC
105 .. 265 VAC/DC
Frequency
--
45 .. 66Hz
Maximum power consumption without
accessories(1)
3 W
3 VA/W
Maximum power consumption with accessories(2)
10 W
10 VA/W
Maximum inrush current
2 A for 20 ms
2 A for 20 ms
NOTE:
(1) Ekip Touch with Ekip Supply only
(2) Ekip Touch with three modules mounted on Ekip Cartridge
Connections
Ekip Supply must be mounted in the first free slot of Ekip Cartridge.
Consult:
 the electrical diagrams for 1SDM000068R0001 for terminal references.
For external cabling, use AWG22-16 cables with a maximum external diameter of 1.4
mm
 the instruction sheets 1SDH001000R0511 to connect the module to Ekip Touch.
