1SDH002031A1002 ECN000092998 Rev. B SACE Tmax XT2 – XT4 | 24
10 - Graphic pages

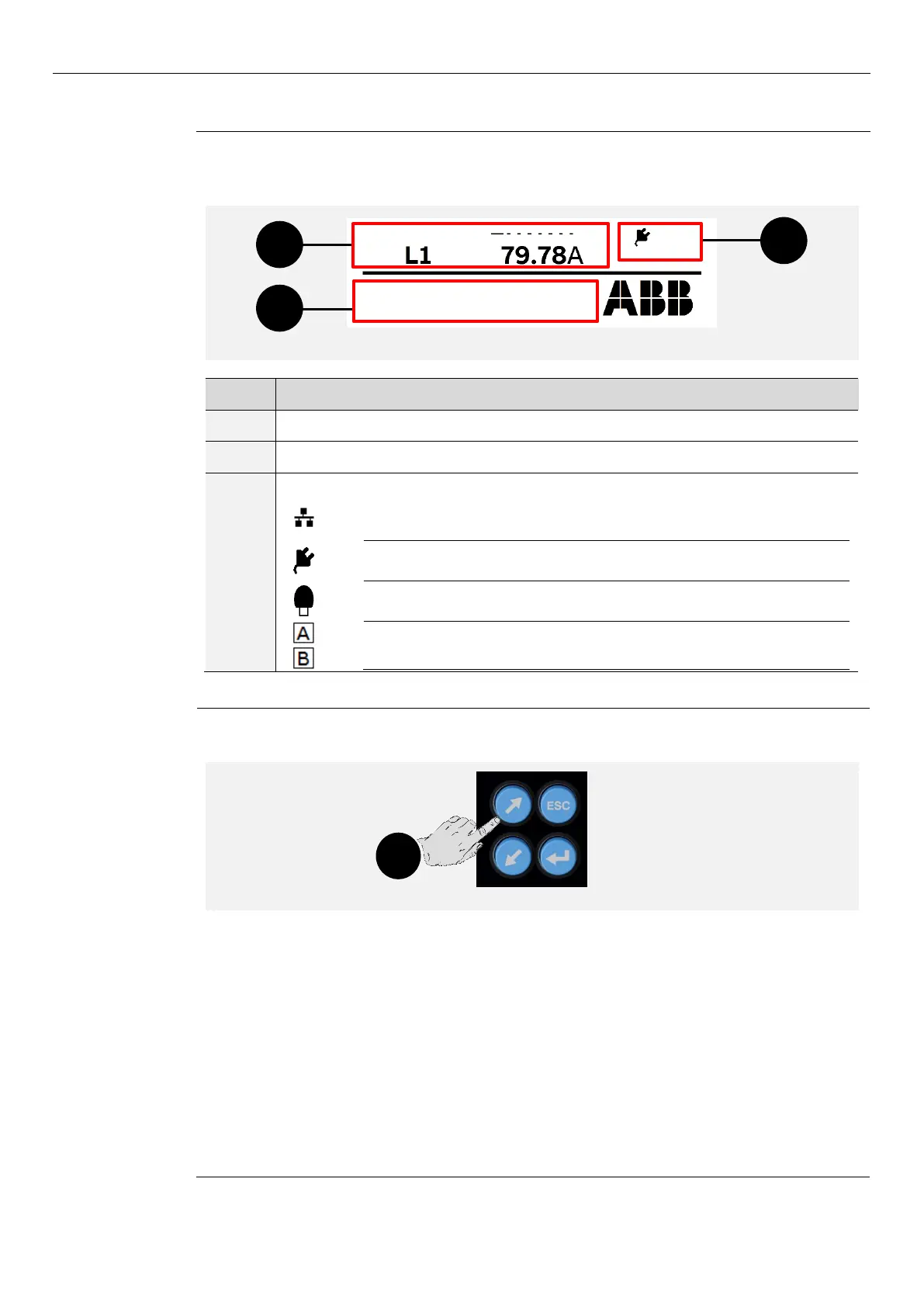

Main page
This is the page that is shown when the Trip unit is turned on.
The page is divided into three main sections:
Figure 9
Pos.
Description
A
Maximum phase power measured in real time
B
Diagnosis bar
C
Information icons:
Auxiliary power supply present, Ekip Com modules connected and
configuration remote entry of parameters enabled
Auxiliary power supply present
Trip unit powered by service connector
or
If the Dual Set function is enabled, the letter corresponding to the
active configuration is shown; more details on page 65
Summary pages
Using the Right/Up and Left/Down buttons on the sides of the display () it is possible to view
more measurement pages.
Figure 10
The list of additional available measurement pages depends on the presence or absence of
Neutral voltage (always present in the case of a tetrapolar Trip unit, to be configured in case of
a 3P + N Trip Unit).
If the Trip Unit is configured without Neutral voltage the following additional pages are available:
 Maximum measurements page: maximum phase power, maximum line-to-line voltage,
phase displacement cos φ real-time measurements
 Power measurements page: real-time phase currents
 Voltage measurements page: real-time line-to-line voltages
 Active power measurements page: real-time phase active power measurements
 Reactive power measurements page: real-time phase reactive power measurements
 Total power measurements page: real-time total phase power measurements
 Energy measurements page: total active, reactive, and apparent energy measurements
B
A
C
1
