Interface and menu
9 - Interface presentation
Functions
The Ekip Touch operator interface can be used to:
 Display messages and measurements related to the functions in progress or events logged
 Configure the parameters, protections and other unit functions
 Set parameters related to connected accessory modules
 Run tests
Components
The Ekip Touch interface includes an LCD display, buttons for quick access and menu navigation,
status LEDs, and a service connector for some external accessories:

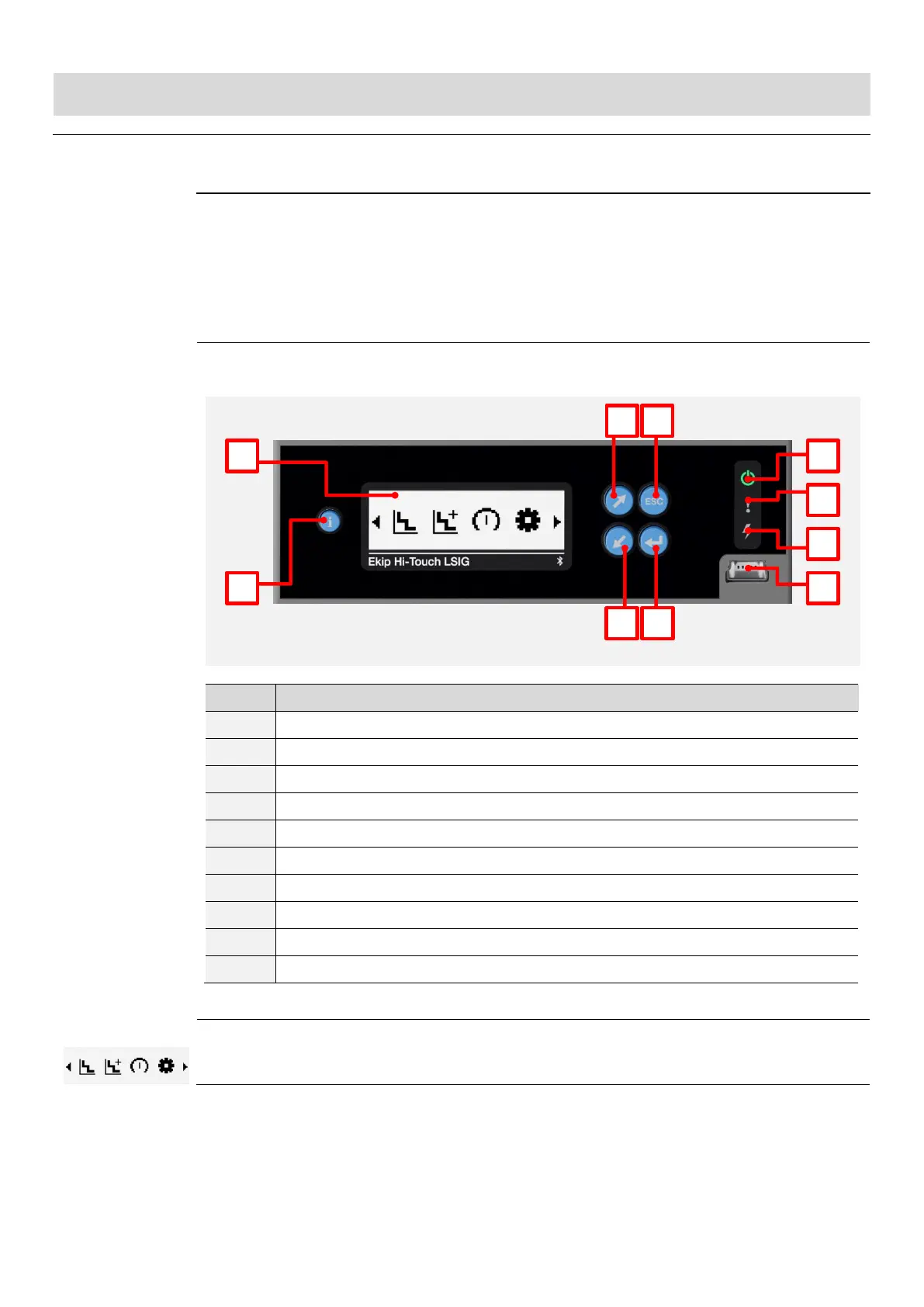

Figure 8
Pos.
Description
A
LCD Display
B
iTEST button
C
Right/Up button
D
ESC button
E
Left/Down button
F
Enter button
G
Power LED
H
Warning LED
I
Alarm LED
J
Service connector
Display
The Ekip Touch's display is LCD, monochrome, and is active with the unit on.
B
A
C
D
G
H
I
J
E
F
