ABB SACE Tmax XT2 User Manual

1SDH002031A1002 ECN000092998 Rev. B SACE Tmax XT2 – XT4 | 25
Summary pages
[2]
If the Trip Unit is configured with Neutral voltage the following additional pages are available:
 Maximum measurements page: maximum phase power, maximum line-to-line voltage,
phase displacement cos φ real-time measurements
 Power measurements page: real-time phase currents
 Voltage measurements page: real-time phase voltages
 Active power measurements page: real-time phase active power measurements
 Reactive power measurements page: real-time phase reactive power measurements
 Total power measurements page: real-time total phase power measurements
 Energy measurements page: total active, reactive, and apparent energy measurements
 Power Controller measurements page if the specific package is present, see page 121
for details
 Load Shedding measurements page if the specific package is present, see page 123 for
details
Diagnosis bar
and Alarm list

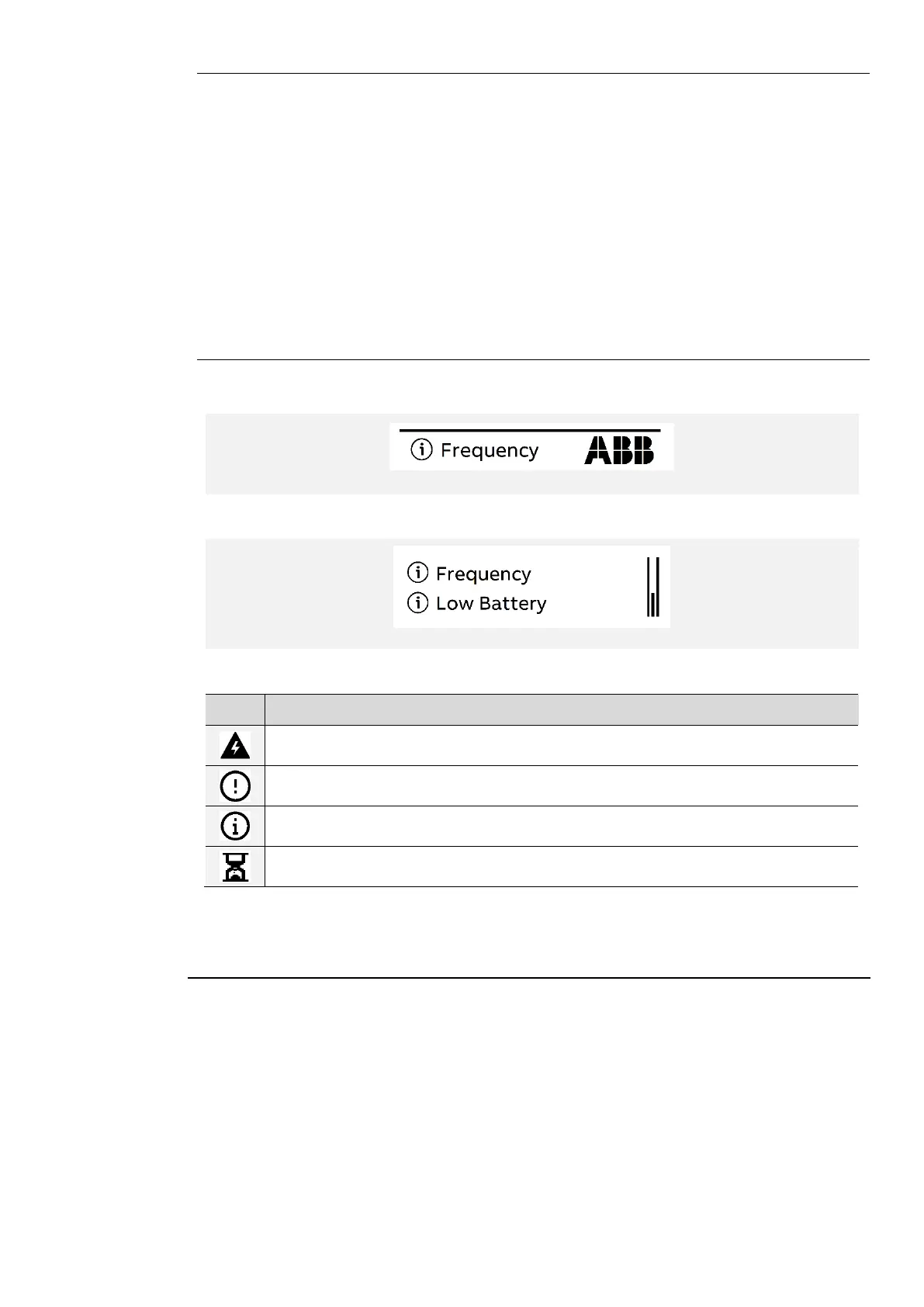

The Diagnostic Bar shows the malfunctions detected by the unit, showing the detail of each alarm
for about two seconds.
Figure 11
Pressing the iTEST button accesses the Alarm List page, which shows the list of current alarms.
Figure 12
Each message is followed by an icon that identifies the type of alarm:
Icon
Alarm Type
Alarm
Warning, error, or pre-alarm
Information
Timing for active protection
The complete list of alarms is available on page 18.
