ABB SACE Tmax XT2 User Manual

1SDH002031A1002 ECN000092998 Rev. B SACE Tmax XT2 – XT4 | 148
Models
Ekip Touch can be configured with two different modules that are compatible with the
EtherNet/IP
TM
protocol: Ekip Com EtherNet/IP
TM
and Ekip Com EtherNet/IP
TM
Redundant.
The two modules are identical in terms of characteristics and installation methods, except for:
display menus on unit, cablings and addresses for external communication, that are specific for
each model.
NOTE: if not specified, the information in the following chapter applies to both models
Both modules can be connected simultaneously to Ekip Touch to increase the potential of unit
(for example: for applications in which great network reliability is necessary).
IMPORTANT: in each Ekip Touch can be installed only one module per type; it is
not admitted the connection of two equal modules (for example: two Ekip Com
EtherNet/IP
TM
Redundant)
Connections
Consult
 the electrical diagrams for 1SDM000068R0001 to connect the module to its communication
network and for terminal references.
For the communication bus, a Cat.6 S/FTP cable must be used (Cat.6 with double S/FTP
shield).
 the instruction sheets 1SDH002009A1503 to connect the module to Ekip Supply and Ekip
Touch.
Supply
Ekip Com EtherNet/IP
TM
is supplied directly by the Ekip Supply module to which it is connected .
NOTE: in the absence of an auxiliary supply, the communication between Ekip Touch
and module is interrupted
Interface

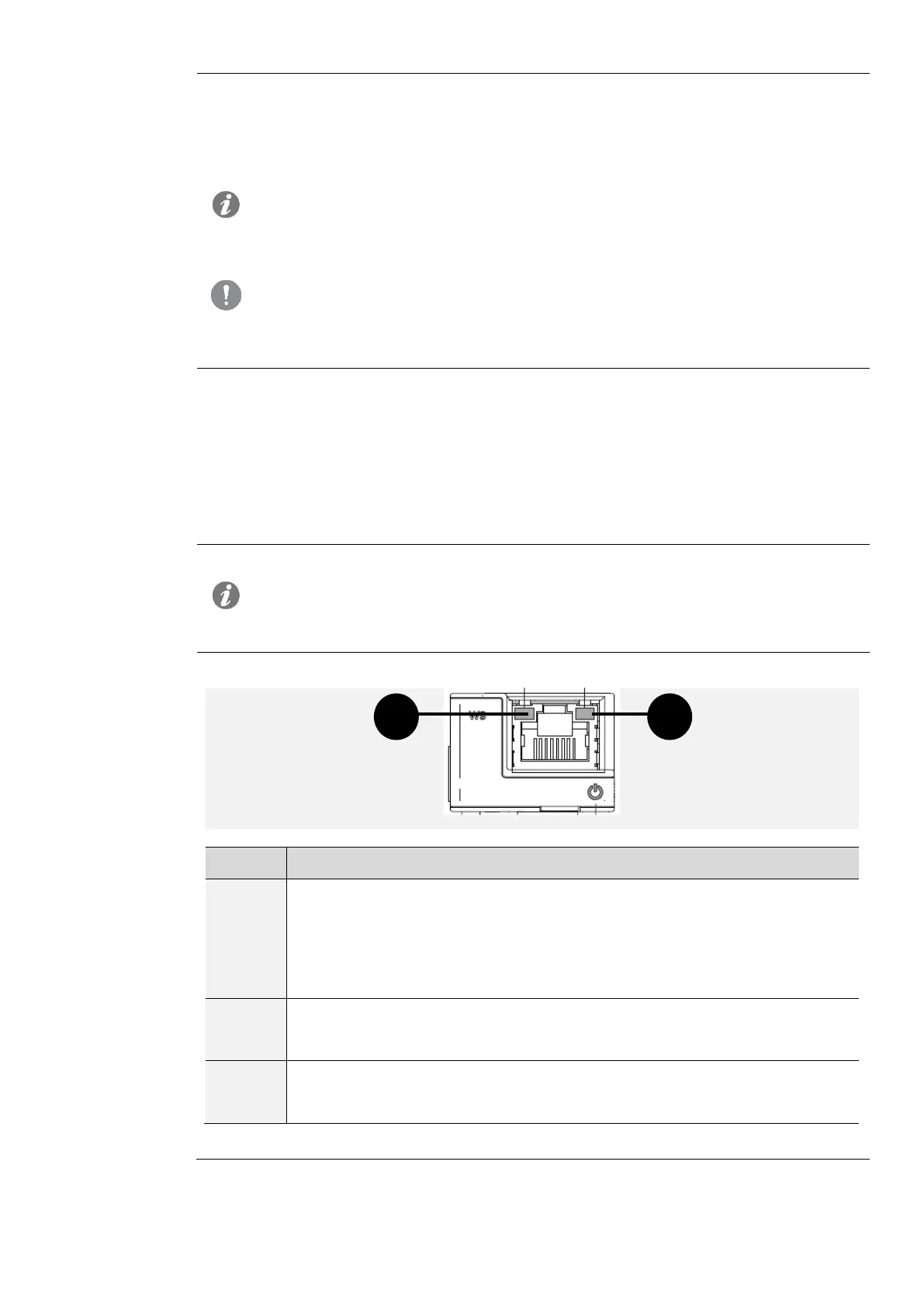

The module has three signalling LEDs:
Figure 39
LED
Description
Power
Reports ON status and correct communication with Ekip Touch:
 off: module off
 fixed or flashing light synchronized on power LED of Ekip Touch: module ON
and communication with Trip unit present
 flashing not synchronized with the power LED of Ekip Touch (twp rapid
flashes a second): module ON and communication with Trip unit absent
Link

Indicates status of the communication:
 off: incorrect connection, signal absent
 fixed light: correct connection
Activity

Indicates status of the communication:
 off: activity on line absent
 flashing: activity on line present (receiving and/or transmitting)
1
2
