1.4 Overview of the Accu-Chek Smart Pix user interface
The Accu-Chek Smart Pix system has a user interface which
is displayed in standard Internet browsers. You do
not
require an Internet connection if you wish to use the
Accu-Chek Smart Pix system. The relevant pages are stored
in the device itself where they can be called up. The user
interface is optimised for a screen resolution of at least
1024 x 768 pixels.
Even if various functions are available to you in the
Internet browser itself (e.g. Navigate forward/back,
Refresh, Print, etc.), we advise you to only use the
relevant functions on the Accu-Chek Smart Pix user
interface instead. The Accu-Chek Smart Pix system
provides several options for customising printouts, for
example. These options will not be available to you if
you use the standard functions of the browser.
For a detailed description of the various elements, see
Chapter 2.4, “Configuring the Accu-Chek Smart Pix system”
and Chapter 4, “Accu-Chek Report”.

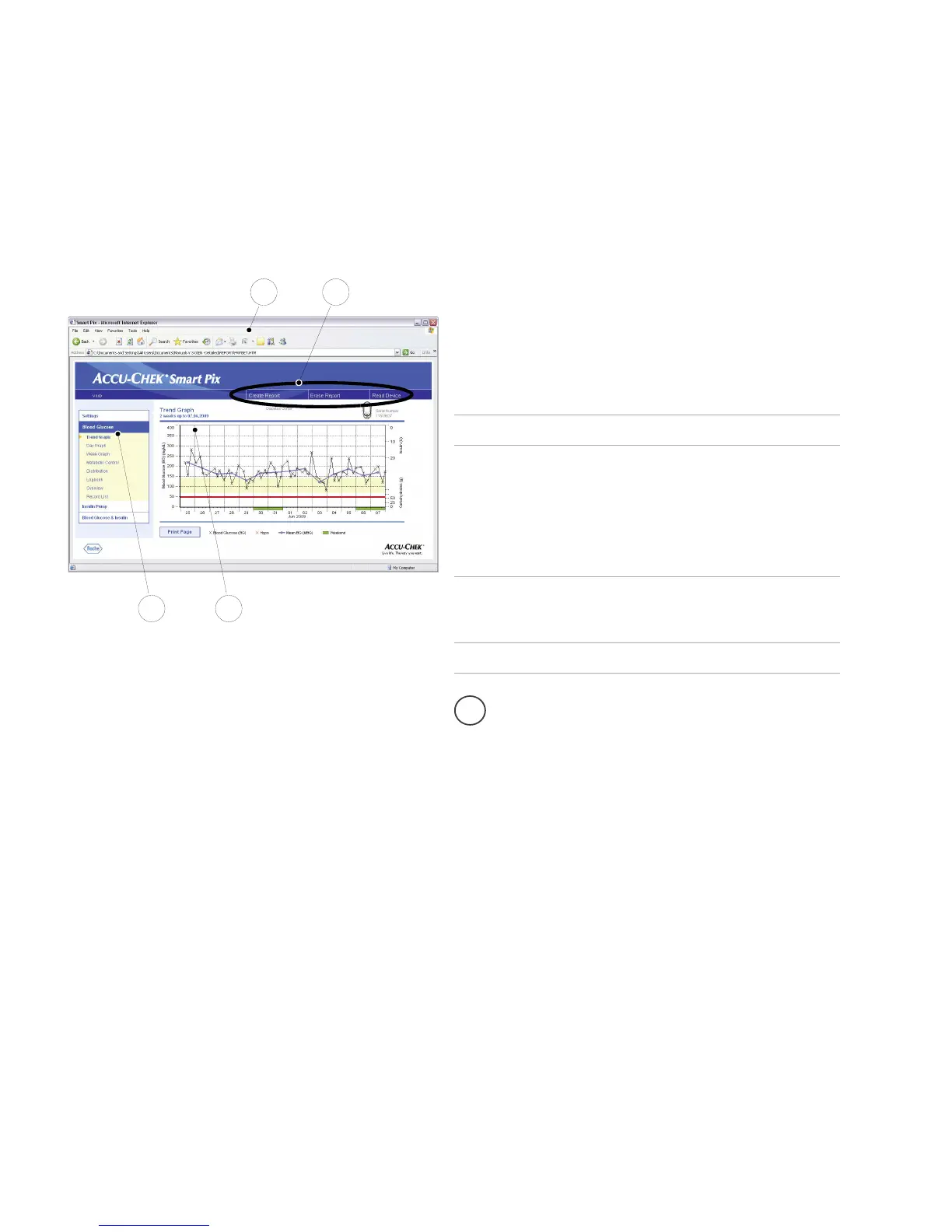

11
Internet browser (Microsoft Internet Explorer, Firefox)
12
Buttons for calling up various functions (context-
dependent):
• Settings
•
Create Report
(Print)
•
Erase
Report
•
Read device
13
Navigation bar for calling up the individual pages
(reports and settings), which are then shown in the
display pane
14
14
Display pane for reports and settings
To Next Page
Loading...
Need help?
General
