3-65 Service and Maintenance
GPS Antenna Installation

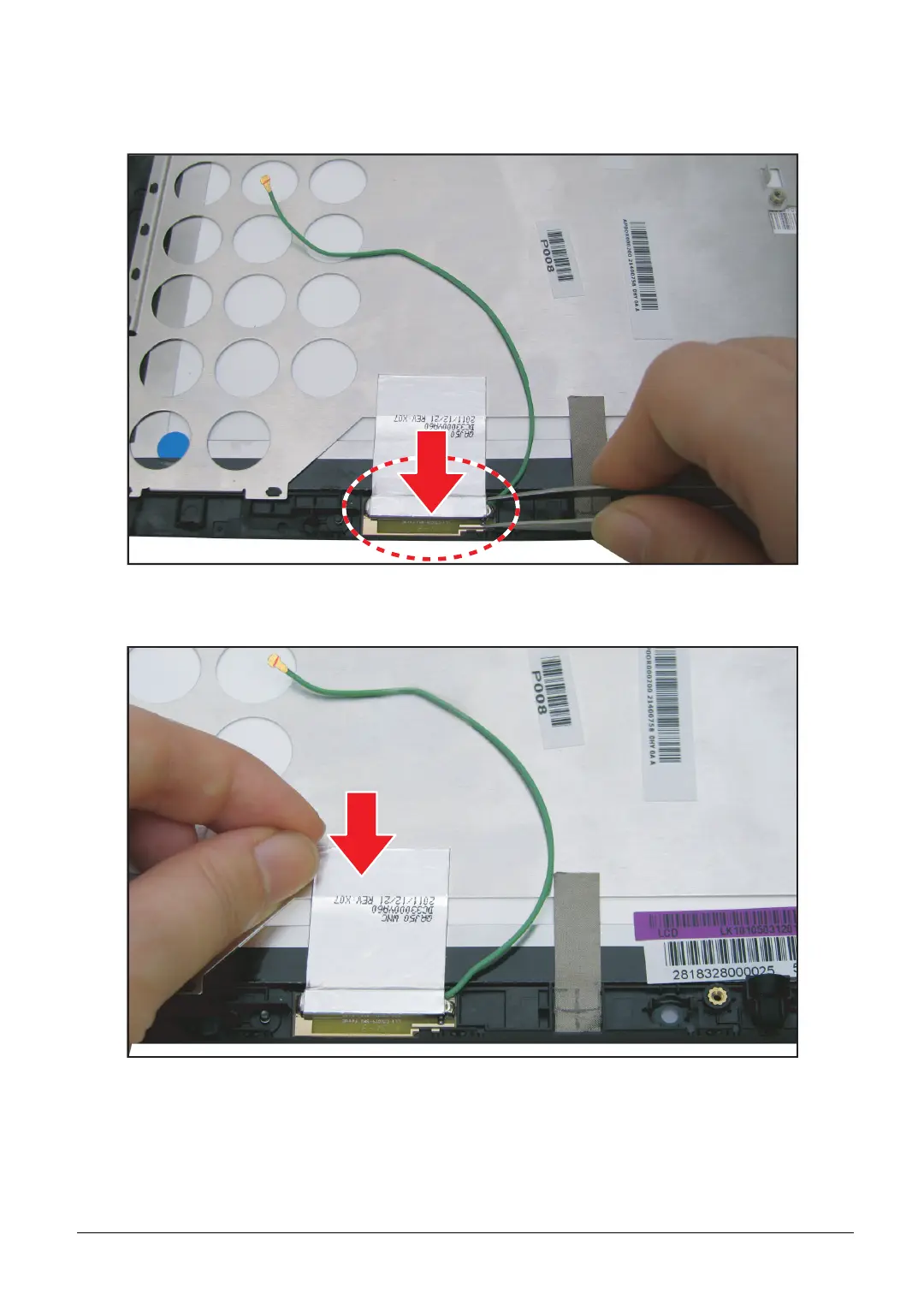

1. Using the tweezers, align and install the GPS antenna to the antenna slot on the bezel.
Figure 3:109. Installing the GPS Antenna (1 of 2)
2. Attach the metallic tape to secure the GPS antenna to the bezel.
Figure 3:110. Installing the GPS Antenna (2 of 2)
3. Install the mainboard (see Mainboard Installation on page 3-59).
