3-37 Service and Maintenance
Battery Removal
Prerequisite:
Speaker (Left) Removal on page 3-33 (A)
Function Board Removal on page 3-28 (B)
Camera Module Removal on page 3-24 (C)

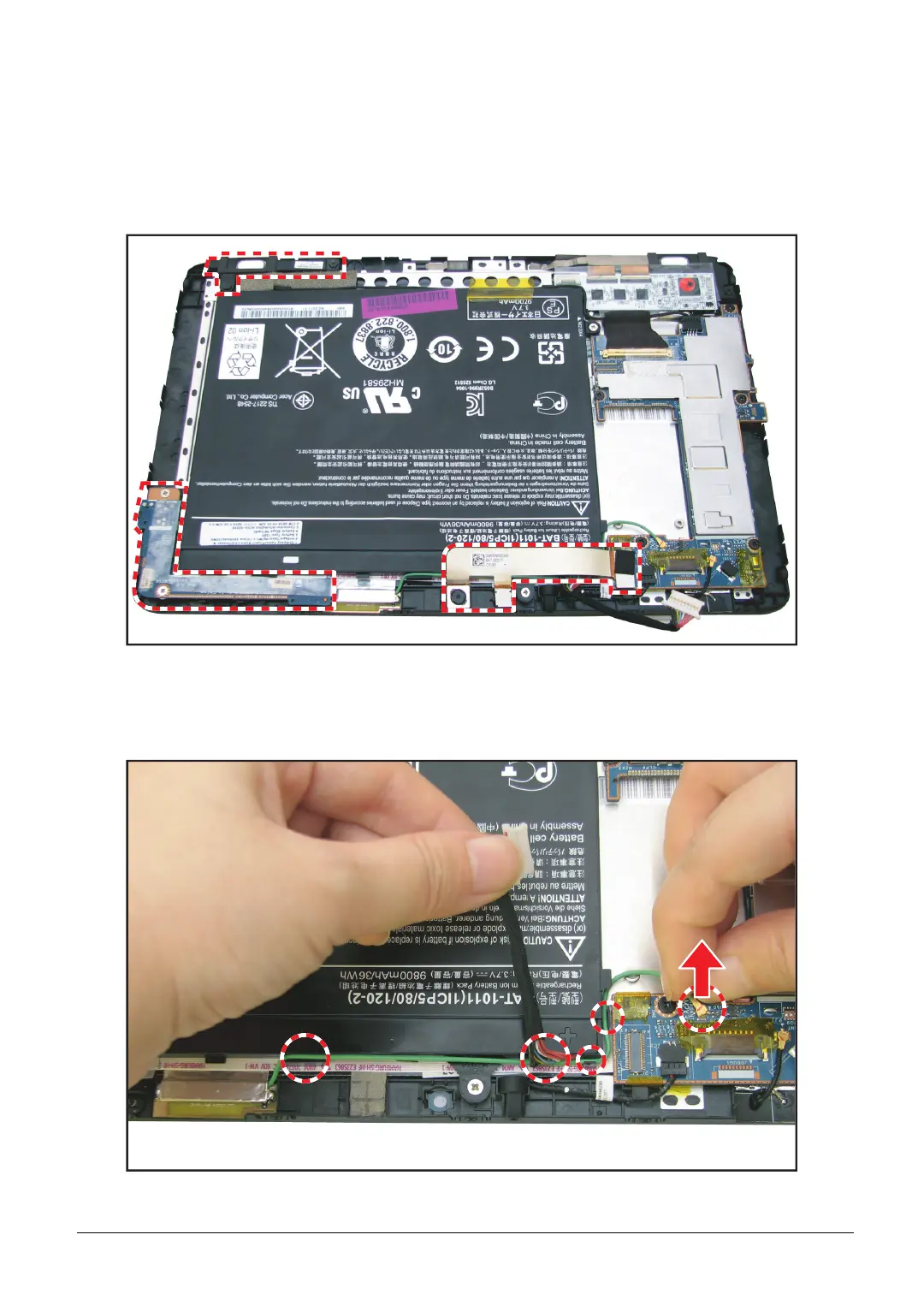

Figure 3:61. Modules to Remove Before Battery Removal
1. Disconnect the GPS cable connector from the mainboard and set the cable aside. Note that the
GPS cable is routed through the guides around the battery.
Figure 3:62. Disconnecting the GPS Cable
To Next Page
