Service and Maintenance
3-48
LVDS Cable Removal
Prerequisite
:
T
ouch Control Board Removal
on page
3-42

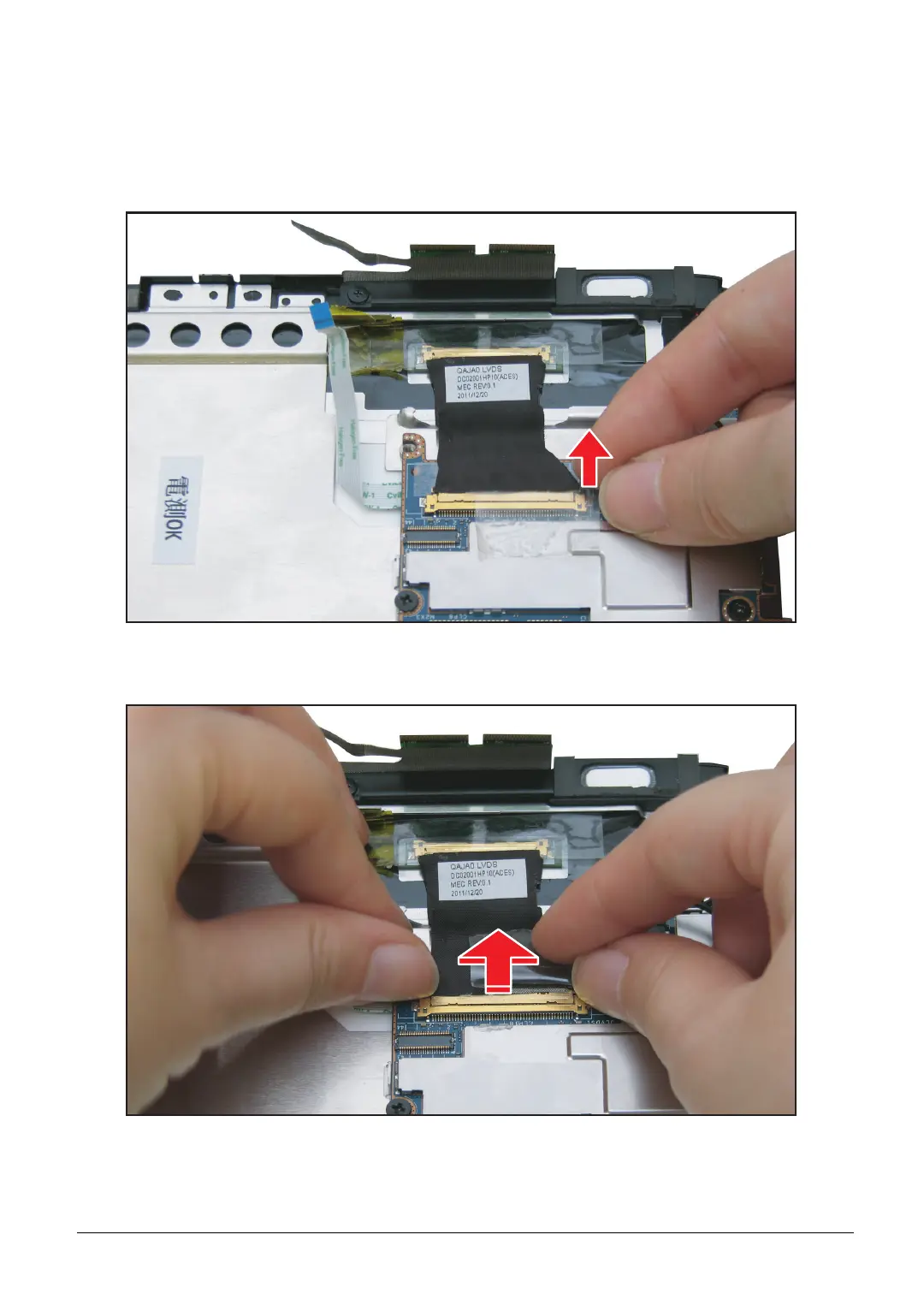

1.
Remove the protective t
ape attach
ed to the L
VDS cable from the mainboard.
Figure 3:79. Removing the L
VDS Cable (1 of 4)
2.
Disconnect the L
VDS cable co
nnector from the mainboard connector
.
Figure 3:80. Removing the L
VDS Cable (2 of 4)
88
90
Table of Contents
Default Chapter
2
Table of Contents
2
Chapter 1. Hardware Specifications and Configurations
8
Features
8
Tablet Tour
11
Front View
11
Rear View
12
Top View
13
Bottom View
14
Left View
15
Right View
16
System Block Diagram
17
Specifications Table
18
Chapter 2. Diagnostic Utilities
32
Introduction
32
Diagnostic Tool SOP
32
Preparation
32
Tool Installation
32
Main Menu
34
Uninstallation Procedures
40
Chapter 3. Service and Maintenance
44
Introduction
44
Recommended Equipment
44
Maintenance Flowchart
45
Getting Started
46
SD Card Removal
47
SD Card Installation
49
Lower Case Removal
50
Lower Case Installation
57
Microphone (Front) Removal
63
Microphone (Front) Installation
64
Camera Module Removal
65
Camera Module Installation
67
Function Board Removal
69
Function Board Installation
72
Speaker (Left) Removal
74
Speaker (Left) Installation
76
Battery Removal
78
Battery Installation
80
Touch Control Board Removal
83
Touch Control Board Installation
86
LVDS Cable Removal
89
LVDS Cable Installation
91
Speaker (Right) Removal
93
Speaker (Right) Installation
95
Mainboard Removal
97
Mainboard Installation
100
WLAN Antenna Removal
103
WLAN Antenna Installation
104
GPS Antenna Removal
105
GPS Antenna Installation
106
Microphone (Rear) Removal
107
Microphone (Rear) Installation
108
Docking Board Removal
109
Docking Board Installation
111
Chapter 4 . Troubleshooting
114
Troubleshooting
114
Power on Issues
115
No Display Issues
116
LCD Picture Failure
117
Touch Screen Failure
118
Internal Speaker Failure
119
Internal Microphone Failure
120
USB Failure
121
Front Camera Failure
122
Back Camera Failure
123
Wireless Function Test Failure
124
GPS Function Test Failure
125
Other Functions Failure
126
General Information
114
Chapter 5. Jumper and Connector Locations
128
Mainboard Top View
128
Mainboard Bottom View
129
Chapter 6. FRU (Field Replaceable Unit) List
131
Exploded Diagram
132
FRU List
134
Screw List
136
Chapter 7. Test Compatible Components
138
Android os Environment Test
138
Iconia Tab A510
138
Chapter 8. Online Support Information
143
Introduction
143
