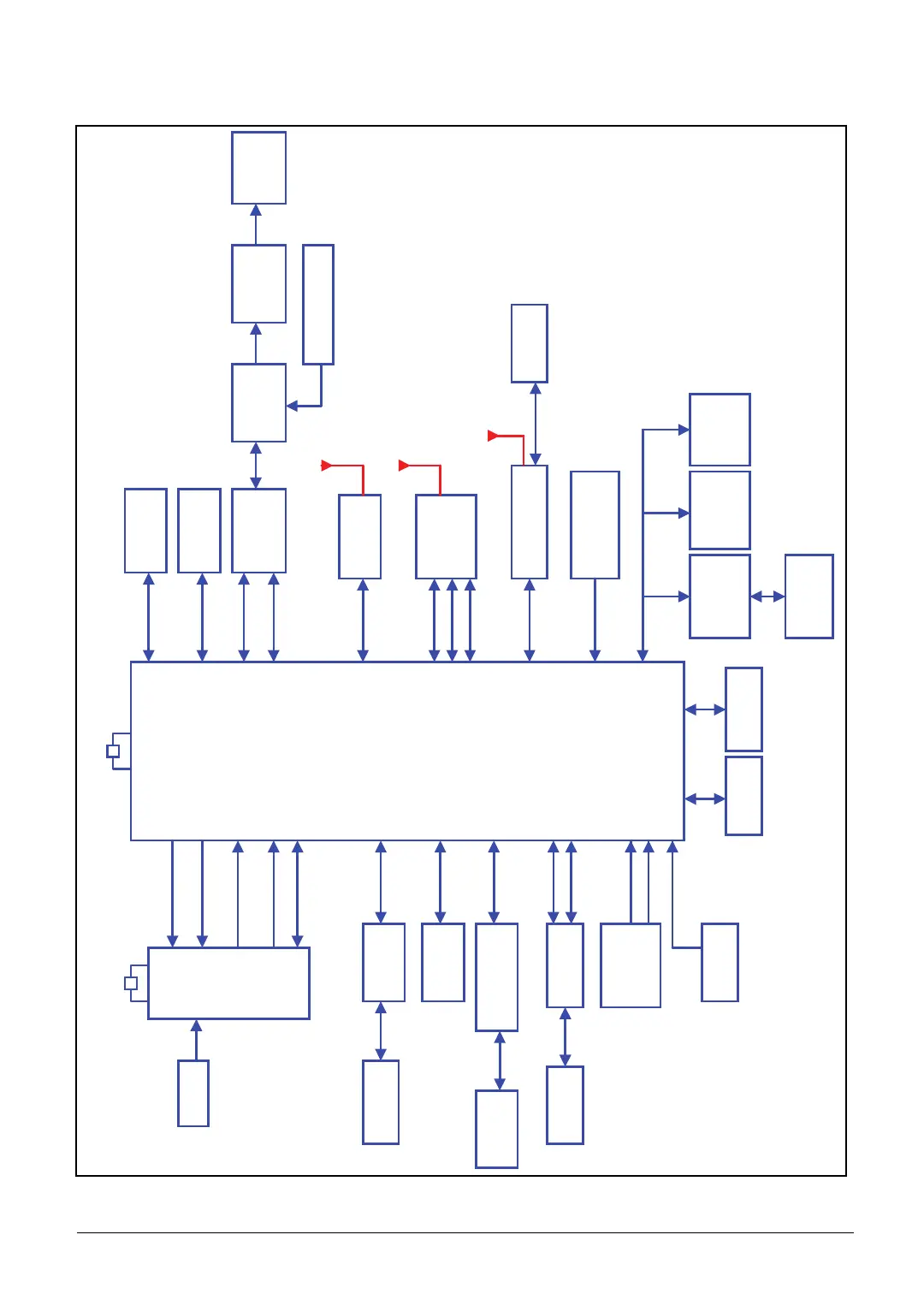

System Block Diagram
Figure 1:7. System Block Diagram
Nvidia
T30S
SDIO4 (1.8V)
eMMC
SDIO1 (3.3V)
Micro SD slot
LPDDR2 512MB/1GB Debug Test Point
JTAG I2S
UART4
Audience eS305
Audio Codec WM8903
Audio AMP APA2010
Speaker x 2 (1W)
MIC & Audio Jack
CIS(MIPI)
Broadcom BCM47511
UART2
GPS Antenna
AzureWave AW-AH662
BT/WLAN Antenna
UART3 SDIO DAP
I2C
CAM_I2C CAM_I2C CAM_I2C
CAMERA 5M(CJAA525) 2M(CBFA152)
Host Client
Signal Switch
USB2
3G Modem Module
3G Modem Antenna
Micro USB
G-Sensor KXTF9-4100
IME
GYRO Sensor MPU-3050
Light Sensor STK2203
E-Compass AKM8975
Dock/B
LVDS Transmitter (V105A)
10.1" LCD 1920*1200
HDMI Switch (1.8V/3.3V)
CORE_PWR_REQ
PMIC TPS659110
CPU_PWR_REQ
PMU_32K_IN
PWR_I2C
SYS_RESET_N
32KHz
VIN
Power ON
HDMI_DDC
SIM Card
Micro HDMI
Touch Panel Control
Func/B
CAM_I2C
P-Senser IQS12800100TSR
Dock/B
26MHz
EEPROM
