2-4 Diagnostic Utilities
Main Menu
The diagnostic tool tests the Touch Panel, Display, Buttons, Speaker, Microphone, Camera, SD
card and Vibrator functionality.
Select the function(s) you want to test, and then tap OK to start.

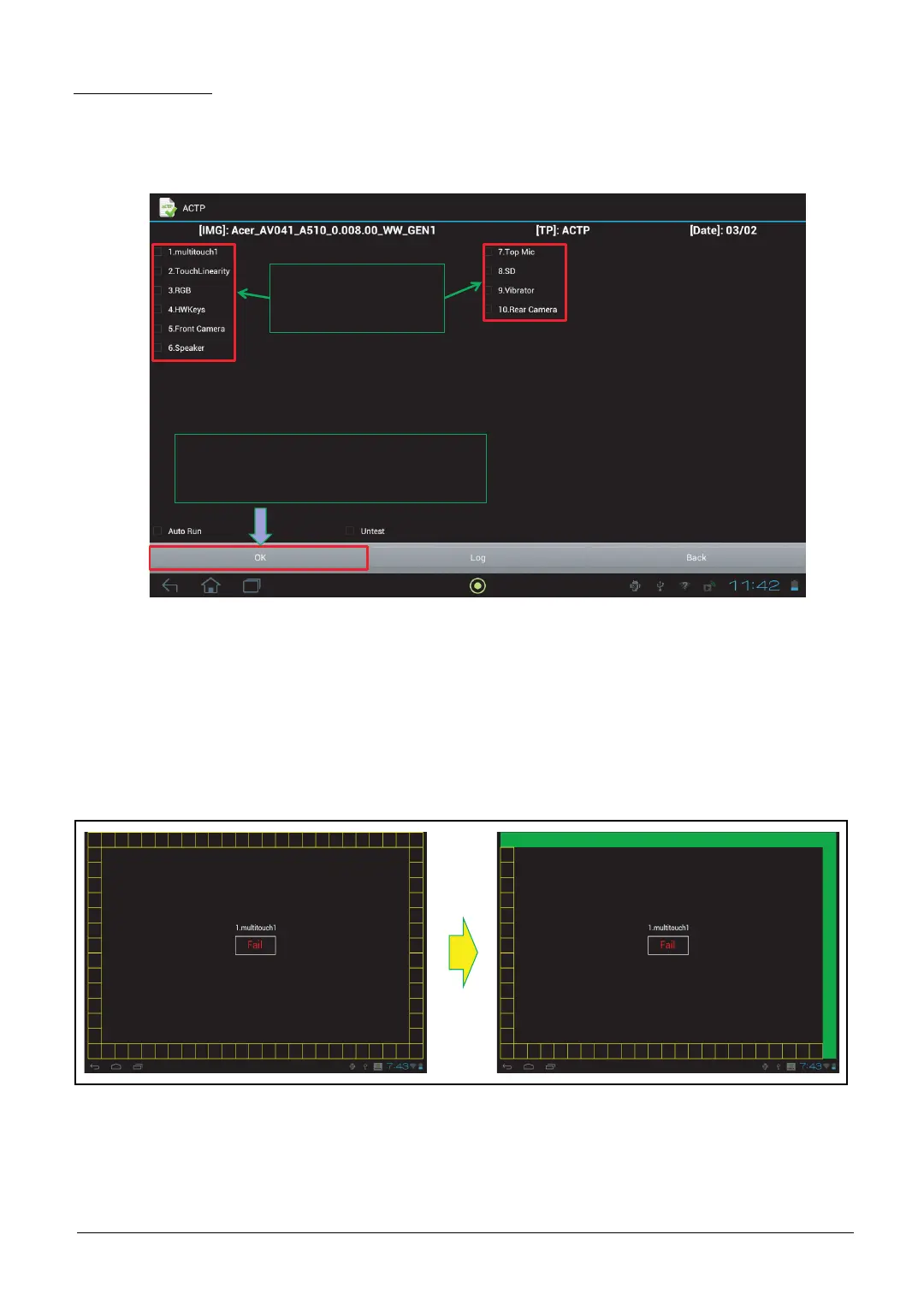

Figure 2:4. Diagnostic Tool Main Menu
1. Multi-touch Test (Touch Panel)
Draw your finger along the yellow squares.
The result is Pass if you fill all the yellow squares and Fail if you do not. The program returns to
the main menu after the test is finished.
Figure 2:5. Multi-touch Test
Step 1 –
Select item(s)
Step 2 –
Click “OK” to start testing
