Service and Maintenance
3-26

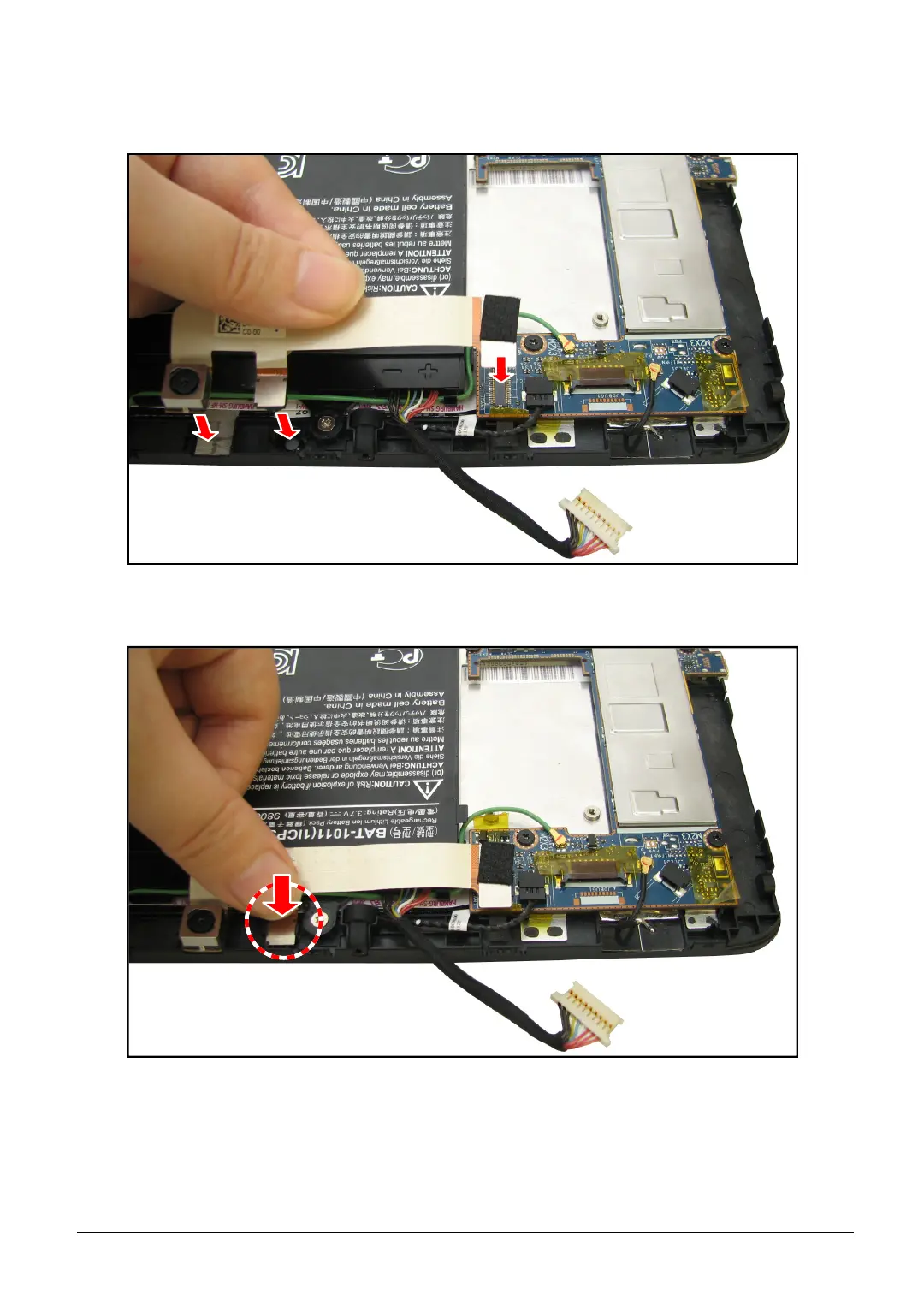

Camera Module Installation
1.
Align the camera module
to the camera slots and the connector on the mainboar
d.
Figure 3:41. Aligning the Camera Module
2.
Push the front camera down to th
e slot until it locks into place.
Figure 3:42. Installi
ng the Camera (1 of 3)
66
