3-67 Service and Maintenance
Microphone (Rear) Installation
1. Connect the microphone cable connector to the docking board connector.

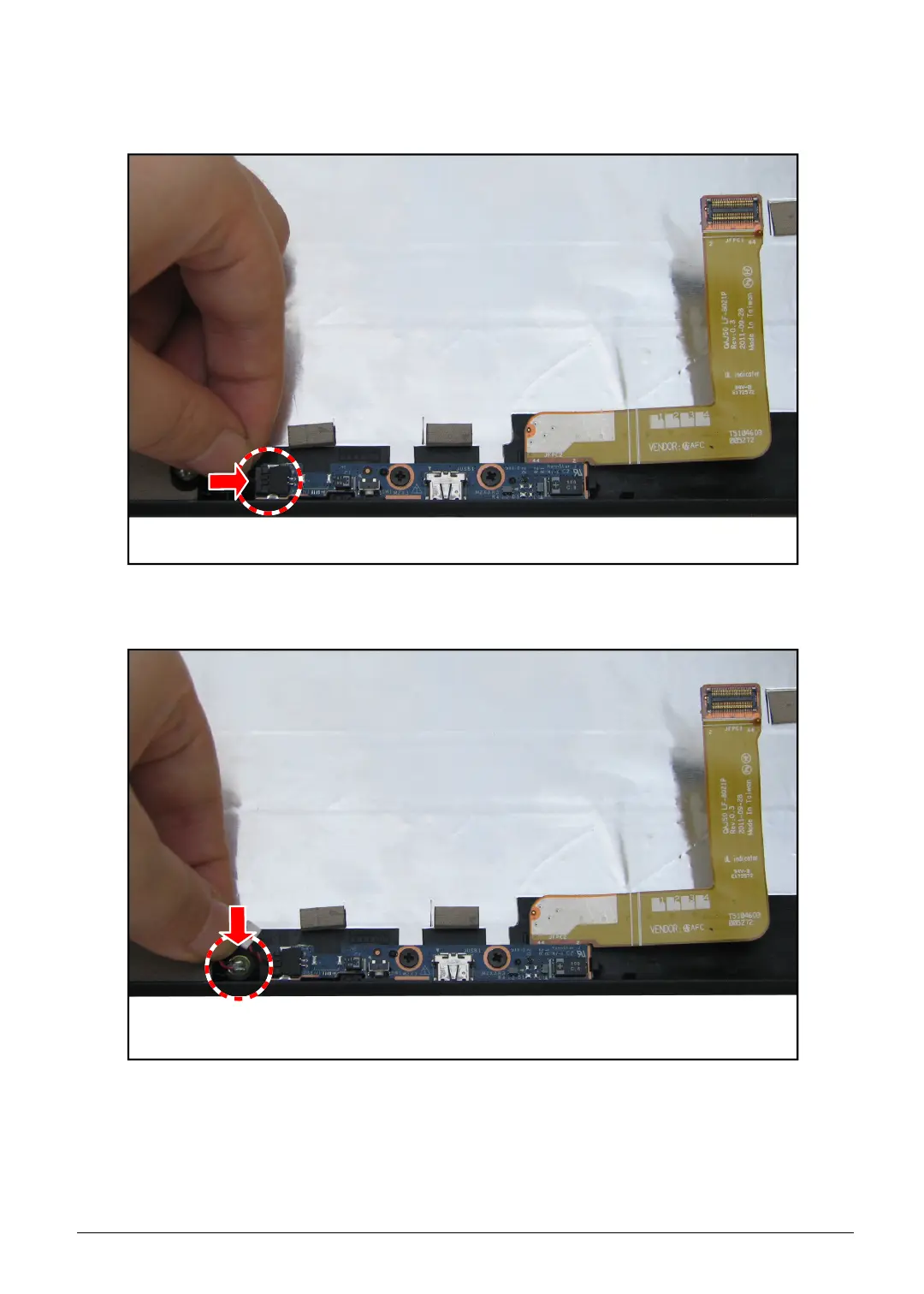

Figure 3:113. Installing the Rear Microphone (1 of 2)
2. Install the microphone to the microphone slot of the lower case.
Figure 3:114. Installing the Rear Microphone (2 of 2)
3. Install the lower case (see Lower Case Installation on page 3-16).
