Lower Case Installation
Before installing the lower case, make sure the following are installed:
• Rear microphone (if not, perform Microphone (Rear) Installation on page 3-67).
• Docking board (if not, perform Docking Board Installation on page 3-70).
1. Align the bottom side of the lower case to the bezel and connect the docking board cable
connector to the mainboard connector.

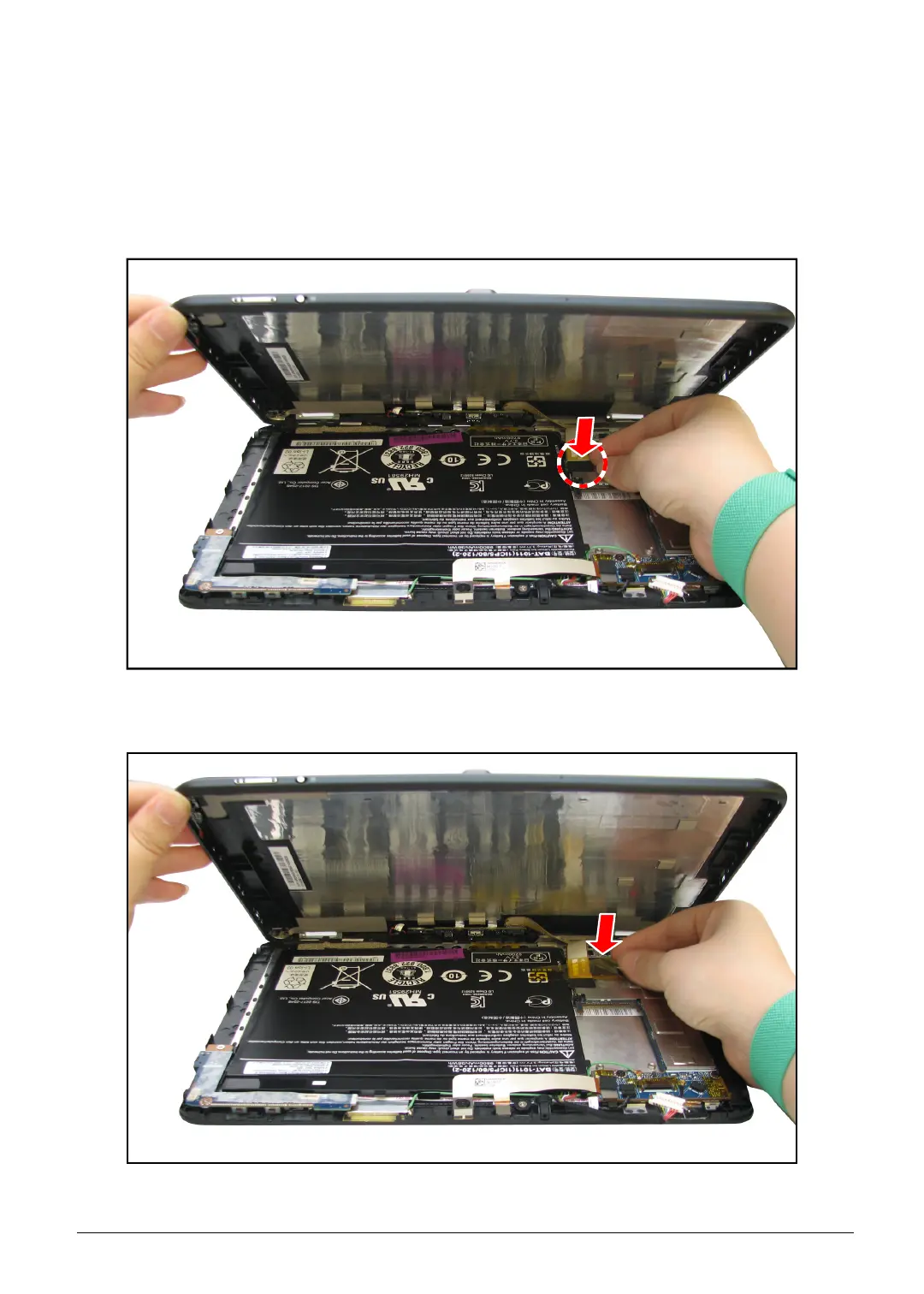

Figure 3:21. Installing the Docking Cable (1 of 2)
2. Attach the protective tape to secure the docking board cable connector.
Figure 3:22. Installing the Docking Cable (1 of 2)
