Jumper and Connector Locations 5-3
Mainboard Bottom View

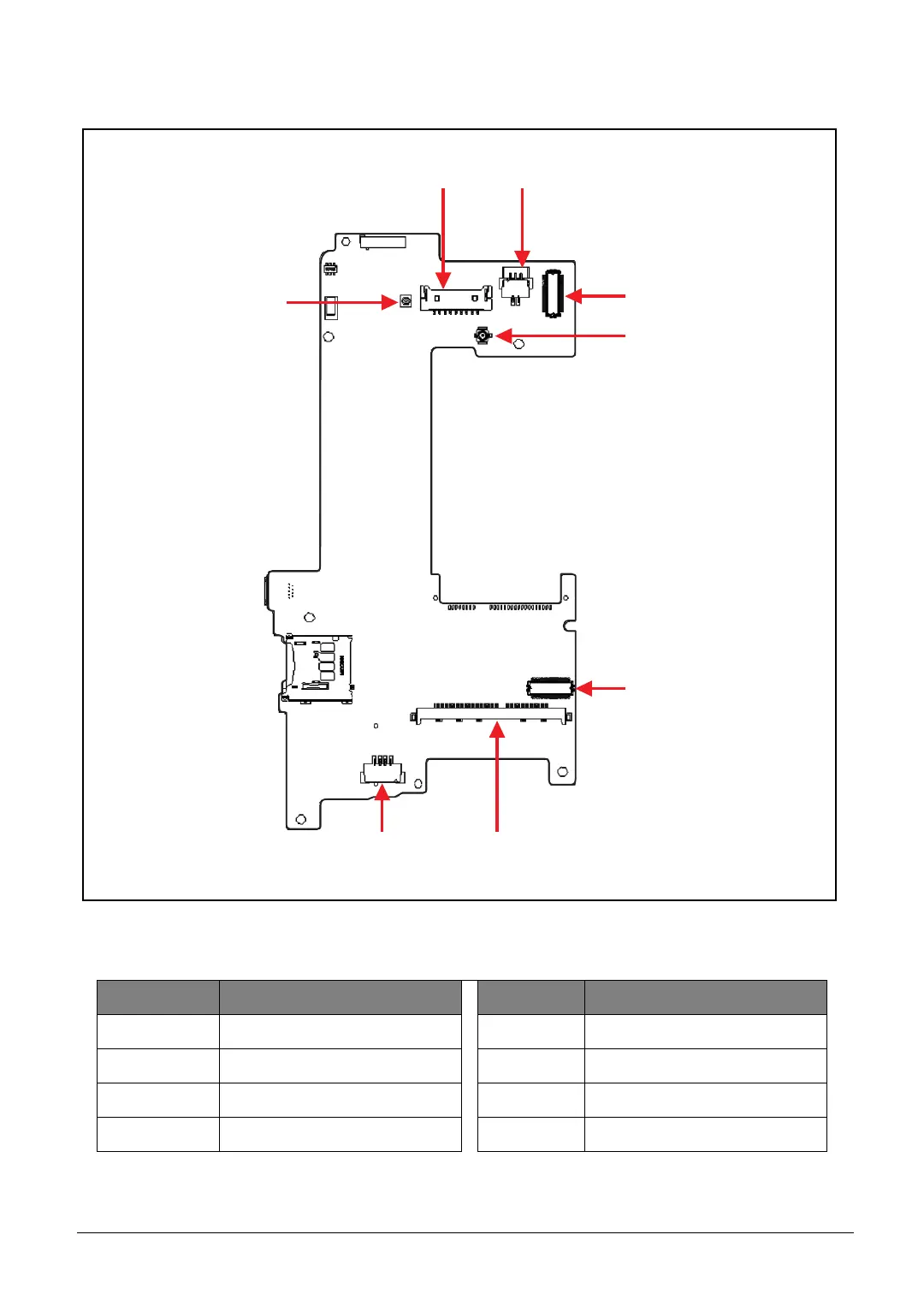

Figure 5:2. Mainboard Bottom
Table 5:2. Mainboard Bottom Jumper and Connectors
Item Description Item Description
WIFANT WLAN Antenna GPSANT GPS Antenna
PJP1 Battery Connector JDOCK1 Docking Board Connector
JMIC1 Microphone Connector JLVDS1 LVDS Connector
JCAM1 Camera Module Connector JSPK1 Speaker Connector
JSPK1 JLVDS1
PJP1
WIFANT
GPSANT
JCAM1
JDOCK1
JMIC1
