3-23 Service and Maintenance
Microphone (Front) Installation

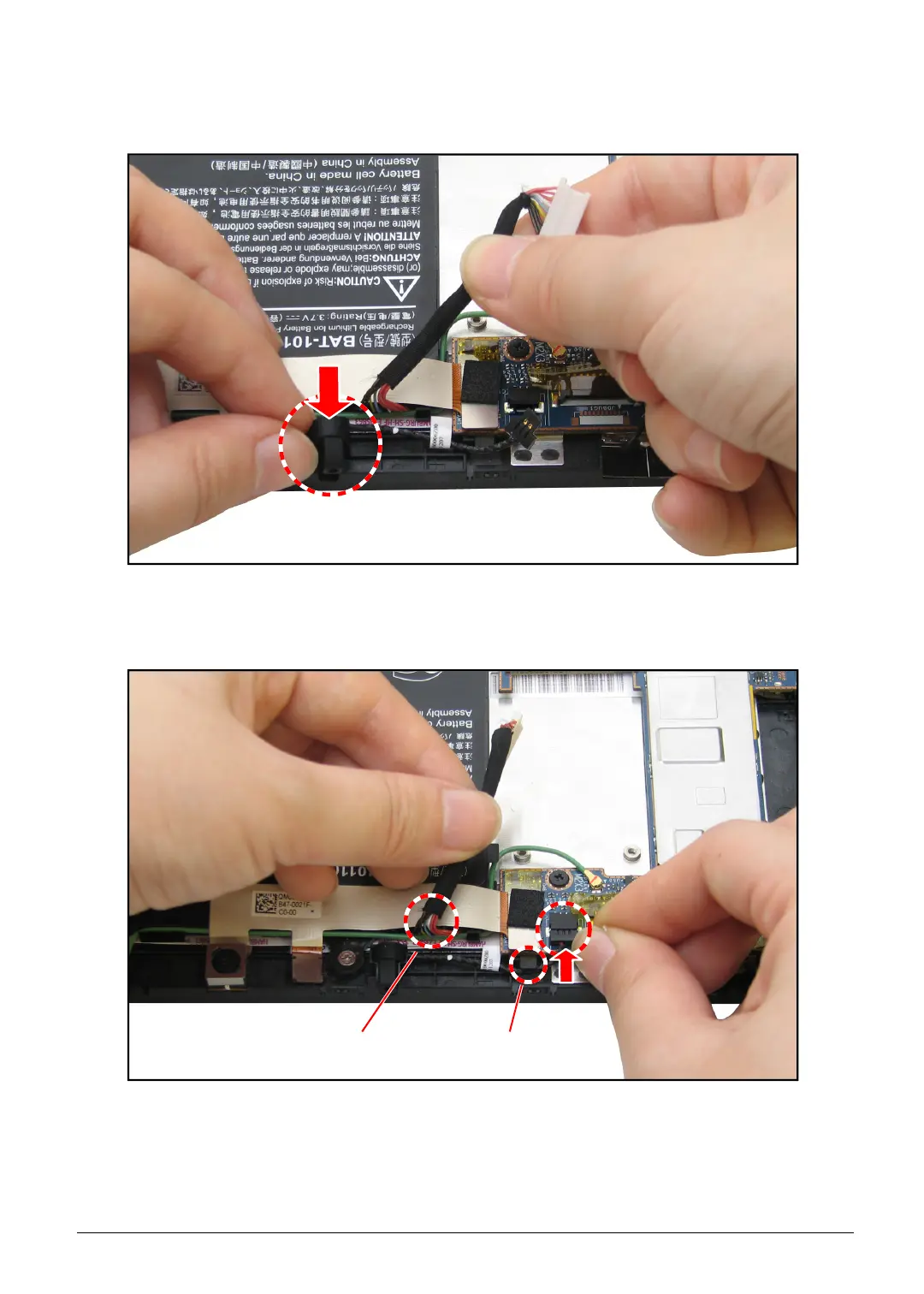

1. Install the microphone to the microphone slot of the bezel.
Figure 3:35. Installing the Front Microphone (1 of 2)
2. Route the microphone cable to pass underneath the battery cable (A) and the mainboard tab
(B). Then, connect the microphone cable connector to the mainboard connector.
Figure 3:36. Installing the Rear Microphone (2 of 2)
3. Install the lower case (see Lower Case Installation on page 3-16).
