Service and Maintenance
3-52
Speaker (Right) Removal
Prerequisite
:
T
ouch Control Board Removal
on page
3-42
1.
Disconnect the speaker cable connecto
r from the mainboard connector
.

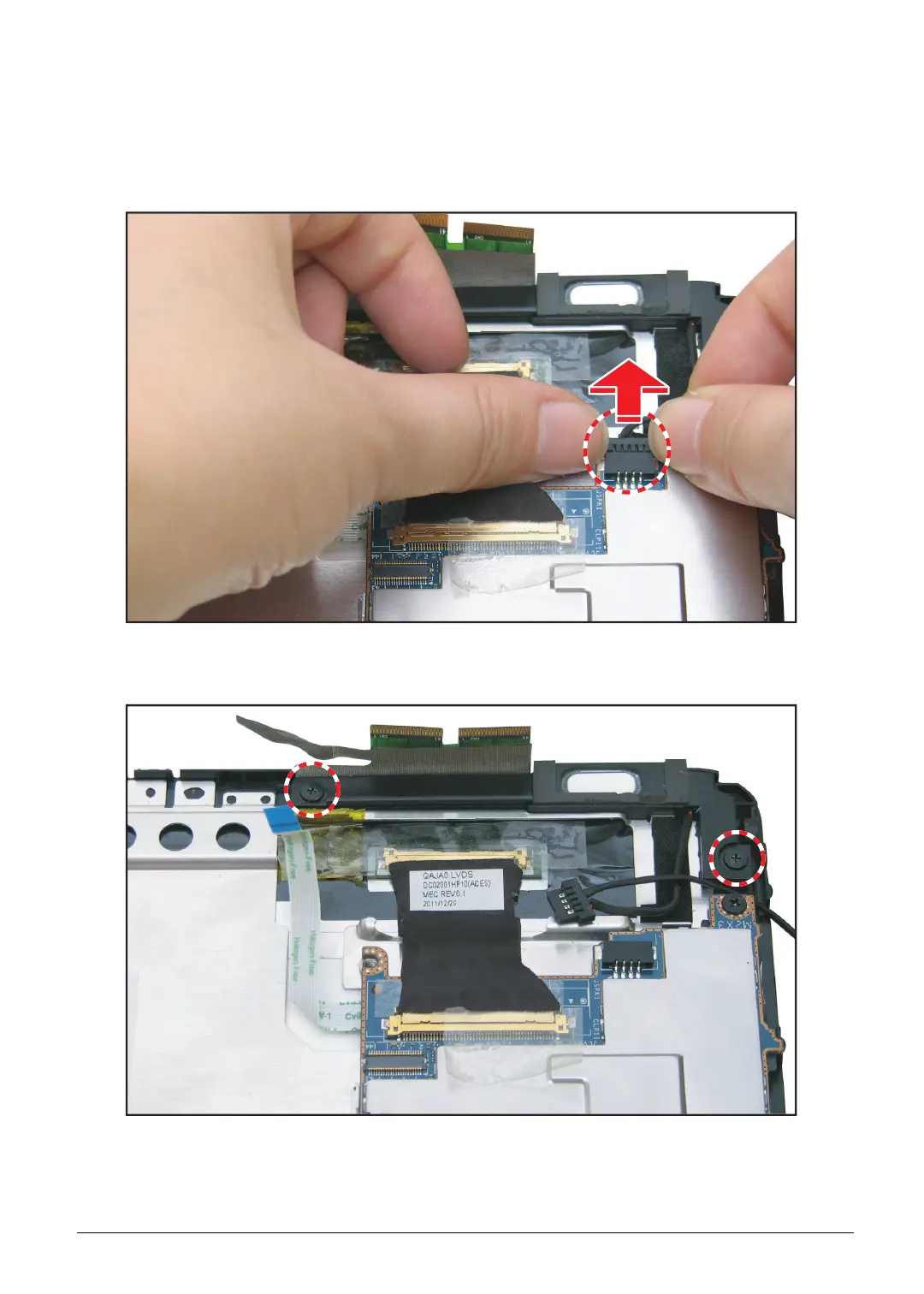

Figure 3:87. Disconnecting the S
peaker Cable
2.
Remove the screws securing th
e righ
t speaker to the beze
l.
Figure 3:88. Remo
ving the Right Speak
er Screws
