3-45 Service and Maintenance
Touch Control Board Installation
1. Align and place the touch control board to its slot. Push slightly to secure the adhesives on the
touch control board to the bezel.

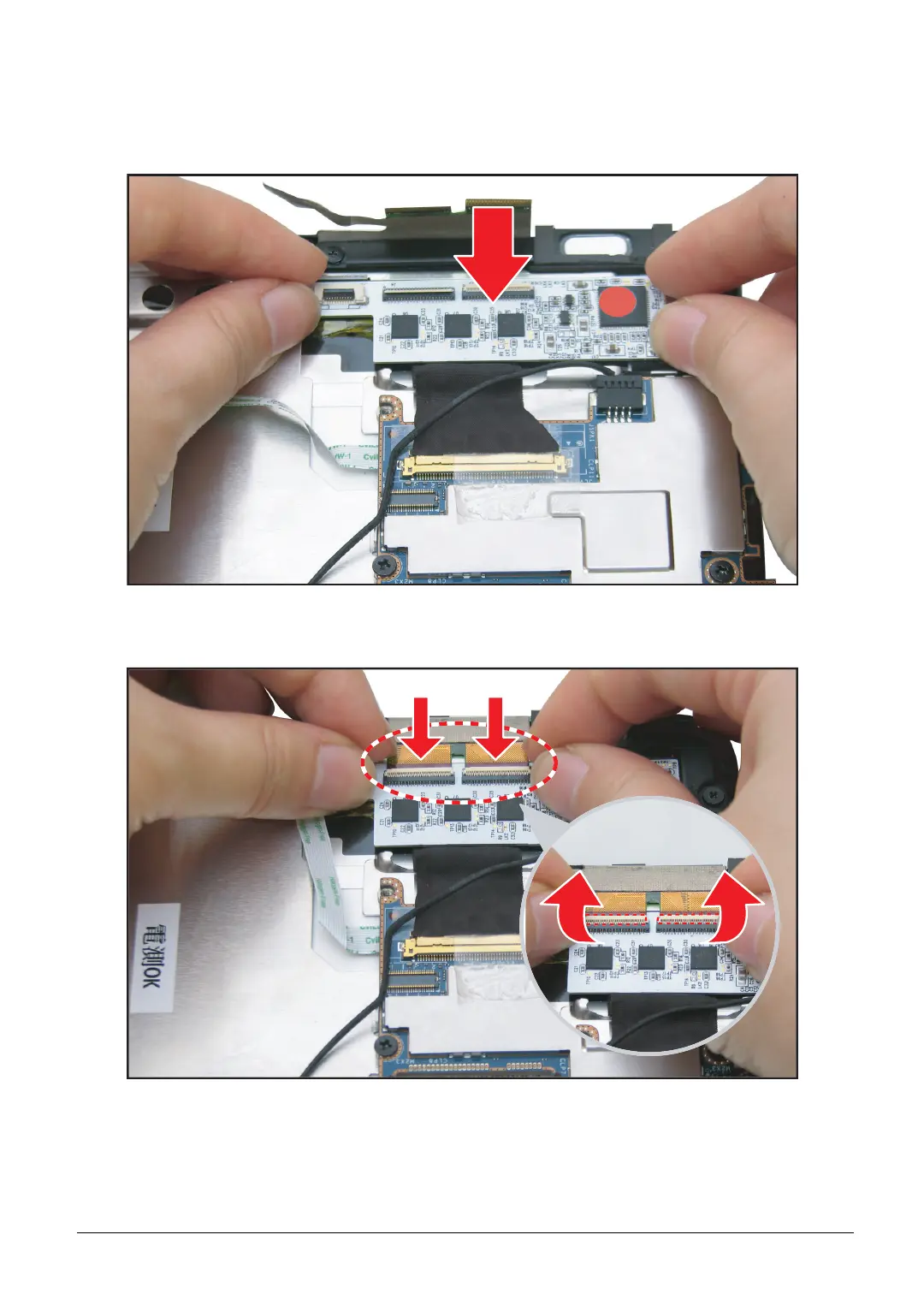

Figure 3:74. Installing the Touch Control Board
2. Connect the mylar touch control cable connectors to the connectors on the touch control board.
Figure 3:75. Connecting the Mylar Touch Control Cables
