Service and Maintenance
3-22
Microphone (Front) Removal
Prerequisite
Lower Case Removal
on pag
e
3-9

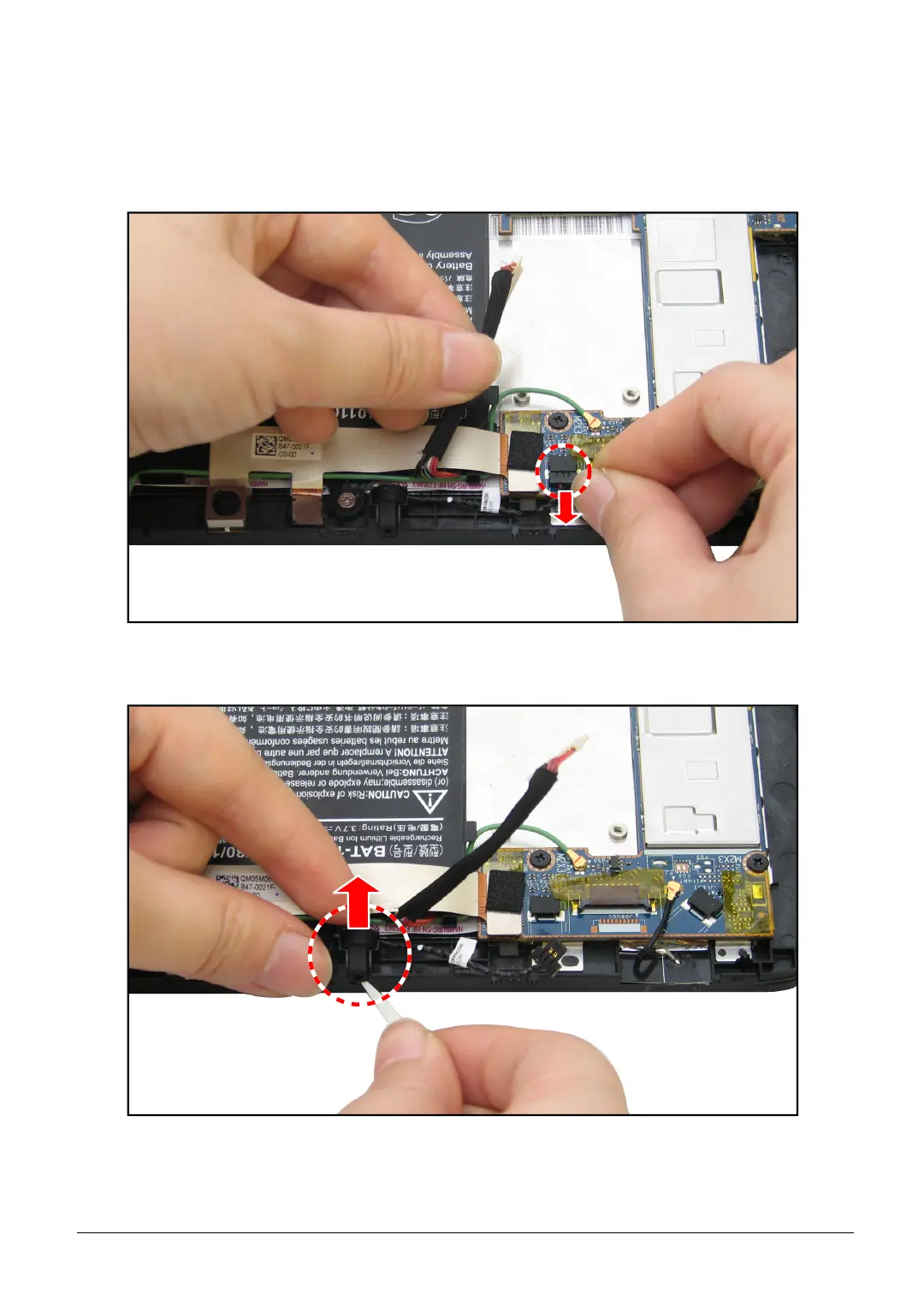

1.
Remove the microphone
cable connector from the mainboard
connector
.
Figure 3:33. Removing the Front Microph
one (1 of 2)
2.
Using the plastic pry
, push up to remove the microp
hone from the slot.
Figure 3:34. Removing the Front Microph
one (2 of 2)
62
64
