ALLEN & HEATH CQ-18T User Manual

 112
User Guide V1.1.0 Issue 1

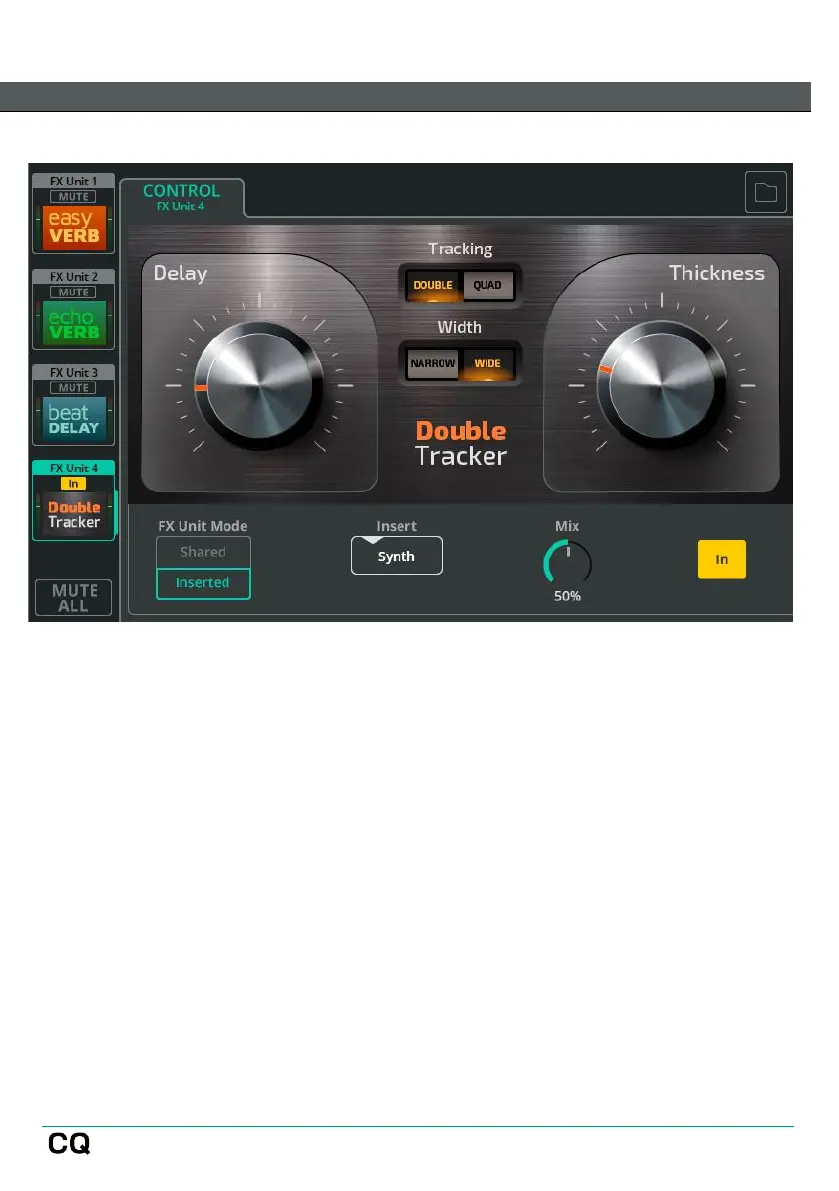

FX Model - Double Tracker
The Double Tracker recreates the classic studio effect of recording (or ‘tracking’)
the same source multiple times, where slight differences in each recording result in
a bigger, thicker sound.
Delay – Adjust the amount of delay between virtual take.
Thickness – Adjust how thick the resulting sound is.
Tracking – Select from DOUBLE (recorded twice) or QUAD (recorded four times)
Width - Select from NARROW (virtual takes are mostly in the centre) or WIDE
(different virtual takes are panned left or right).
 Width has no effect if Double Tracker is inserted into a mono channel.

ALLEN & HEATH CQ-18T Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	18 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Output impedance	75 Ω
Built-in display	Yes
Compatible memory cards	SD, SDHC
Master (XLR) out	2
Number of microphone inputs	18
Video capability	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	346 mm
Height	89 mm
Weight	3000 g
Package depth	310 mm
Package width	430 mm
Package height	200 mm
Package weight	3800 g
