ALLEN & HEATH CQ-18T User Manual

 101
User Guide V1.1.0 Issue 1

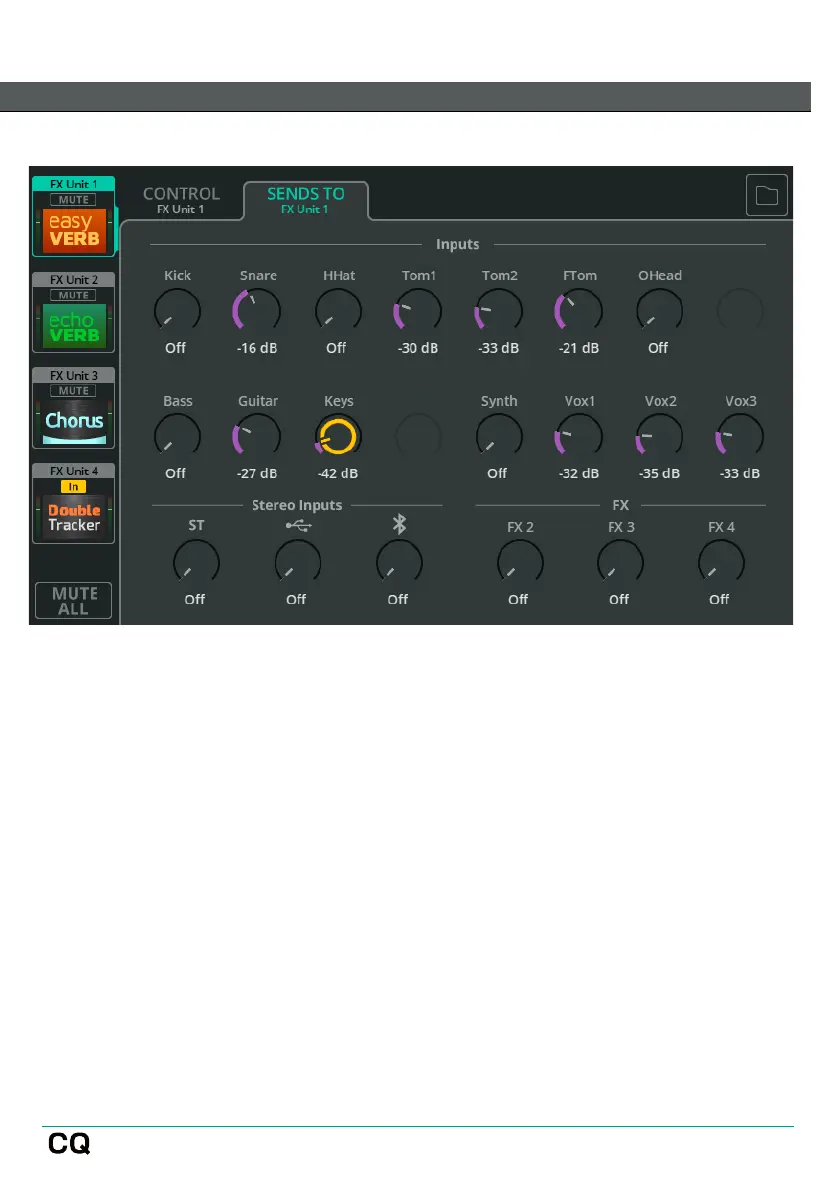

SENDS TO (Shared FX Units only)
When FX units are in Shared mode, use the SENDS TO tab to view and adjust
channel send levels to the selected FX unit.
These send levels are the same as can be found on each channel individually in the
PROCESSING / SENDS screen and can also be controlled using faders when this FX
Unit is selected using ‘Sends to’ in the FADER screen.

ALLEN & HEATH CQ-18T Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	18 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Output impedance	75 Ω
Built-in display	Yes
Compatible memory cards	SD, SDHC
Master (XLR) out	2
Number of microphone inputs	18
Video capability	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	346 mm
Height	89 mm
Weight	3000 g
Package depth	310 mm
Package width	430 mm
Package height	200 mm
Package weight	3800 g
