Preface

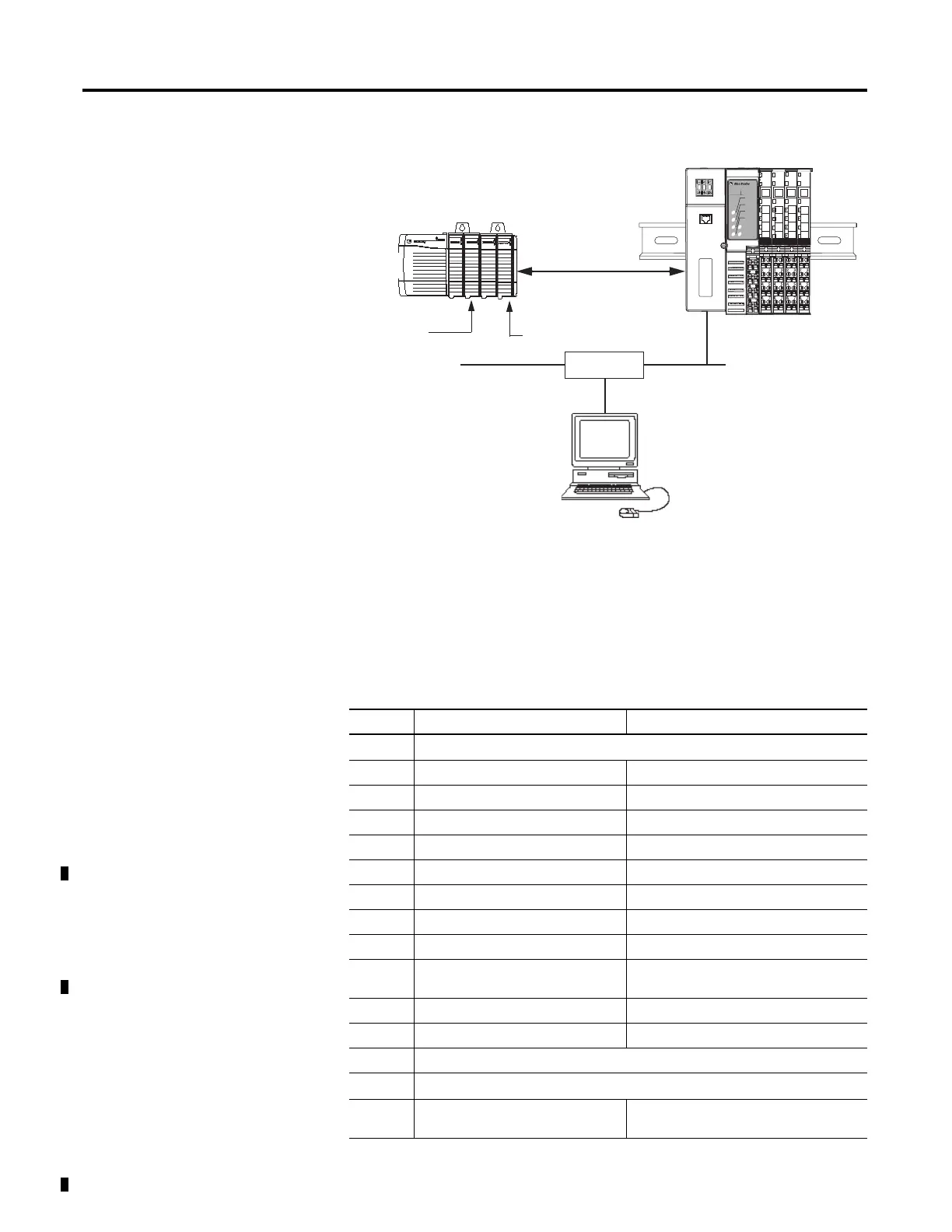

Here is the type of system you’ll be setting up.
System Components
We used the following components for the example applications. You need the
same or similar components to set up your own control system using POINT I/O
modules on an EtherNet/IP network.
Quantity Product Name Catalog Number
Hardware
1 POINT I/O EtherNet/IP adapter 1734-AENT
1 POINT I/O 24V DC sink output module 1734-OV4E/C
1 POINT I/O relay output module 1734-OW2/C
1 DIN rail 199-DR1 or equivalent
1 ControlLogix® chassis 1756-A4 (or 1756-A7, 1756-A13,1756-A17)
1 ControlLogix power supply 1756-PA72 (or 1756-PB72)
1 L63 controller 1756-L63
1 ControlLogix EtherNet/IP bridge module 1756-ENBT
1 Personal computer that supports
RSLogix 5000® software
Any appropriate model running Windows NT
4.0, Service Pack 6A or higher
1 Ethernet switch Refer to manufacturer’s specifications
1 24V DC power supply 1734-EP24DC
Associated media and connectors as needed
Software
1
RSLinx communications software,
version 2.31.00 or later
9355-WAB, 9355-WABOEM, 9355-WABC
31393
Local
chassis
POINT I/O
L63
controller (slot 1)
1756-ENBT
10.88.70.4 (slot 3)
Data
Switch
10.88.70.26
Programming
terminal
Slot 0 1 2 3
1734-AENT
10.88.70.2
Slot 0 1 2 3 4
02
0
1734-AENT Series B
Module
Status
Network
Activity
Network
Status
Point Bus
Status
System
Power
Field
Power
POINT I O
IP ADDRESS
