Allen-Bradley 1734 User Manual

72 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017
Chapter 5 Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software
7. Click OK to accept the configuration.

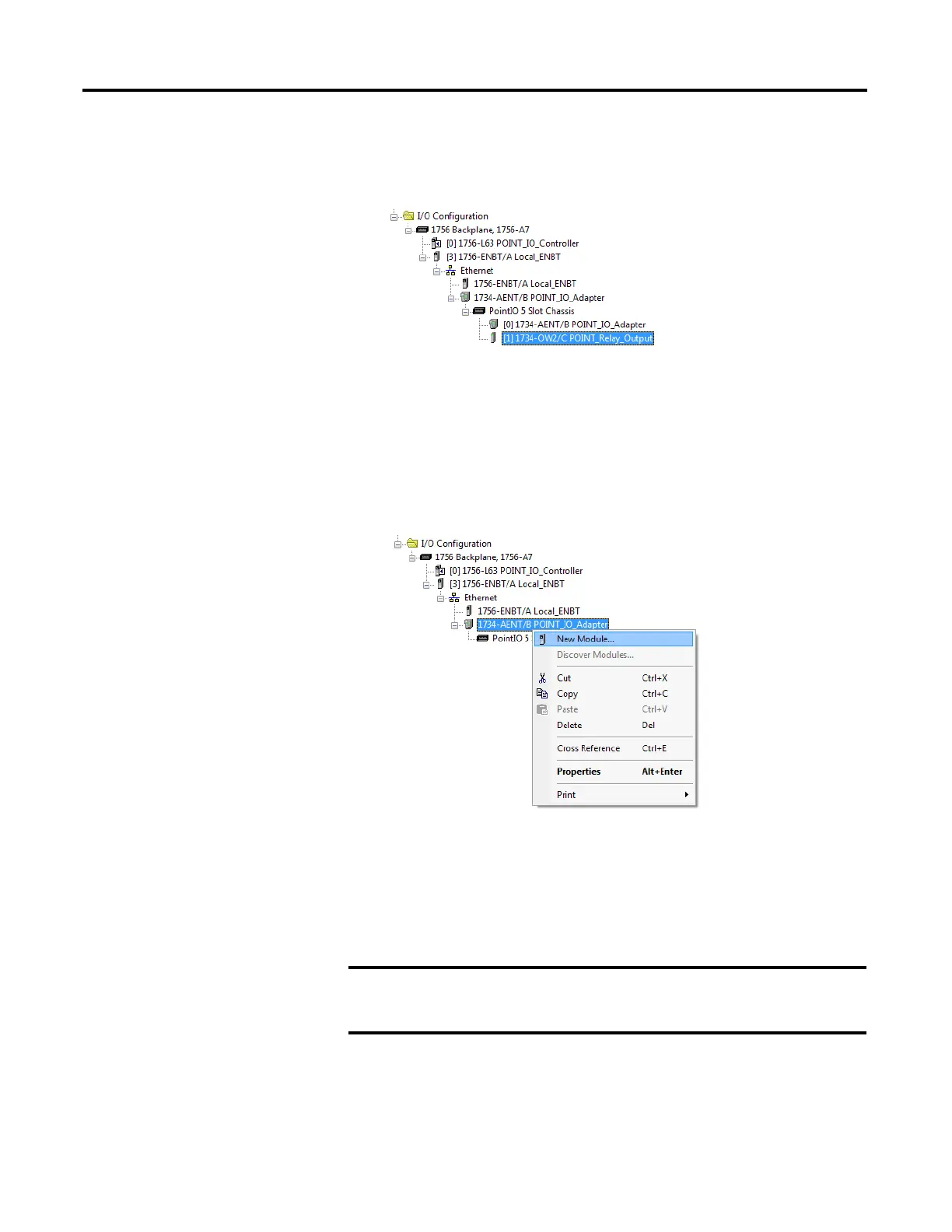

The digital input module appears indented under the local
1734-AENT/B adapter in the I/O Configuration folder.
Add the POINT I/O Module and Configure For Direct Connection
Add The Digital Sink Output Module
1. Right-click the POINT I/O Chassis in the I/O Configuration folder and
select New Module
.
The Select Module Type dialog opens.
2. Select the appropriate filter for Module Type Category (for the example we
selected Digital) and Module Type Vendor (for the example we selected
Allen-Bradley).
Note: to select only one category you will need to unselect those already
selected.
IMPORTANT
If you exceed the adapter chassis size trying to add more modules
than you configured, the New Module selection appears dim and is
disabled. Increase the adapter chassis size to add more I/O modules.

Allen-Bradley 1734 Specifications

General

Product Type	POINT I/O Adapter
Mounting	DIN Rail
Communication	EtherNet/IP
Operating Voltage	24V DC
Operating Temperature	-20°C to 55°C
Relative Humidity	5% to 95% (non-condensing)
Housing Material	Plastic
