Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 69
Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software Chapter 5
Add the POINT I/O Modules and Configure for Enhanced Rack-
optimization Connection
You must now add the POINT I/O modules to the I/O Configuration List
under the adapter. In this example, the digital input and output modules are
configured for enhanced rack optimization.
Add the Digital Relay Output Module

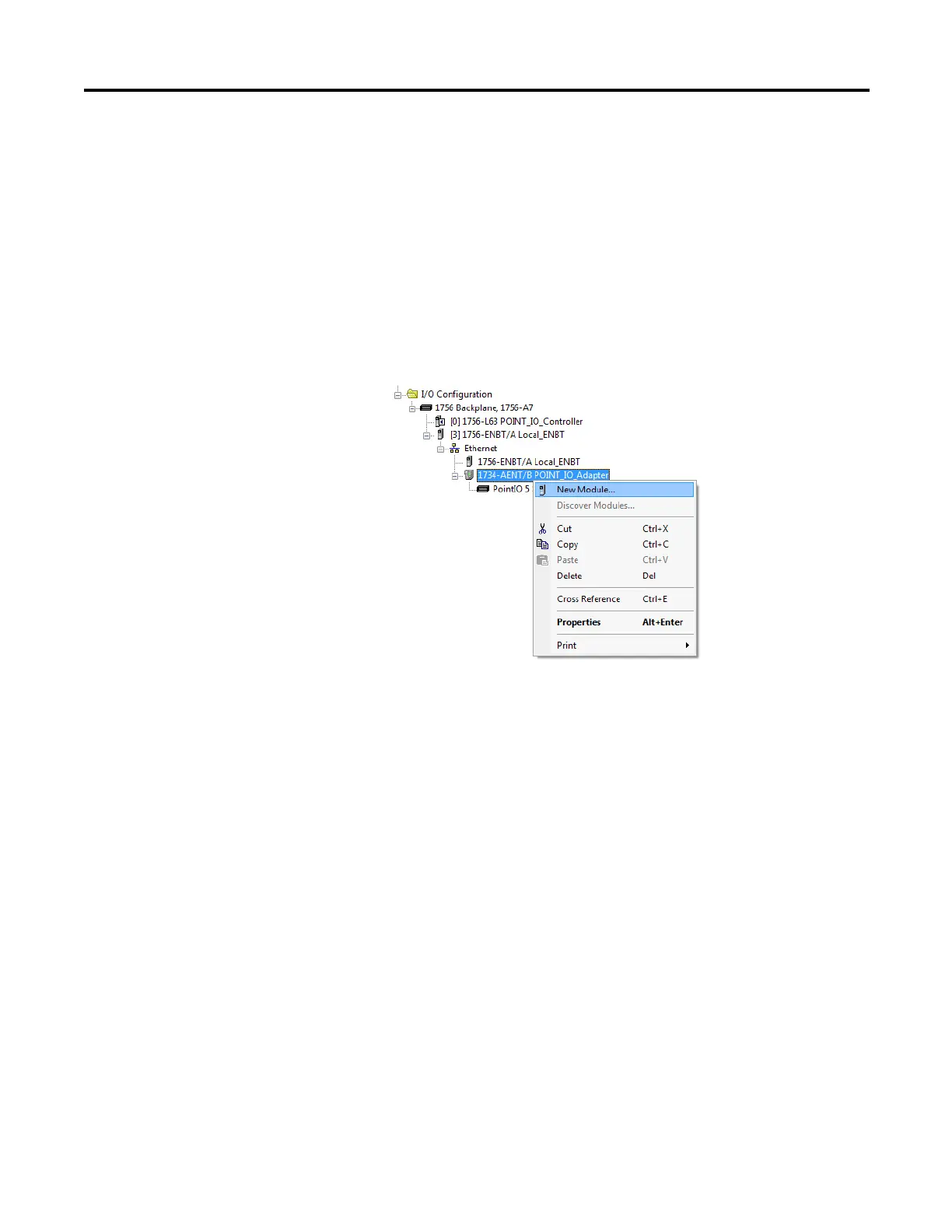

1. Right-click the POINT I/O Chassis in the I/O Configuration folder and
select New Module
…
The Select Module Type dialog displays.
2. Select the appropriate filter for Module Type Category (for the example we
selected Digital) and Module Type Vendor (for the example we selected
Allen-Bradley).
Note: to select only one category you will need to unselect those already
selected.
