Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 3
Overview of the 1734 POINT I/O EtherNet/IP Adapter Chapter 1
Physical Features of Your
Adapter
The 1734 Adapters have the following components:
• Removable Terminal Block (RTB);
• Network address Thumbwheel
• Connector (one RJ45 EtherNet/IP connector)
• Status indicators (Module Status; Network Status; POINTBus Status;
Network Activity; System Power; Field Power)

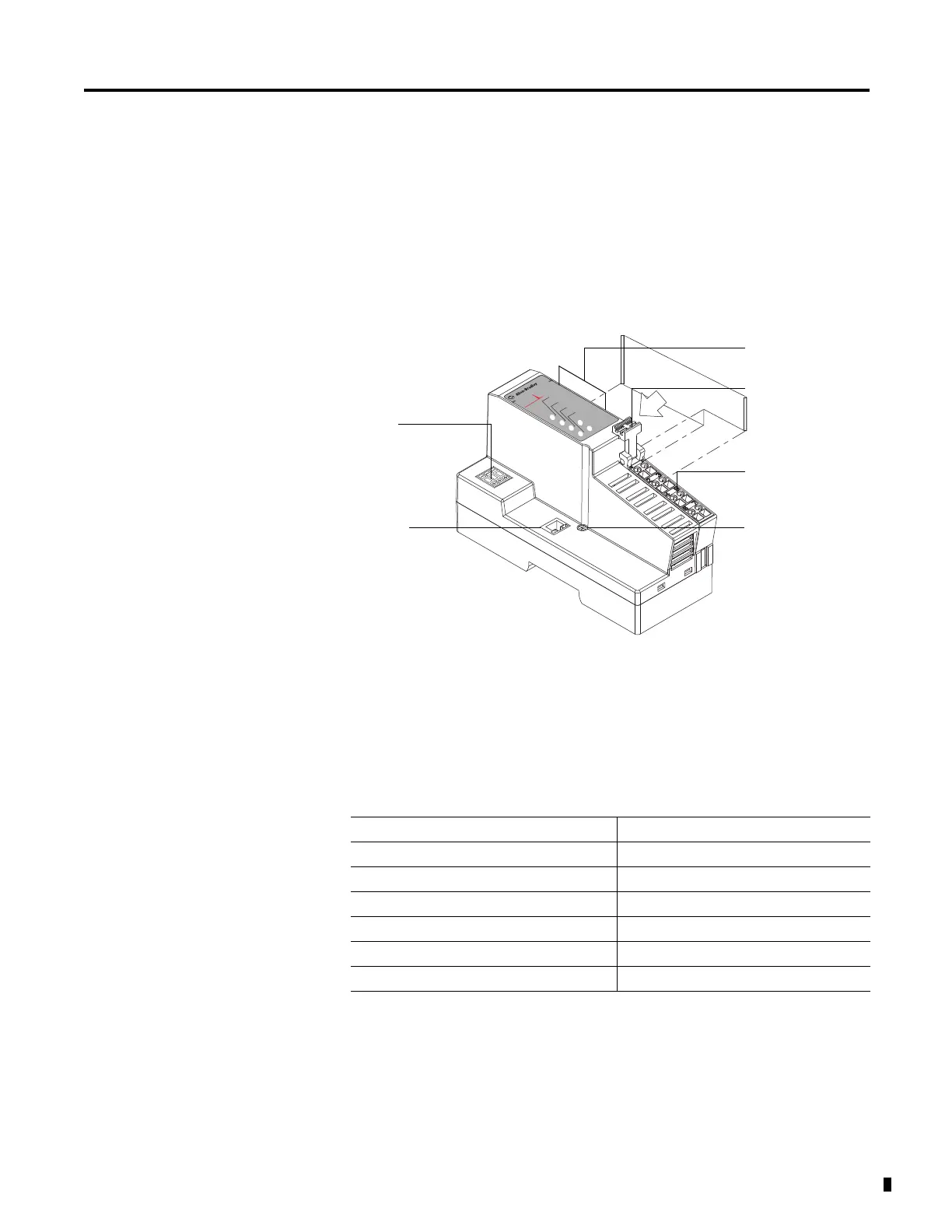

Physical Features of the 1734-AENT Series B Adapters
Hardware/Software
Compatibility
The I/O adapters and the applications described in this manual are compatible
with the following firmware revisions and software releases.
Contact Rockwell Automation if you need software or firmware upgrades to use
this equipment
Module
Status
Network
Activity
Network
Status
Point Bus
Status
System
Power
Field
Power
POINT I O
1734-AENT Series B
02
0
31533
Status indicators
RTB removal handle
DIN rail locking screw
(orange)
Network
address
thumbwheel
EtherNet
network
RJ45
connector
Removable Terminal
Block (RTB)
Product Firmware Revision/ Software Release
(2)
(2) Installation of the Add-on Profile (AOP) for the adapter is required.
1734-AENT Series B adapter 4.002 or later
1756-ENBT module 4.006 or later
1768-ENBT module 2.003 or later
Logix controller 17 or later
RSLogix 5000 software
(1)
(1) From version 21 onwards, RSLogix 5000 is known as Logix Designer.
17 or later
RSLinx software 2.56 or later

Allen-Bradley 1734 Specifications

General

Brand	Allen-Bradley
Model	1734
Category	Adapter
Language	English
