Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software Chapter 4
Edit the Controller Tags
When you add modules to the I/O configuration the system creates tags for those
modules to use in the application program.
For the example application you need to add one more controller tag.

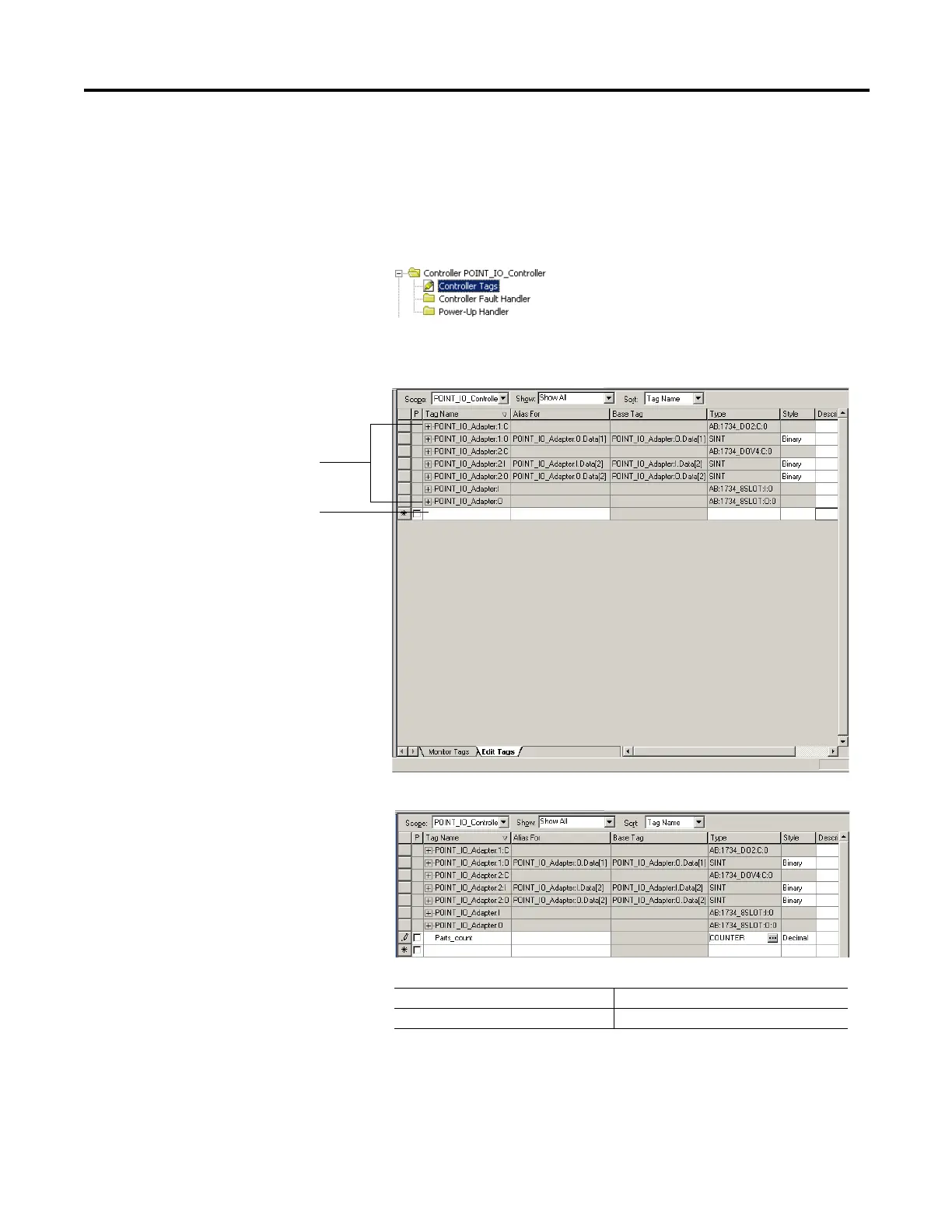

1. Double-click the Controller Tags folder in the project dialog.
The Controller Tags dialog opens. You see the tags created for the
1734-AENT adapter and its digital I/O modules.
2. Click the Edit Tags tab at the bottom of the Controller Tags dialog.
3. Create the following tag:
4. Close the Controller Tags dialog.
Tags created by the system
Enter the new tag here
Tag Type
Parts_Count Counter
