Adapter Web Dialogs Appendix B
– Allen-Bradley logo at the top of the page
– Visit
ab.com for additional information statement under Resources
• Click Rockwell Automation at the top right to go to
www.rockwellautomation.com
.
• Click the following to see additional diagnostics web pages.
– Diagnostics - Diagnostic overview, Network Settings,
Ethernet Statistics, I/O Connections, Advanced Diagnostics
– Configuration - Identity, Network, Services
– Browse Chassis
Work with the Diagnostics
Pages
To work with the Diagnostics options, follow these procedures.
1. From the Home page, click Diagnostics or Expand to see the following
diagnostics options from the panel at the left.
• Diagnostic overview
• Network settings
• Ethernet statistics
• I/O connections
• Advanced Diagnostics
2. In the Refresh Rate field, you can type a refresh rate, noting that the default
rate is 15 seconds.
3. From the panel at the left or tabs at the top of the page, click one of the
diagnostics options to see the corresponding page
.

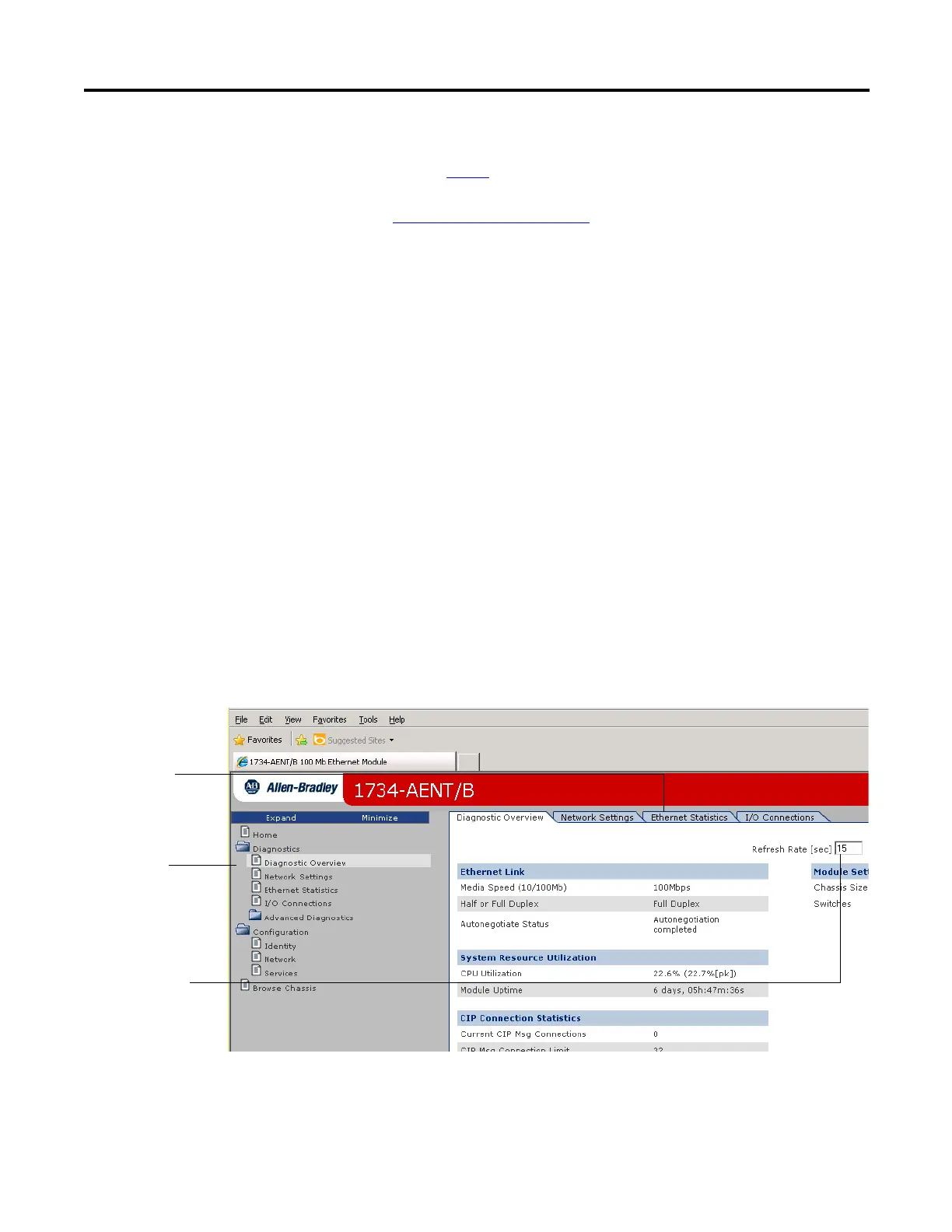

Type a refresh rate.
Click tabs to see
the corresponding
page.
Click from this
panel to see the
corresponding
page.
